Yancheng Bingo Machinery Equipment Co., Ltd.

Model BG-534130-CT

53L Collapsible Plastic Tote Box

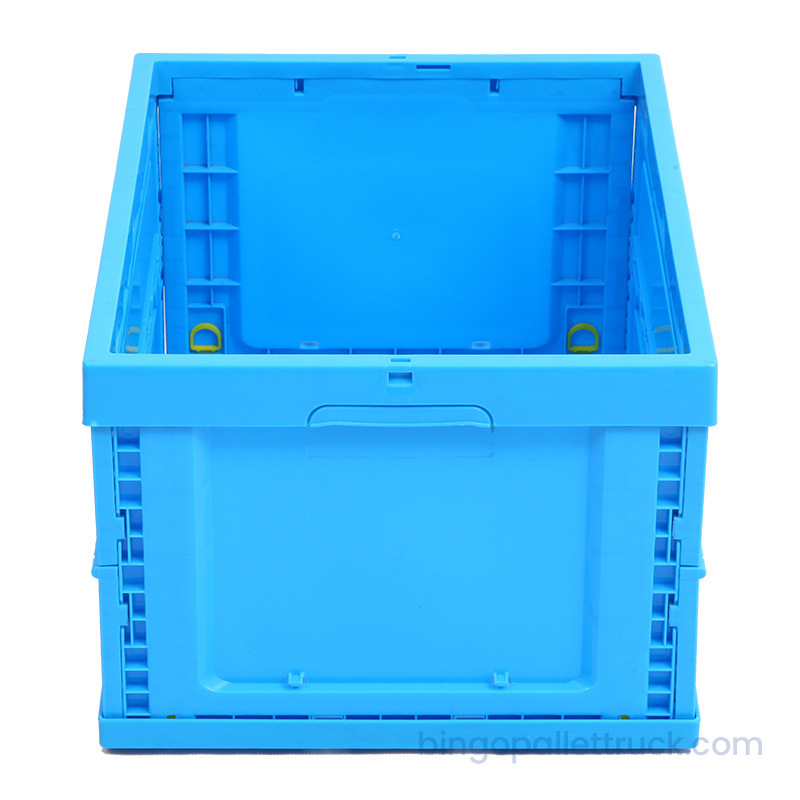

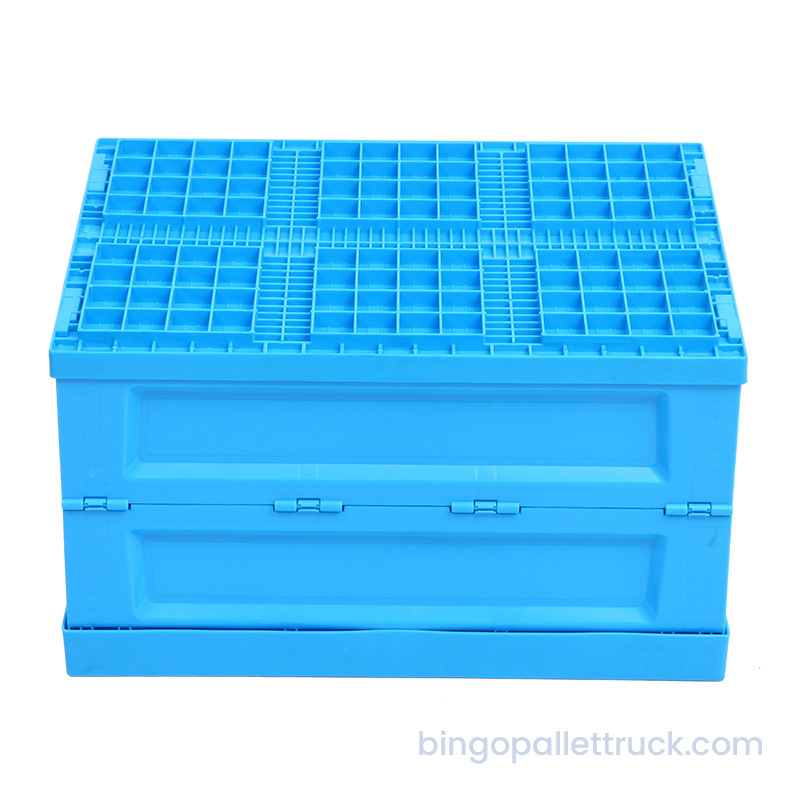

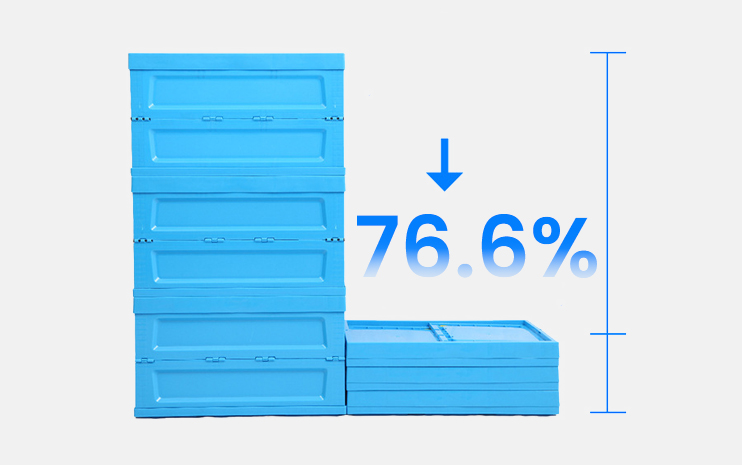

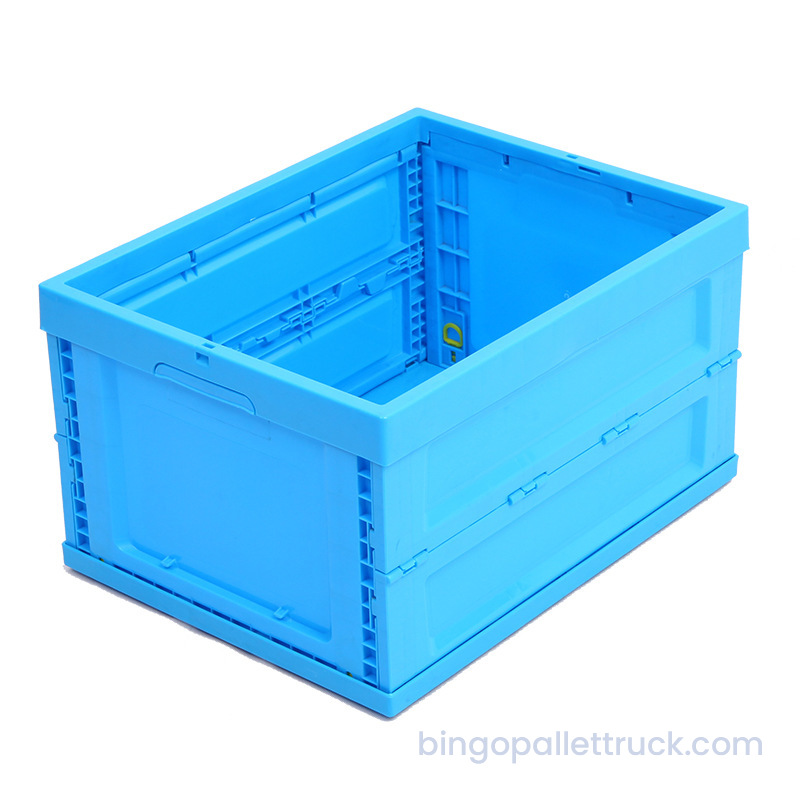

This 53L collapsible plastic tote is a reliable storage solution for industrial and commercial use. It is made of durable PP material to ensure strong load-bearing capacity and long service life. The plastic tote has external dimensions of 530×410×300mm and internal dimensions of 495×375×285mm. It folds flat to just 70mm in height with a 76.6% folding ratio, significantly reducing storage space and logistics costs. Its reinforced structure supports stable stacking during storage and transit. This versatile foldable plastic tote is widely used in warehouses, e-commerce fulfillment, retail supply chains and daily organization.

Characteristics：

Item	Details
Model	BG-534130-CT
Material	PP
External Dims. (L×W×H)	530×410×300mm
Internal Dims. (L×W×H)	495×375×285mm
Weight	2.28kg
Capacity	53L
Folded Height	70mm
Fold Ratio	76.60%

You are here: Products / Plastic Totes, Crates & Containers / 53L Collapsible Plastic Tote Box

Request a Quote

Our Advantages

a Available in Multiple Colors & Full Range of Specifications
Heavy-Duty Collapsible Plastic Tote Box Collapsible & Space-Saving, Large Capacity, Easy to Load & Unload, High Load-bearing Capacity, Nestable & Stacking
b Humanized Foldable Design
Effectively saves storage and transportation space, reducing logistics and transportation costs.
c High Strength & Heavy Load Capacity
Load-bearing tests show that our foldable crates can support over 120kg under high-strength stress.
d Locally Replaceable, Cost-Effective
If damaged, only the broken parts need to be replaced, reducing replacement costs.

1、Long Side Panel 2、Base 3、Short Side Panel 4、Pin Shaft 5、Latch
6、Label Card 7、Upper Frame 8、Long Side Panel

Modular Design — No need to discard the entire crate if partially damaged; just replace the corresponding parts to effectively reduce enterprise usage costs.
e Product Details

Pin Shaft Design
The box body is connected with a pin shaft. Latch Fixing Design
Latches are integrated into the short panels.

f Product Details

Security Lock Hole Design
Can be sealed with cable ties or combination locks to protect your products during transportation.

Label Card Slot Design
Label card slots are added to the short panels, facilitating the storage, classification, and identification of goods later on.

g Easy to Use & Simple to Operate

Opening Process

Folding Process
h In Stock & Ready to Ship

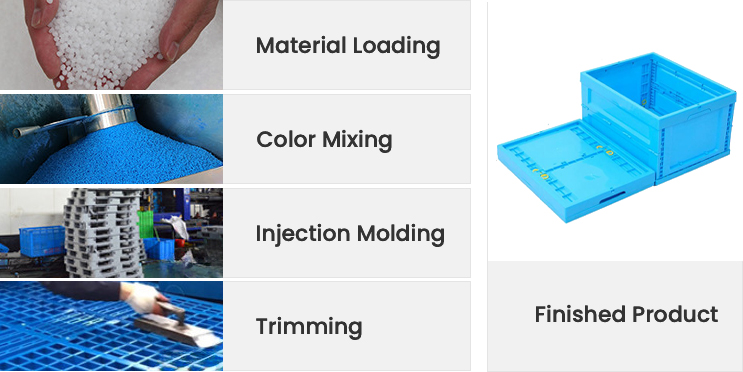

i Strict Quality Control at Every Stage
Manufactured using high-density PP virgin material. We implement strict quality control from raw material sourcing to production, with inspections at every stage to ensure every product meets our high standards.
j Standardized Processes & Strict Standards
Our production follows streamlined and standardized processes to ensure we deliver only qualified products that meet strict standards.
k Our Equipment
