Yancheng Bingo Machinery Equipment Co., Ltd.

Model BG-534125-CCL

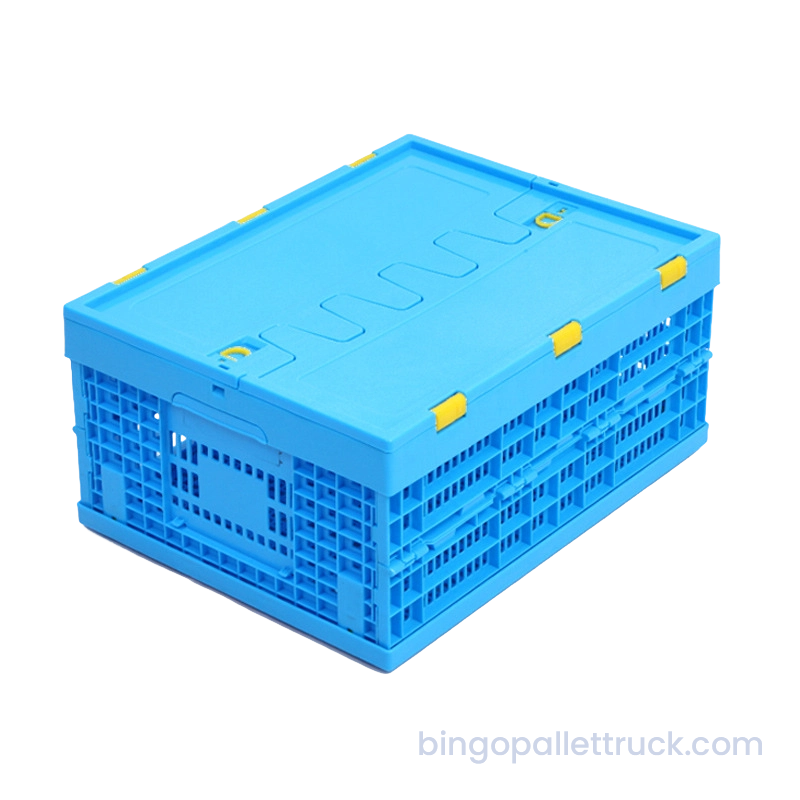

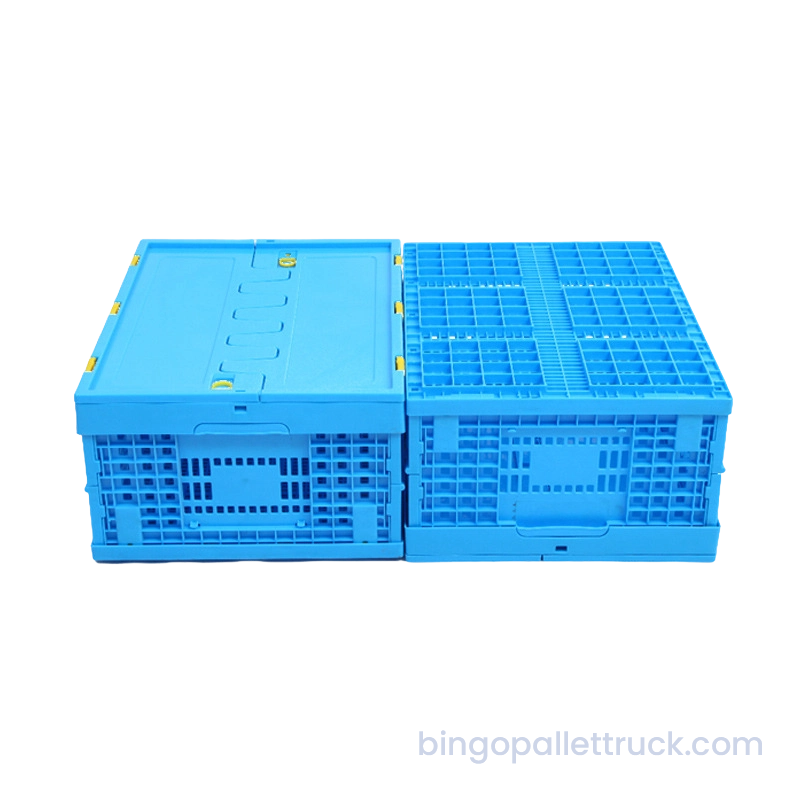

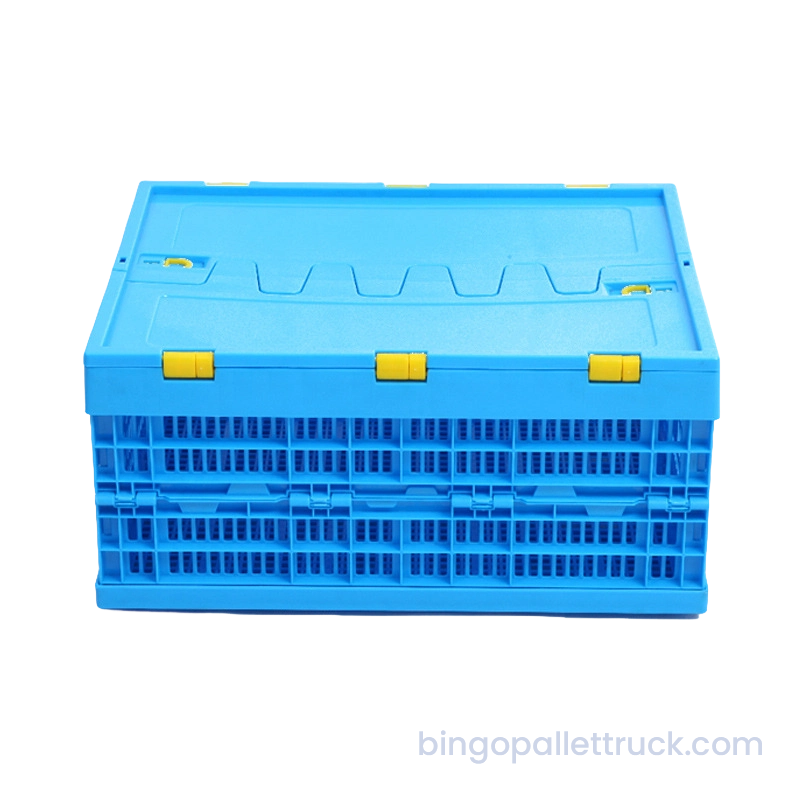

42L Collapsible Plastic Crate with Lid

Our 530×410×250mm collapsible plastic crate with lid is a high-performance solution engineered for industrial logistics and warehouse management. Crafted from premium impact-resistant PP material, it delivers a 42L large working capacity with internal dimensions 495×375×225mm to safely store and transport bulk goods, with an integrated secure lid for dust-proof and moisture-proof protection. Boasting a 66% folding ratio, it collapses from 250mm to just 80mm when idle, drastically cutting storage space and return shipping costs. Weighing only 2.43kg, this lightweight yet stackable crate is durable, reusable, and ideal for e-commerce fulfillment centers, distribution hubs, and industrial operations.

Characteristics：

Model	BG-534125-CCL
Material	PP
External Dims. (L×W×H)	530×410×250mm
Internal Dims. (L×W×H)	495×375×225mm
Weight	2.43kg
Capacity	42L
Folded Height	80mm

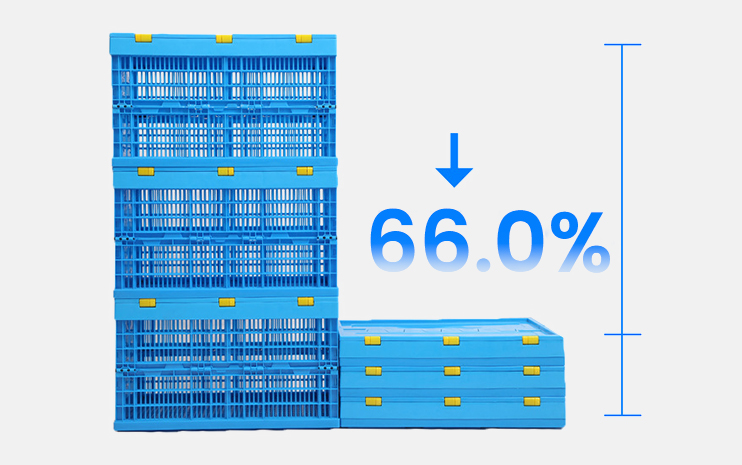

Fold Ratio	66%

You are here: Products / Plastic Totes, Crates & Containers / 42L Collapsible Plastic Crate with Lid

Request a Quote

Our Advantages

a Various Colors & Full Specifications
Collapsible, Space-Saving, Large Capacity, Easy to Handle, High Load Capacity
b Humanized Foldable Design
Effectively saves storage and transportation space, reducing logistics and transportation costs.
c High Strength & Heavy Load Capacity
Load-bearing tests show that our foldable crates can support over 120kg under high-strength stress.
d Locally Replaceable, Cost-Effective
If damaged, only the broken parts need to be replaced, reducing replacement costs.

1、Long Side Panel 2、Short Side Panel 3、Base 4、Hinged Access Door 5、Pin Shaft
6、Lock Pin 7、Latch 8、Label Card 9、Upper Frame 10、Modular design

Modular Design — No need to discard the entire crate if partially damaged; just replace the corresponding parts to effectively reduce enterprise usage costs.
e Product Details

Pin Shaft Design
The box body is connected with a pin shaft. Latch Fixing Design
Latches are integrated into the short panels.

f Product Details

Security Lock Hole Design
Can be sealed with cable ties or combination locks to protect your products during transportation.

Label Card Slot Design
Label card slots are added to the short panels, facilitating the storage, classification, and identification of goods later on.

g Easy to Use & Simple to Operate

Opening Process

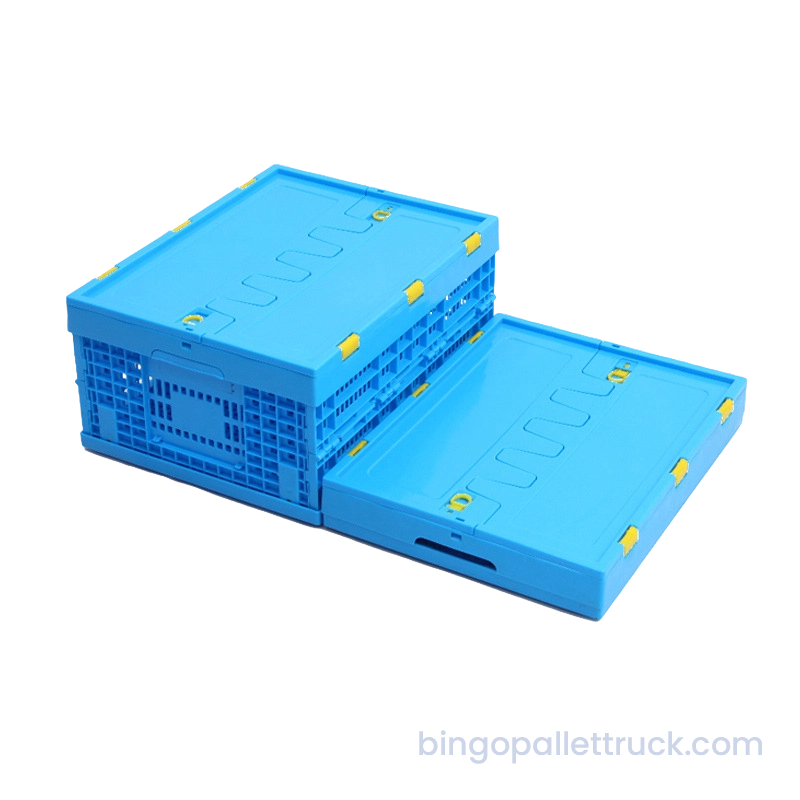

Folding Process
h In Stock & Ready to Ship

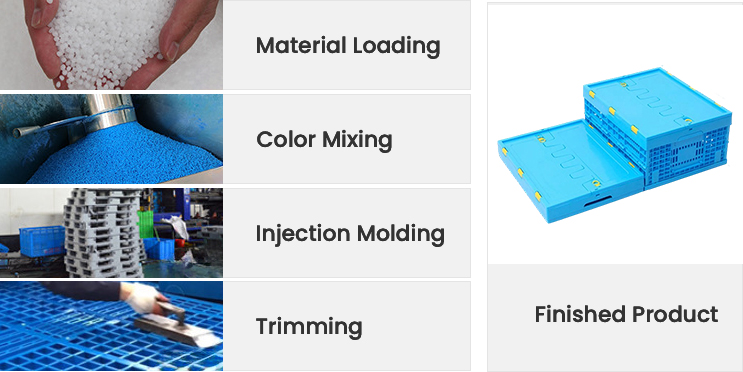

i Strict Quality Control at Every Stage
Manufactured using high-density PP virgin material. We implement strict quality control from raw material sourcing to production, with inspections at every stage to ensure every product meets our high standards.
j Standardized Processes & Strict Standards
Our production follows streamlined and standardized processes to ensure we deliver only qualified products that meet strict standards.
k Our Equipment
