Model BG-604020-CCL

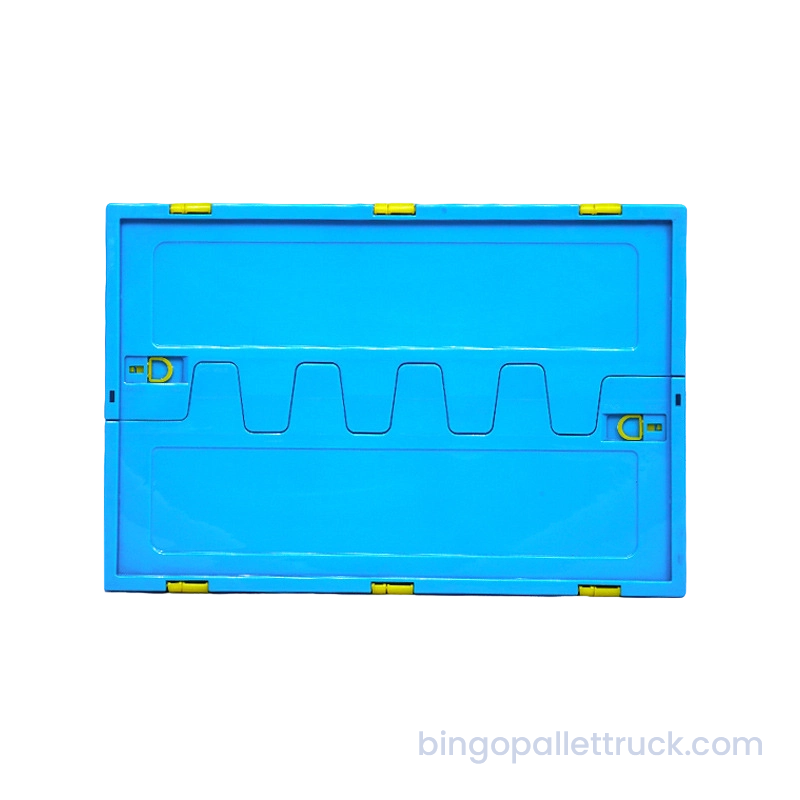

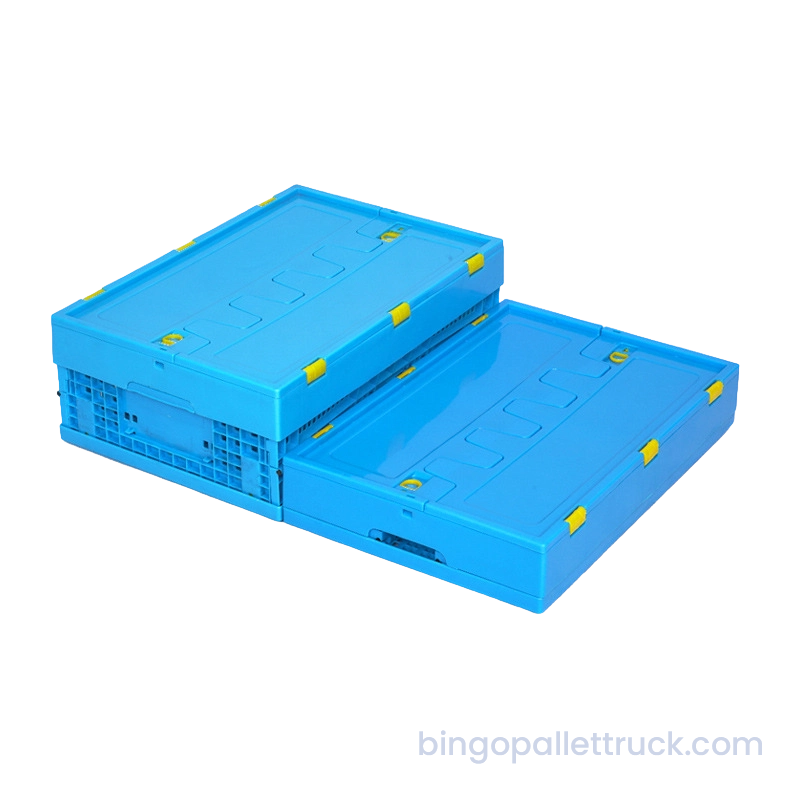

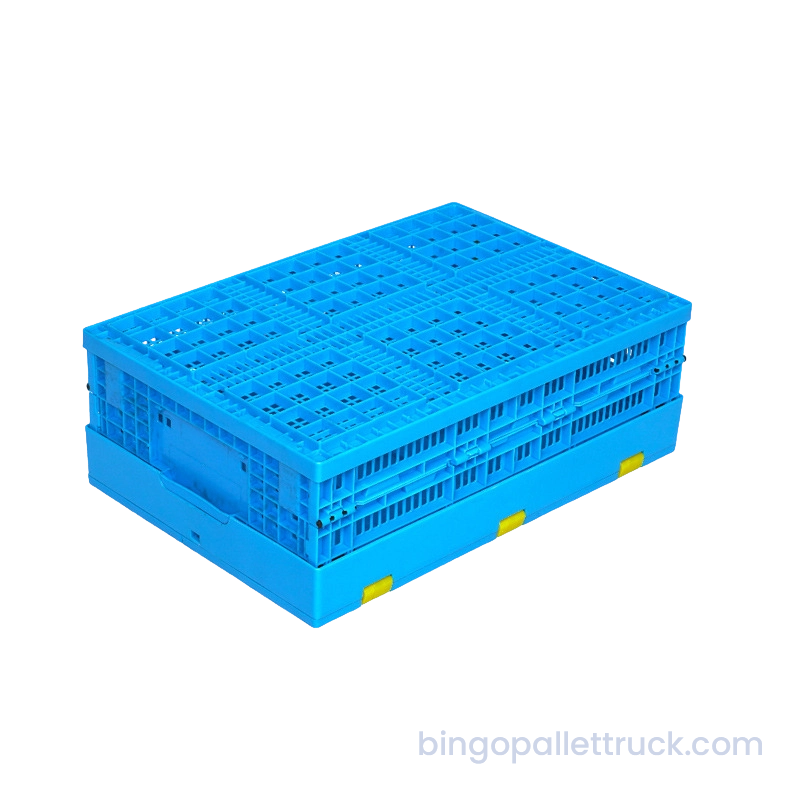

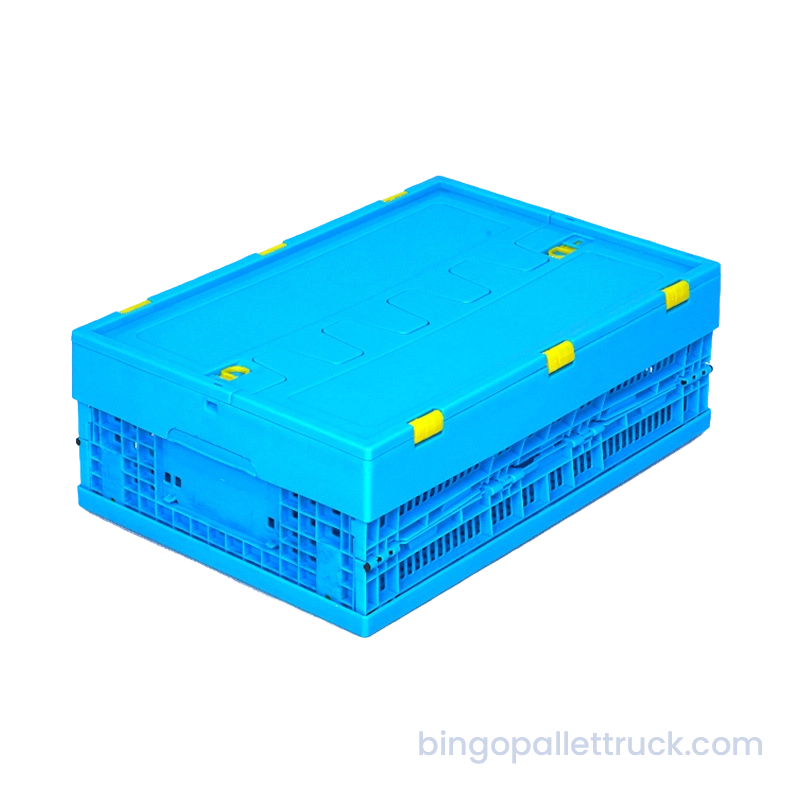

36L Collapsible Plastic Crate with Lid for Industrial Logistics

This 600×400×205mm collapsible plastic crate with lid is designed for heavy-duty industrial logistics applications. Manufactured from high-impact, food-grade PP resin, it provides a 36L nominal volume with internal dimensions 560×360×180mm and a 51.2% folding ratio, reducing the folded height to 100mm for efficient empty storage and reverse logistics. The integrated lid ensures secure containment, dust and moisture protection for transported goods. With a net weight of 2.47kg, the crate features a reinforced stackable structure, making it durable, reusable, and optimized for warehouse storage, cold chain, and distribution operations.

Characteristics：

Model BG-604020-CCL
Material PP
External Dims. (L×W×H) 600×400×205mm
Internal Dims. (L×W×H) 560×360×180mm
Weight 2.47kg
Capacity 36L

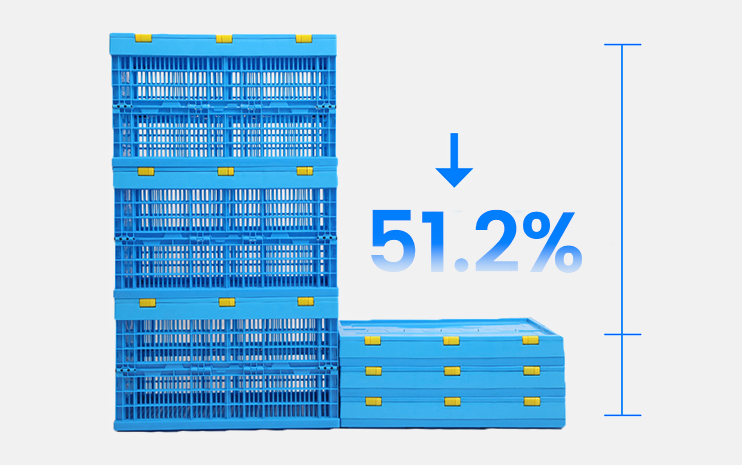

Folded Height 100mm
Fold Ratio 51.2%

You are here: Products / Plastic Totes, Crates & Containers / 36L Collapsible Plastic Crate with Lid for Industrial Logistics

Request a Quote
Our Advantages
  • a Various Colors & Full Specifications
    Collapsible, Space-Saving, Large Capacity, Easy to Handle, High Load Capacity

  • b Humanized Foldable Design
    Effectively saves storage and transportation space, reducing logistics and transportation costs.
  • c High Strength & Heavy Load Capacity
    Load-bearing tests show that our foldable crates can support over 120kg under high-strength stress.
  • d Locally Replaceable, Cost-Effective
    If damaged, only the broken parts need to be replaced, reducing replacement costs.



    1、Long Side Panel    2、Short Side Panel    3、Base    4、Hinged Access Door    5、Pin Shaft
    6、Lock Pin    7、Latch    8、Label Card    9、Upper Frame    10、Modular design

    Modular Design — No need to discard the entire crate if partially damaged; just replace the corresponding parts to effectively reduce enterprise usage costs.
  • e Product Details

    Pin Shaft Design
    The box body is connected with a pin shaft.    		 Latch Fixing Design
    Latches are integrated into the short panels.
  • f Product Details

    Security Lock Hole Design
    Can be sealed with cable ties or combination locks to protect your products during transportation.    		 Label Card Slot Design
    Label card slots are added to the short panels, facilitating the storage, classification, and identification of goods later on.

  • g Easy to Use & Simple to Operate

    Opening Process


    Folding Process
  • h In Stock & Ready to Ship

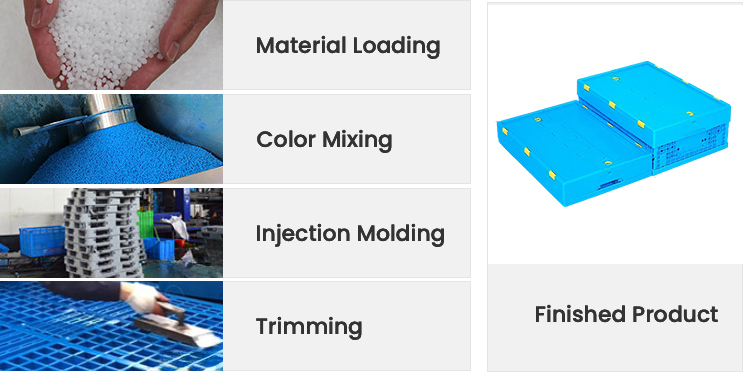

  • i Strict Quality Control at Every Stage
    Manufactured using high-density PP virgin material. We implement strict quality control from raw material sourcing to production, with inspections at every stage to ensure every product meets our high standards.
  • j Standardized Processes & Strict Standards
    Our production follows streamlined and standardized processes to ensure we deliver only qualified products that meet strict standards.
  • k Our Equipment
