Yancheng Bingo Machinery Equipment Co., Ltd.

CQDA15E｜CQDA20E

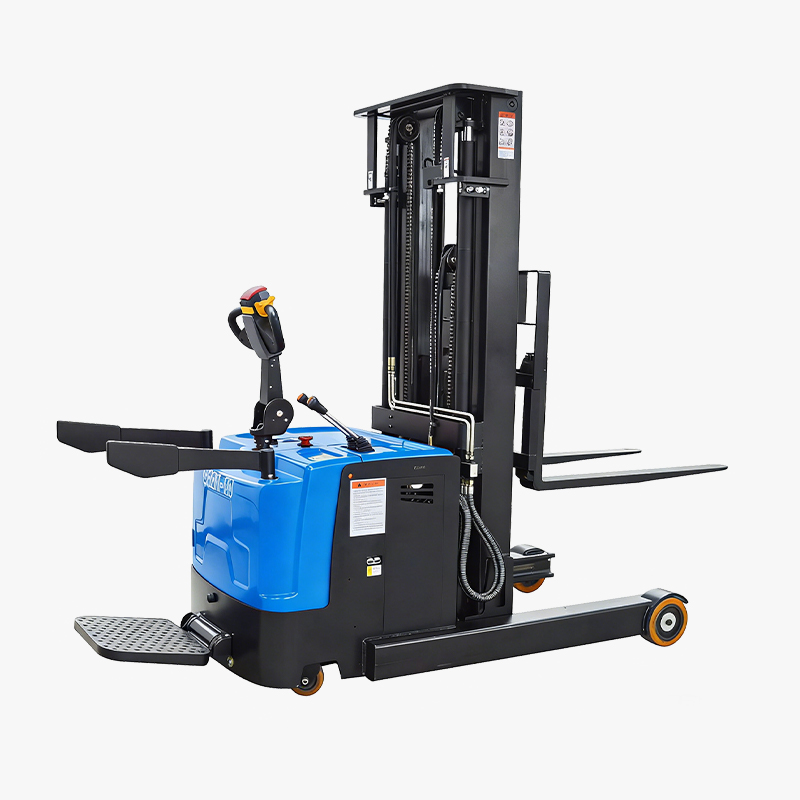

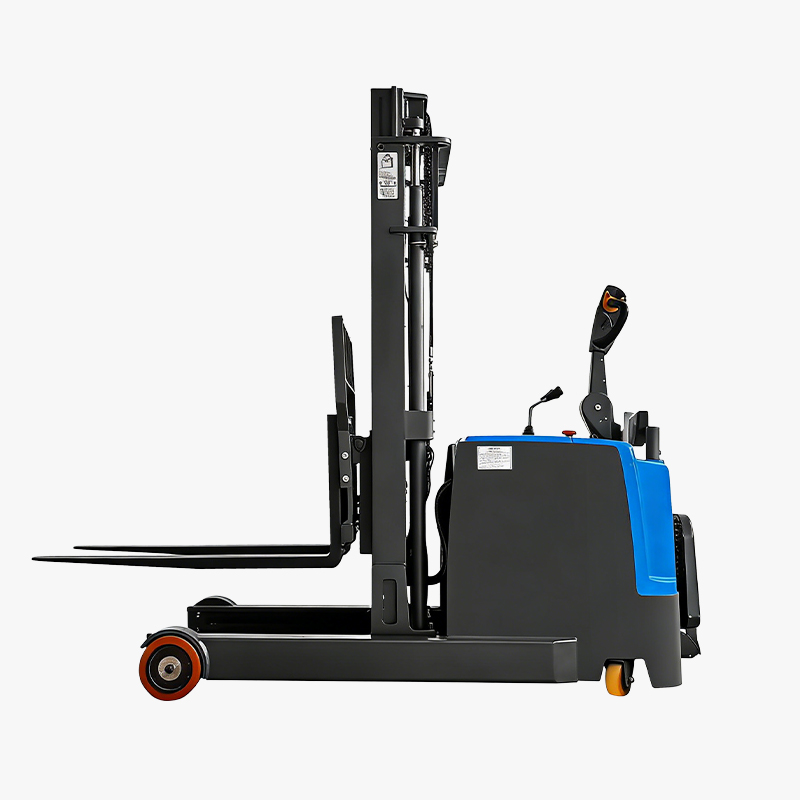

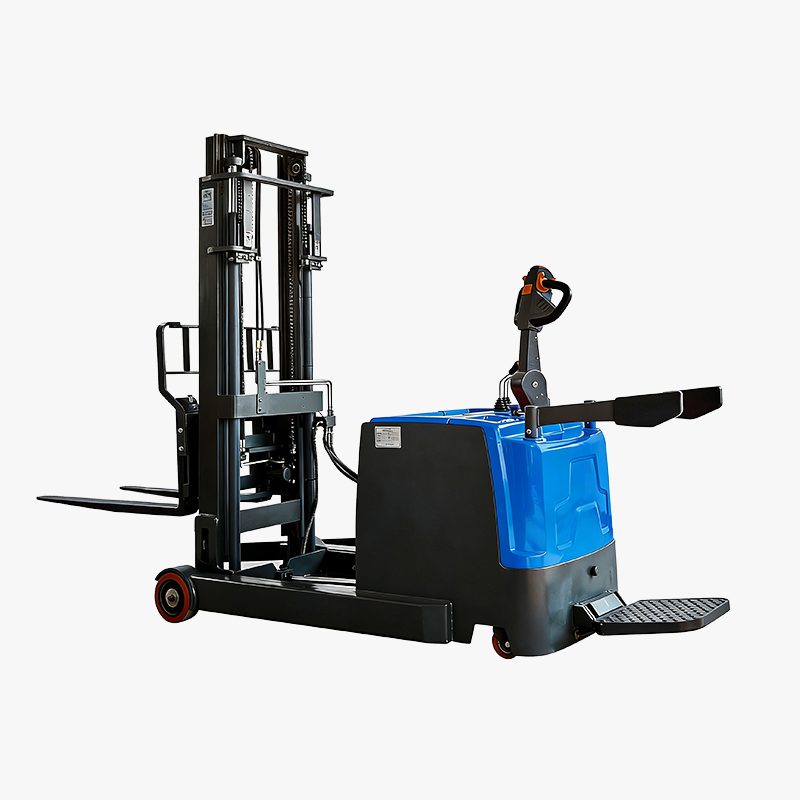

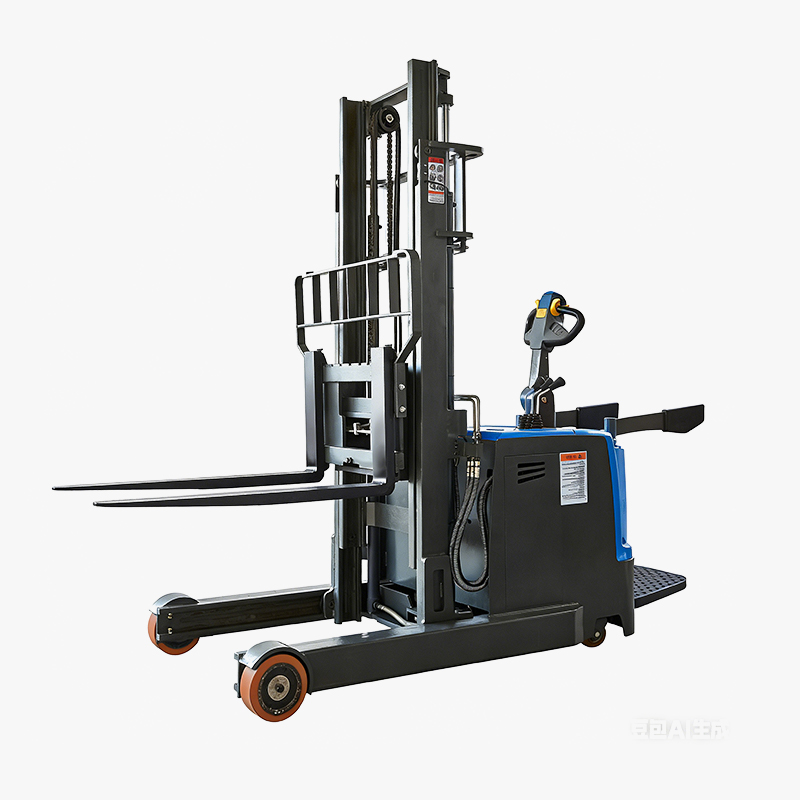

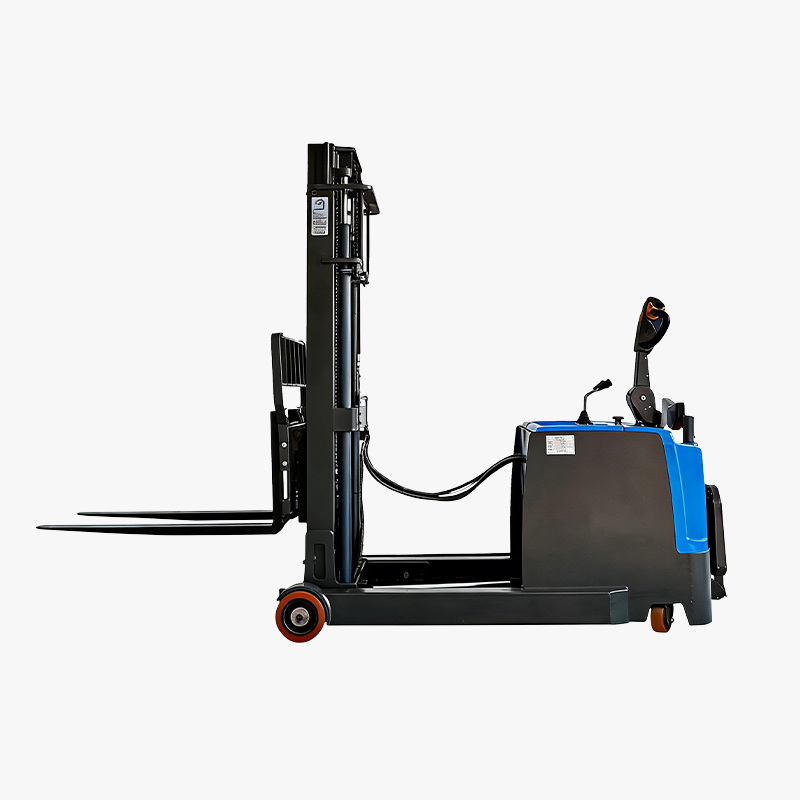

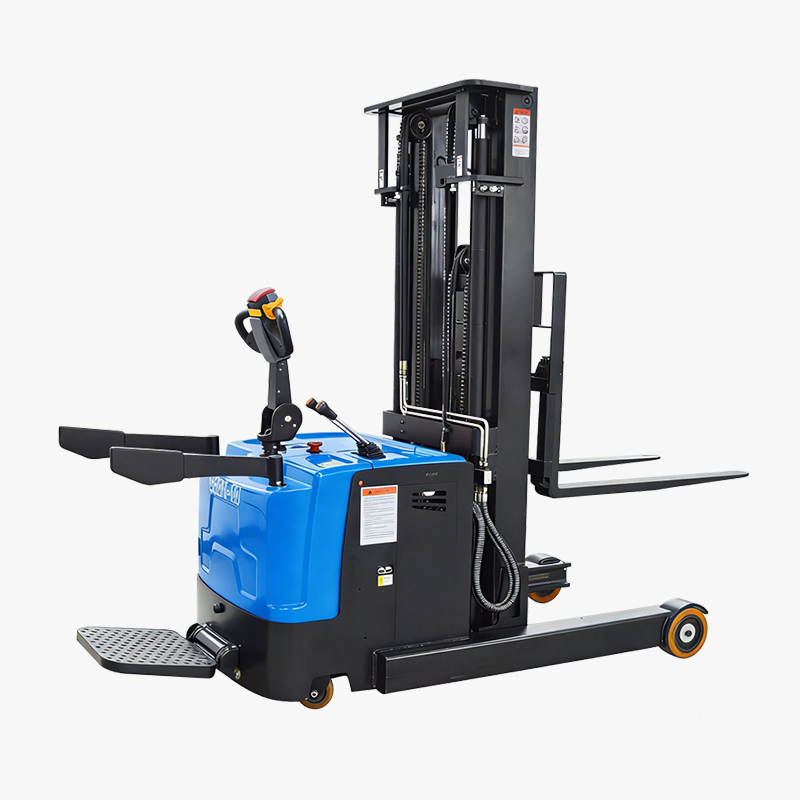

1500kg｜2000kg Electric Stand-on Reach Stacker

Characteristics：

Model		CQDA15E	CQDA20E
Operator type		Stand-on
Rated load capacity	Q (kg)	1500	2000
Mast type		Two-stage	Two-stage
Lift height	h3 (mm)	2000/2500/3000/3500	2000/2500/3000/3500
Service weight	kg	1870/1885/2010/2080	1962/2022/2060/2126
Load center distance	c（mm)	500
Front overhang	x (mm)	502
Wheelbase	y (mm)	1538
Controller		LVM24S20

You are here: Products / Electric Stacker / 1500kg｜2000kg Electric Stand-on Reach Stacker

Request a Quote

Advantages Detailed Specs

Ergonomic handle paired with electronic steering enables easy one-handed operation.
Its fixed mast wire mesh guard isolates operators from loads for enhanced safety.
With hydraulic explosion-proof design, it avoids sudden mast descent on oil pipe rupture.
Shock-absorbing pedals and anti-collision arms ensure fatigue-free operation during prolonged use.
Low-center-of-gravity body ensures stable operation.
Built with a high-strength body and connecting rod-pin shaft design, it’s ideal for heavy loads.

Wheels:

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀230×75
Tyre size, rear	⌀×w (mm)	⌀210×85
Balance wheel	⌀×w (mm)	⌀124×60
Wheels, number front/rear (x=drive wheels)		1x, 2/2

Performance:

Travel speed, laden/unladen	(km/h)	5.5/6.0
Lifting speed, laden/unladen	(mm/s)	100/155	75/125
Lowering speed, laden/unladen	(mm/s)	100/110	95/100
Max. gradeability, laden/unladen	%	5/8
Service brake		Electromagnetic

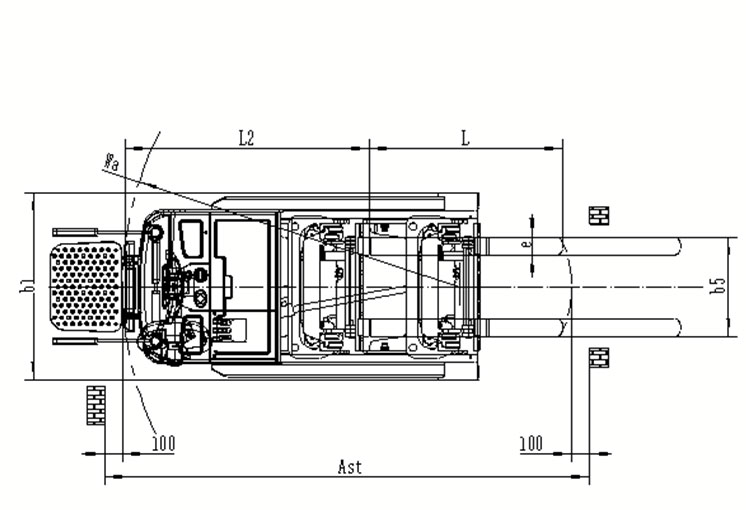

Dimensions:

Lowered height	h13 (mm)	≤65
Height, mast lowered	h1 (mm)	2064	1564/1814/2064/2314	2064	1564/1814/2064/2314
Height, mast extended	h4 (mm)	2064	2524/3064/3394/4064	2064	2524/3064/3394/4064
Overall length	L1 (mm)	2431
Length to face of forks	L2 (mm)	1351
Overall width	b1/b2 (mm)	1035
Fork dimensions	s/e/l (mm)	40/100/1070
Fork spread	b5 (mm)	220-680
Ground clearance, center of wheelbase	m2 (mm)	60
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2925
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2771
Turning radius	Wa (mm)	1867
Reach distance	(mm)	550-650

Motor and Battery:

Drive motor rating S2 60 min	（kw)	2.2
Lift motor rating at S3 15%	（kw)	2.2
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	24/240
Battery weight	（kg)	195

Others：

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Electronic

Option：

Curtis controller

200Ah Li-ion battery

Fork tilt

Fork side shift
