Yancheng Bingo Machinery Equipment Co., Ltd.

SBD15｜SBD20

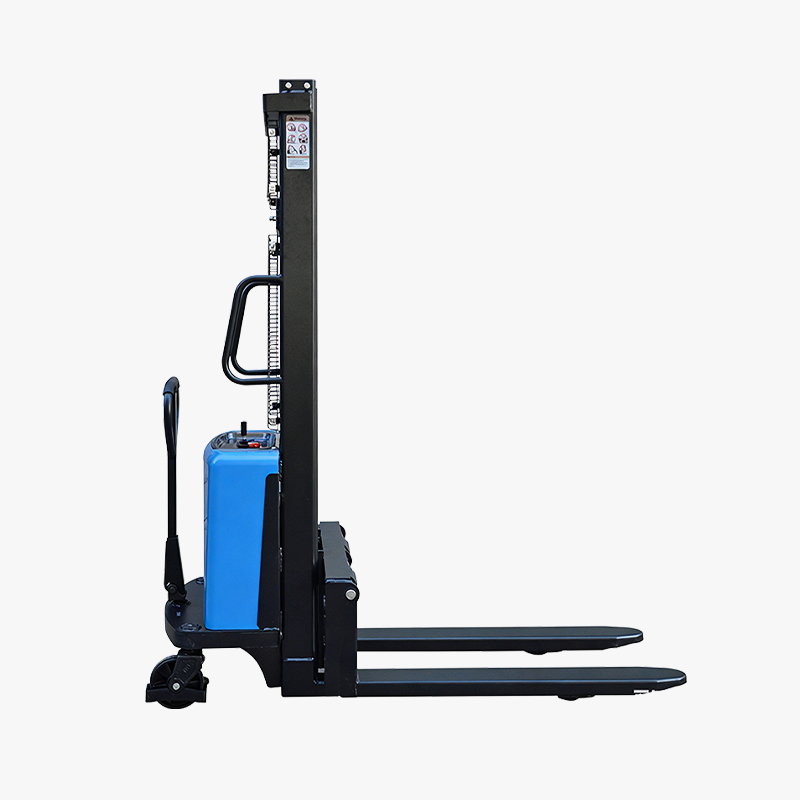

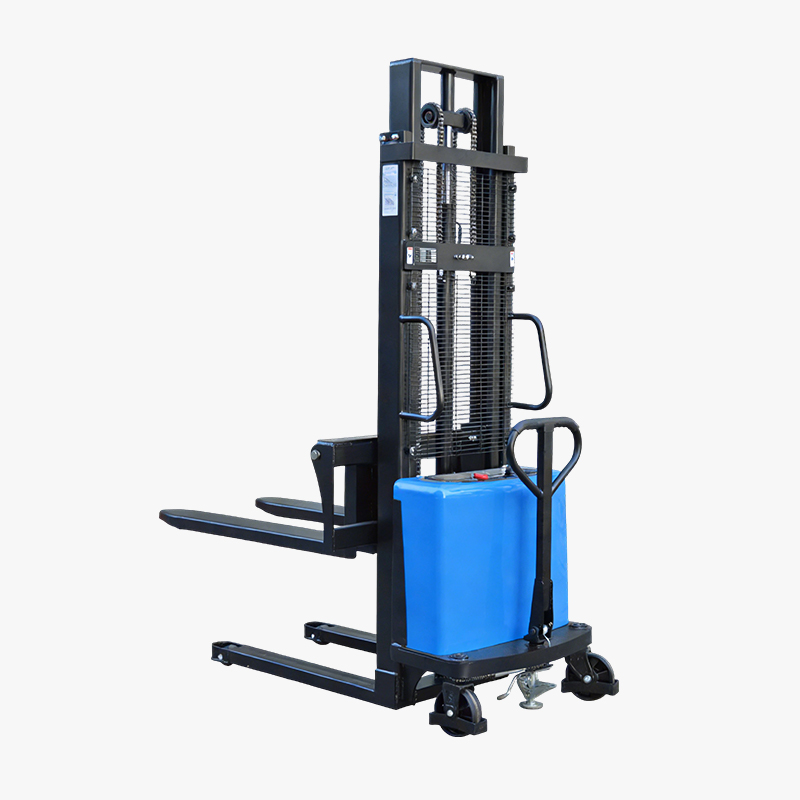

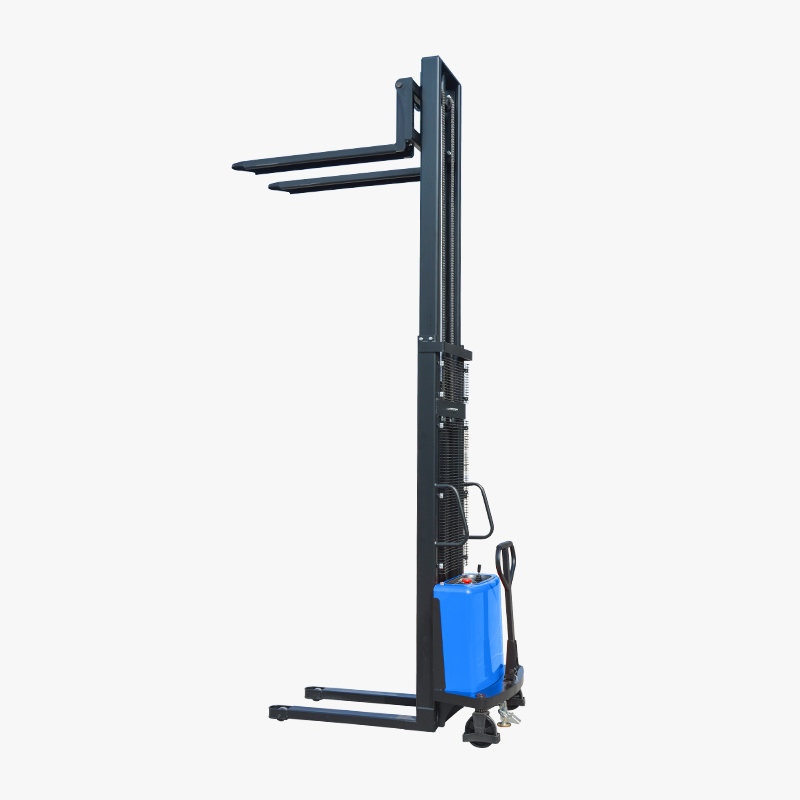

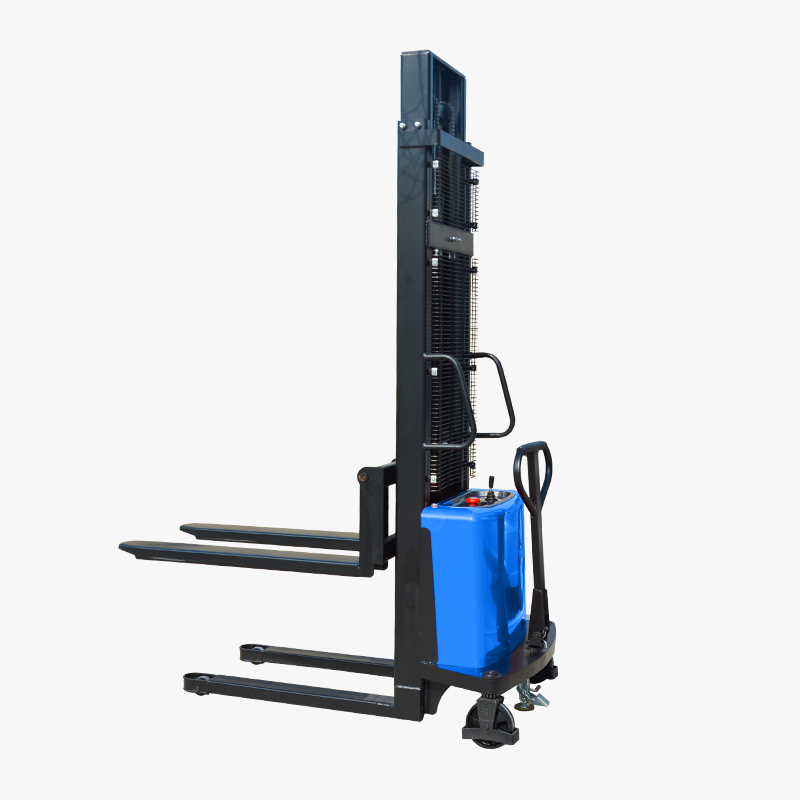

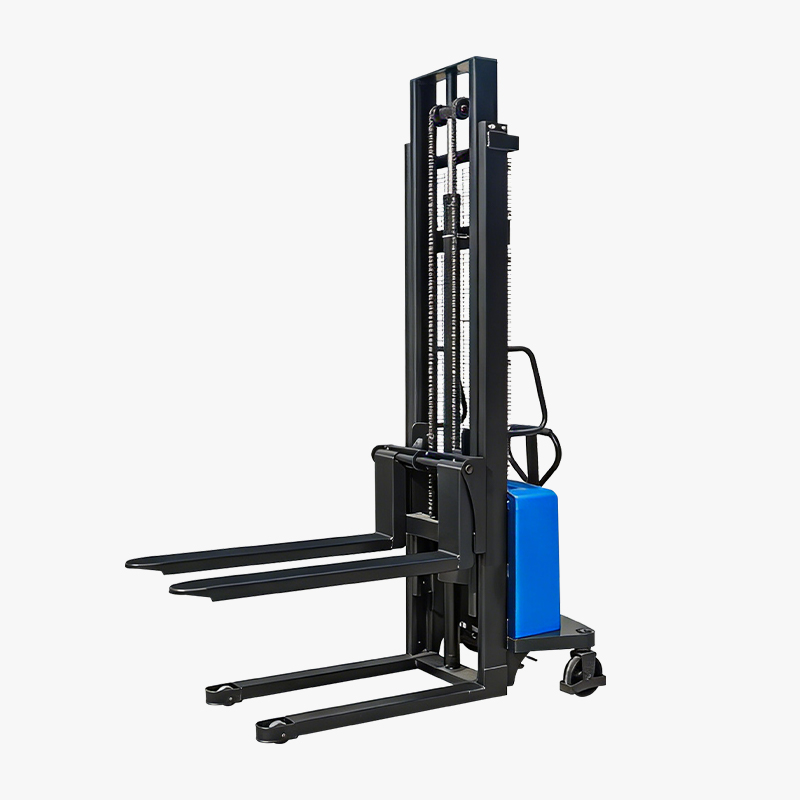

1500kg｜2000kg Semi-Electric Stacker

Characteristics：

Model		SBD15		SBD20
Operator type		Hand
Rated load capacity	Q (kg)	1500		2000
Mast type		One-stage	Two-stage	One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500	1600	2000/2500/3000/3500
Service weight	kg	340	412/420/430/465	360	412/440/455/485
Load center distance	c（mm)	500
Front overhang	x (mm)	733
Wheelbase	y (mm)	1290

You are here: Products / Semi-Electric Stacker / 1500kg｜2000kg Semi-Electric Stacker

Request a Quote

Advantages Detailed Specs

No load loss and no tipping at 2.5m lifting height

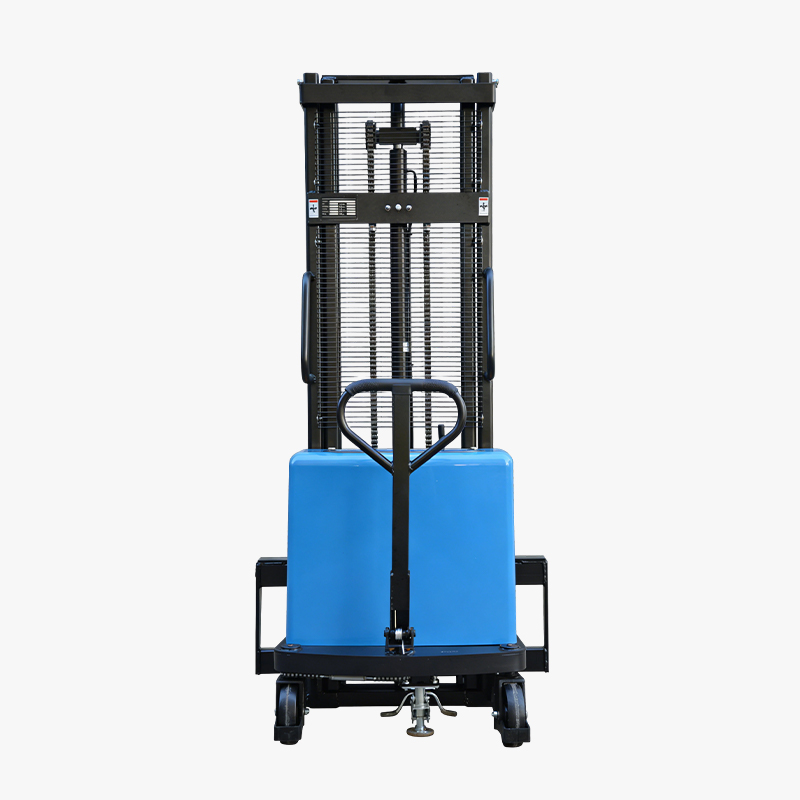

Fixed mast wire mesh guard: separates operators from loads and ensures operator safety.
Explosion-proof design of hydraulic system: even if the oil pipe bursts, the mast will not drop rapidly.
A dual-chain structure adopted for more stable lifting.

Wheels:

Tyre type

Nylon

Tyre size, rear

⌀×w (mm)

⌀80×60

Balance wheel

⌀×w (mm)

⌀180×50

Wheels, number front/rear (x=drive wheels)

0x, 2/2
Performance:

Travel speed, laden/unladen

(km/h)

/

Lifting speed, laden/unladen

(mm/s)

55/105

Lowering speed, laden/unladen

(mm/s)

Controlled

Service brake

Mechanical

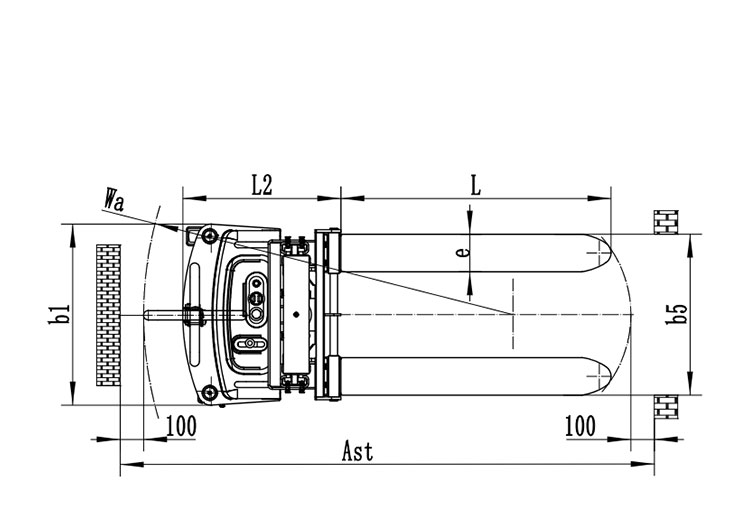

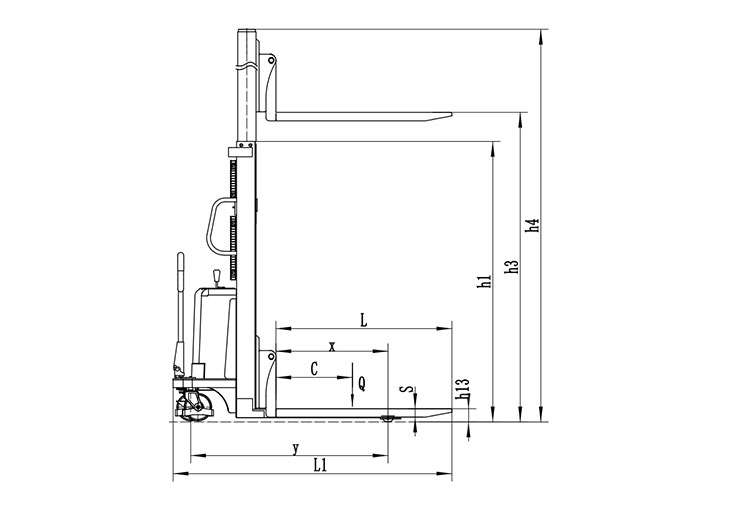

Dimensions:

Lowered height	h13 (mm)	88
Height, mast lowered	h1 (mm)	2083	1583/1833/2083/2333	2083	1583/1833/2083/2333
Height, mast extended	h4 (mm)	2083	2568/3068/3568/4068	2083	2568/3068/3568/4068
Overall length	L1 (mm)	1822
Length to face of forks	L2 (mm)	672
Overall width	b1/b2 (mm)	771
Fork dimensions	s/e/l (mm)	55/165/1150
Fork spread	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	28
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2460
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2387
Turning radius	Wa (mm)	1575

Motor and Battery:

Lift motor rating at S3 15%

（kw)

1.6

Battery type

Lead-acid

Battery voltage/nominal capacity

（V/Ah)

12/120

Battery weight

（kg)

35

Others：

Sound pressure level at the driver's ear

dB (A)

69

Steering design

Mechanical

Option：

Li-ion battery

Tyre type		Nylon
Tyre size, rear	⌀×w (mm)	⌀80×60
Balance wheel	⌀×w (mm)	⌀180×50
Wheels, number front/rear (x=drive wheels)		0x, 2/2

Travel speed, laden/unladen	(km/h)	/
Lifting speed, laden/unladen	(mm/s)	55/105
Lowering speed, laden/unladen	(mm/s)	Controlled
Service brake		Mechanical

Lift motor rating at S3 15%	（kw)	1.6
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	12/120
Battery weight	（kg)	35

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical
