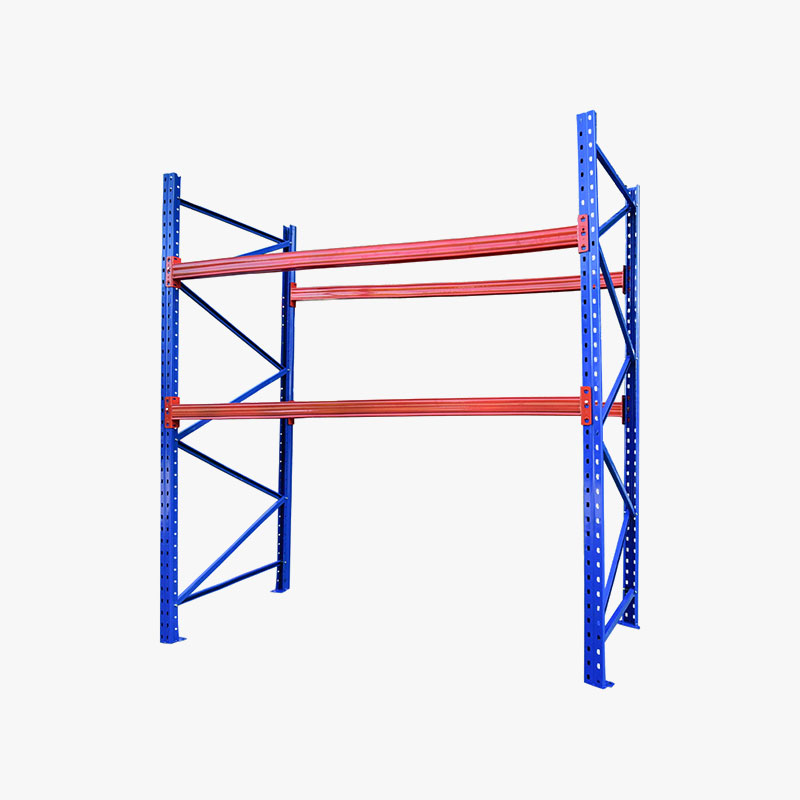

Heavy Duty Selective Pallet Racking Designed with Adjustable Beams for Flexible Storage Arrangement


This heavy‑duty selective pallet racking system is engineered for optimal warehouse storage efficiency. Constructed from cold‑rolled steel, it features adjustable beam configurations to accommodate a wide range of pallet sizes, with a load capacity of up to 1800kg per layer. This system offers exceptional flexibility to meet diverse storage requirements. Its robust main frame and sub‑frame design ensures outstanding stability, while full compatibility with standard forklifts enables seamless first‑in, first‑out (FIFO) inventory access. Ideal for manufacturing, logistics, retail, and cold storage environments, it delivers a reliable, scalable solution to maximize warehouse space utilization.

Characteristics:

Size Material Main Frame Weight Sub-Frame Weight Load Column Thickness Beam Thickness
250×100×350cm=2layer Cold Rolled Steel 57.2±1 (kg) 41.6±1 (kg) 1800kg/layer 60×80×1.5mm 50×100×1.5mm
250×100×350cm=2layer Cold Rolled Steel 108±1 (kg) 80±1 (kg) 1800kg/layer 60×80×2.0mm 50×100×1.5mm
270×100×350cm=2layer Cold Rolled Steel 118±1 (kg) 89±0.5 (kg) 1800kg/layer 60×80×2.0mm 50×120×1.5mm
300×100×350cm=2layer Cold Rolled Steel 128.2±1 (kg) 97.3±1 (kg) 1800kg/layer 60×80×2.0mm 50×120×1.5mm



You are here: Products / Warehouse Racks / Heavy Duty Selective Pallet Racking Designed with Adjustable Beams for Flexible Storage Arrangement

Request a Quote

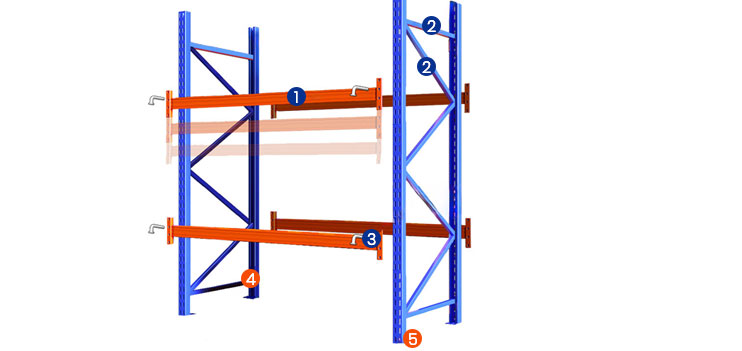

  • a Boltless Design | Easy Installation | High Load-Bearing Uprights


    1:Beam / Support Beam 【Adjustable vertical height freely】
    2:Cross Bracing / Diagonal Bracing
    3:Locking Pin / Cotter Pin  4:Upright / Column  5:Base Plate / Foot Plate

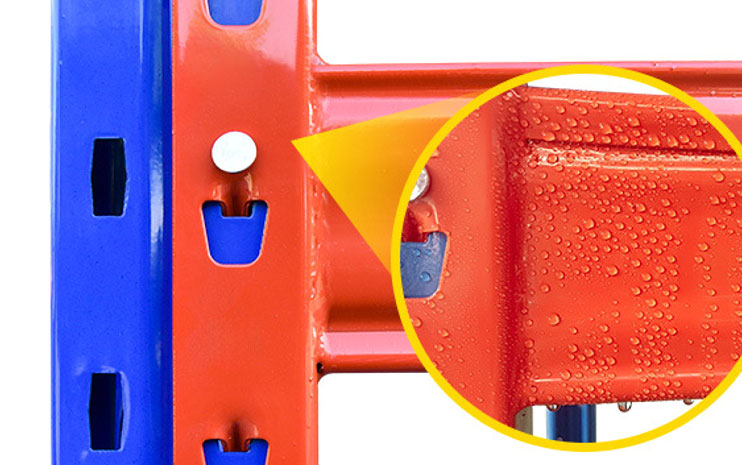

  • b Waterproof & Rustproof | Sturdy & Reliable

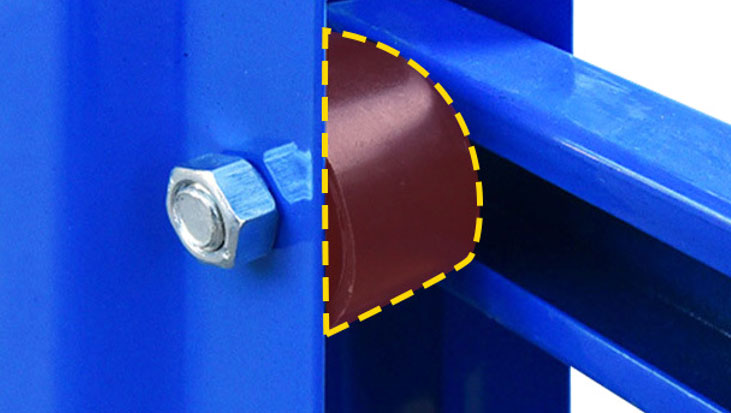

  • c Equipped with diagonal bracing bolts for tight and reliable connection

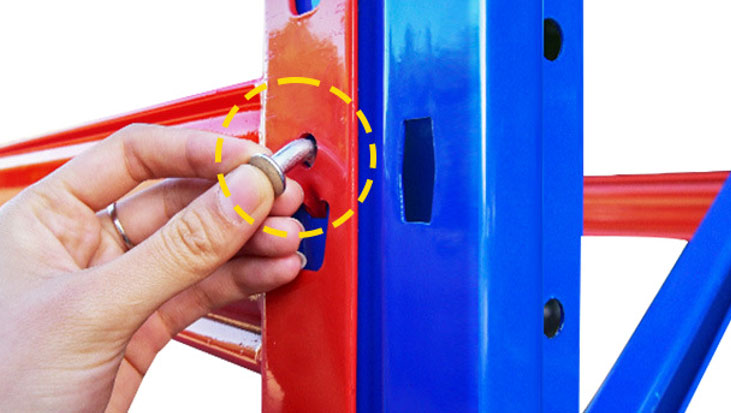

  • d Equipped with safety locking pins for double safety assurance

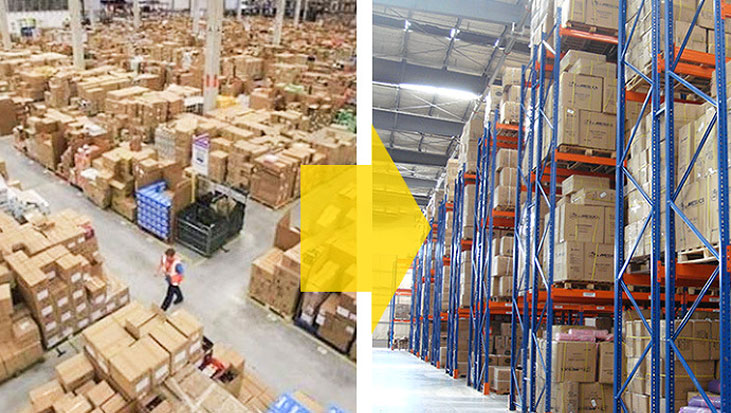

  • e Warehouse Utilization Rate Increased by 200%

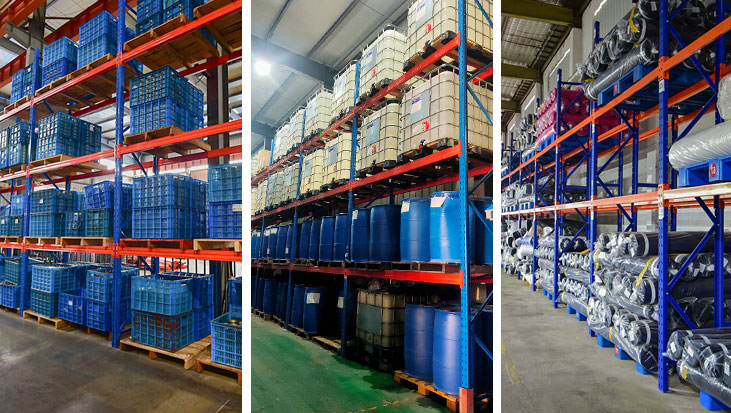

  • f Projects
