Yancheng Bingo Machinery Equipment Co., Ltd.

CPDB15E｜CPDB20E

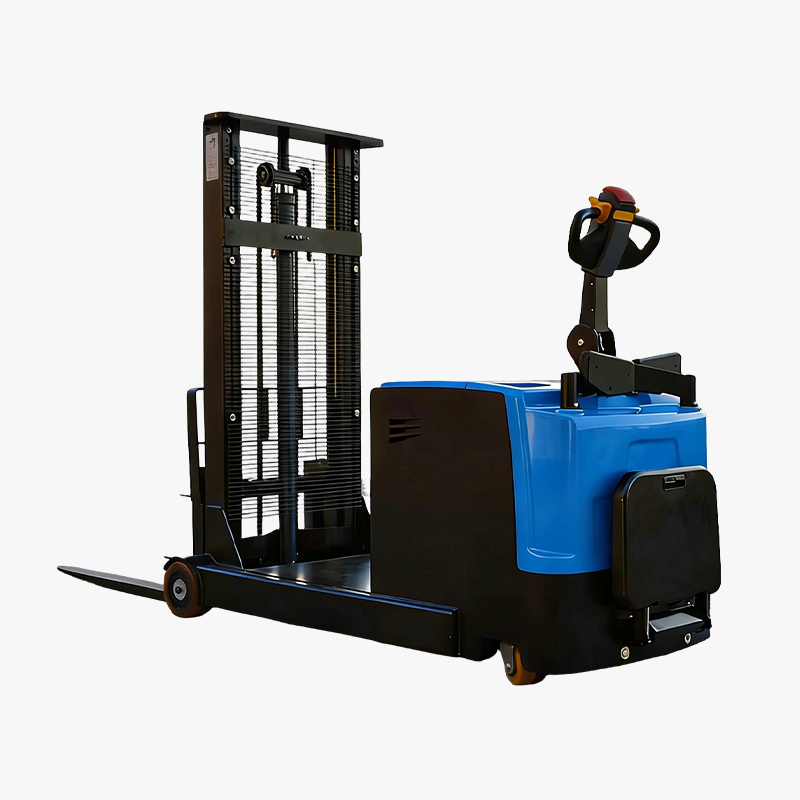

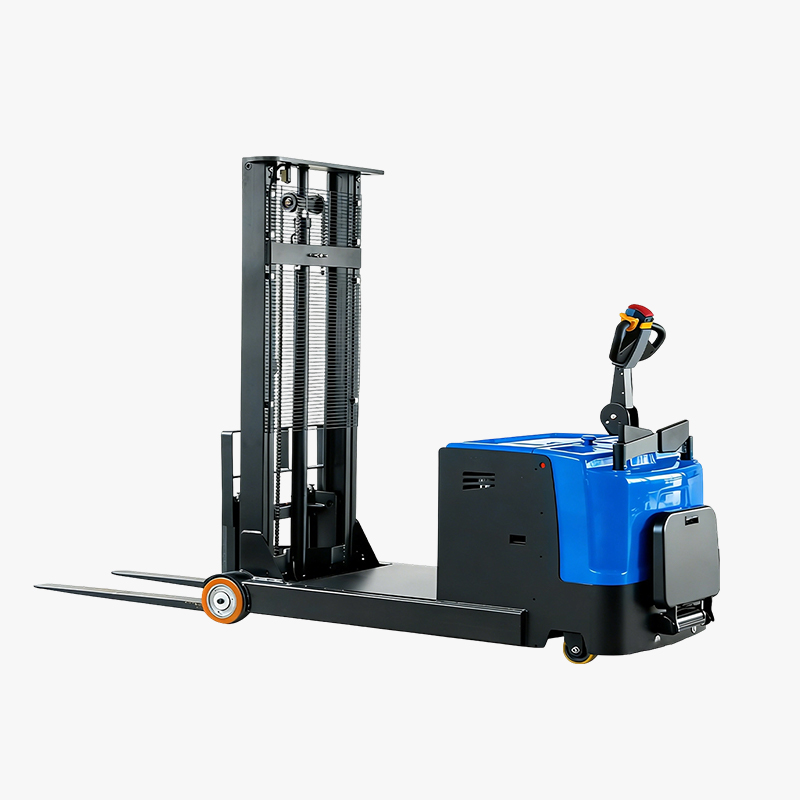

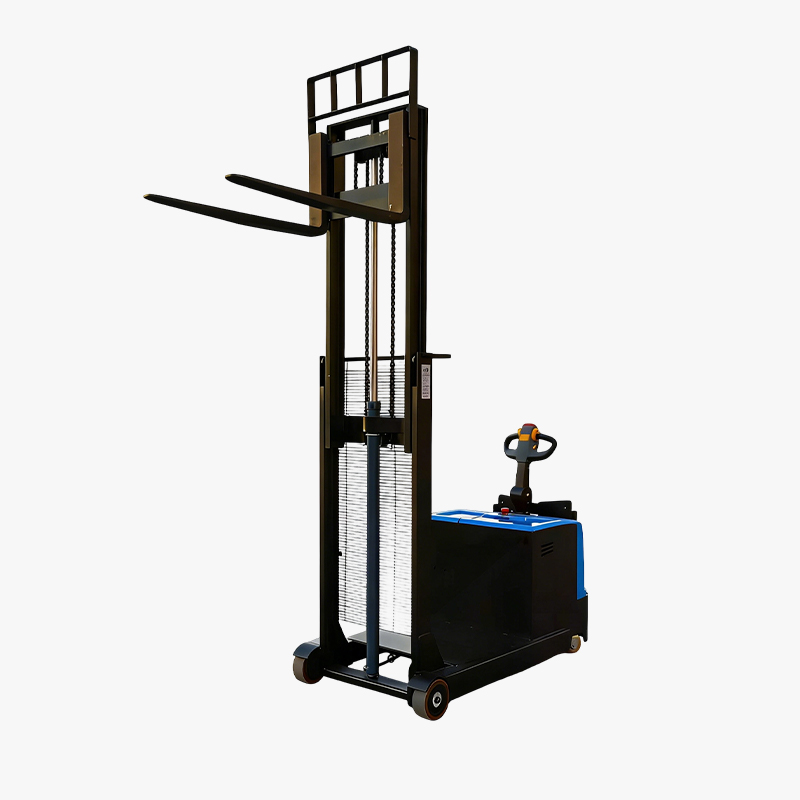

1500kg｜2000kg Counterbalanced Electric Stand-on Stacker

Characteristics：

Model		CPDB15E		CPDB20E
Operator type		Stand-on
Rated load capacity	Q (kg)	1500		2000
Mast type		One-stage	Two-stage	One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500	1600	2000/2500/3000/3500
Service weight	kg	1590/1860/1895/1930/1960		1650/1935/2080/2150/2220
Load center distance	c（mm)	500
Front overhang	x (mm)	122
Wheelbase	y (mm)	1581
Controller		LVM24S20

You are here: Products / Electric Stacker / 1500kg｜2000kg Counterbalanced Electric Stand-on Stacker

Request a Quote

Advantages Detailed Specs

The ergonomic handle, combined with electronic steering, enables effortless one-handed operation.
Fixed mast wire mesh guard: separates operators from loads and ensures operator safety.
Explosion-proof design of hydraulic system: even if the oil pipe bursts, the mast will not drop rapidly.
Shock-absorbing pedals and anti-collision protective arms ensure fatigue-free operation even during extended use.
The low-center-of-gravity body ensures stable operation.

Wheels:

Tyre type		Nylon
Tyre size, front	⌀×w (mm)	⌀230×75
Tyre size, rear	⌀×w (mm)	⌀210×85
Balance wheel	⌀×w (mm)	⌀115×55
Wheels, number front/rear (x=drive wheels)		1x, 2/2

Performance:

Travel speed, laden/unladen	(km/h)	5.5/6.0
Lifting speed, laden/unladen	(mm/s)	100/155	75/125
Lowering speed, laden/unladen	(mm/s)	100/110	95/100
Max. gradeability, laden/unladen	%	5/8
Service brake		Electromagnetic

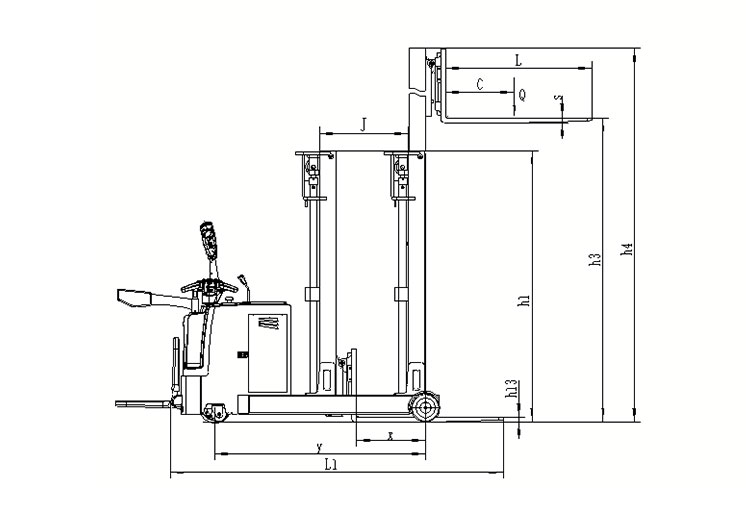

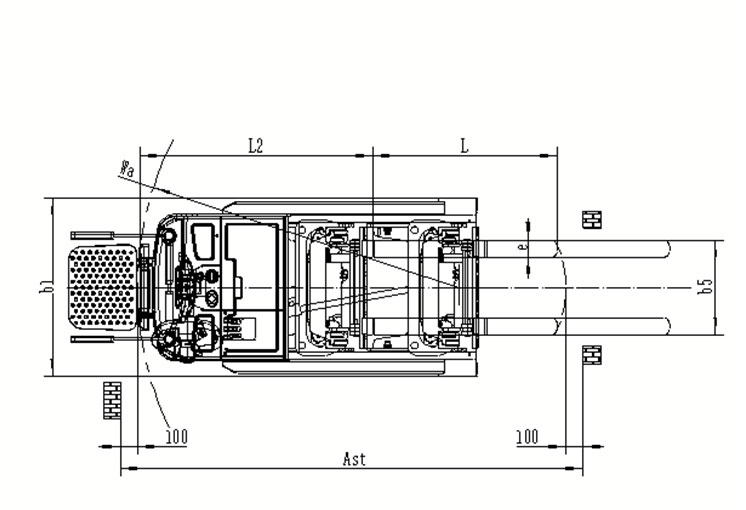

Dimensions:

Lowered height	h13 (mm)	≤65
Height, mast lowered	h1 (mm)	2064	1564/1814/2064/2314	2064	1564/1814/2064/2314
Height, mast extended	h4 (mm)	2064	2524/3064/3394/4064	2064	2524/3064/3394/4064
Overall length	L1 (mm)	3055
Length to face of forks	L2 (mm)	1975
Overall width	b1/b2 (mm)	960
Fork dimensions	s/e/l (mm)	40/100/1070
Fork spread	b5 (mm)	220-680
Ground clearance, center of wheelbase	m2 (mm)	60
Aisle width for pallets 1000×1200 crossways	Ast (mm)	3481
Aisle width for pallets 800×1200 lengthways	Ast (mm)	3448
Turning radius	Wa (mm)	1867

Motor and Battery:

Drive motor rating S2 60 min	（kw)	2.2
Lift motor rating at S3 15%	（kw)	2.2
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	24/210
Battery weight	（kg)	180

Others：

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical

Option：

Curtis controller

200-330Ah Li-ion battery

Fork tilt

Fork side shift
