CPDB10

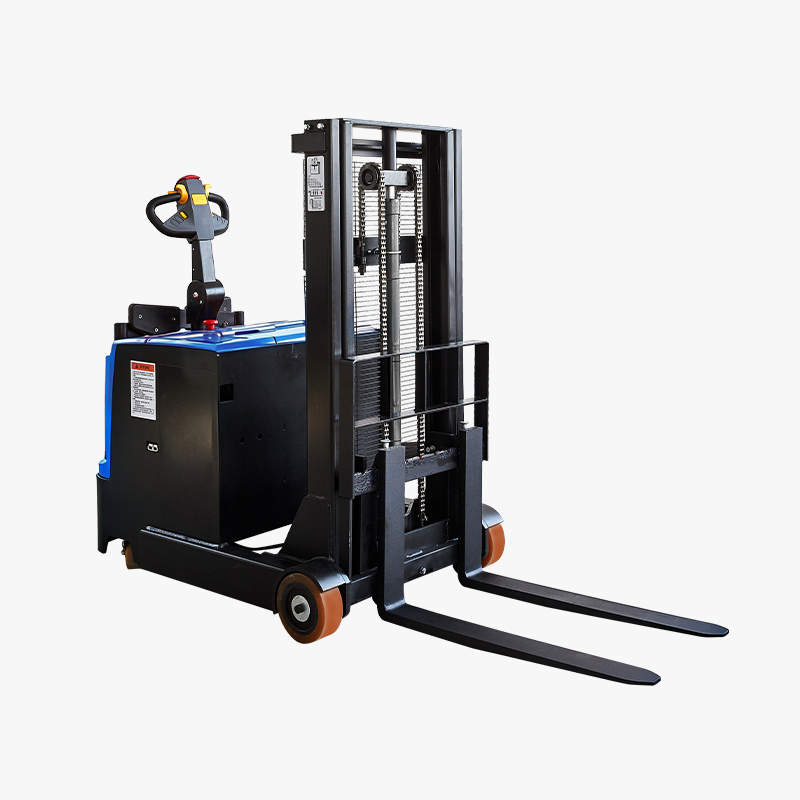

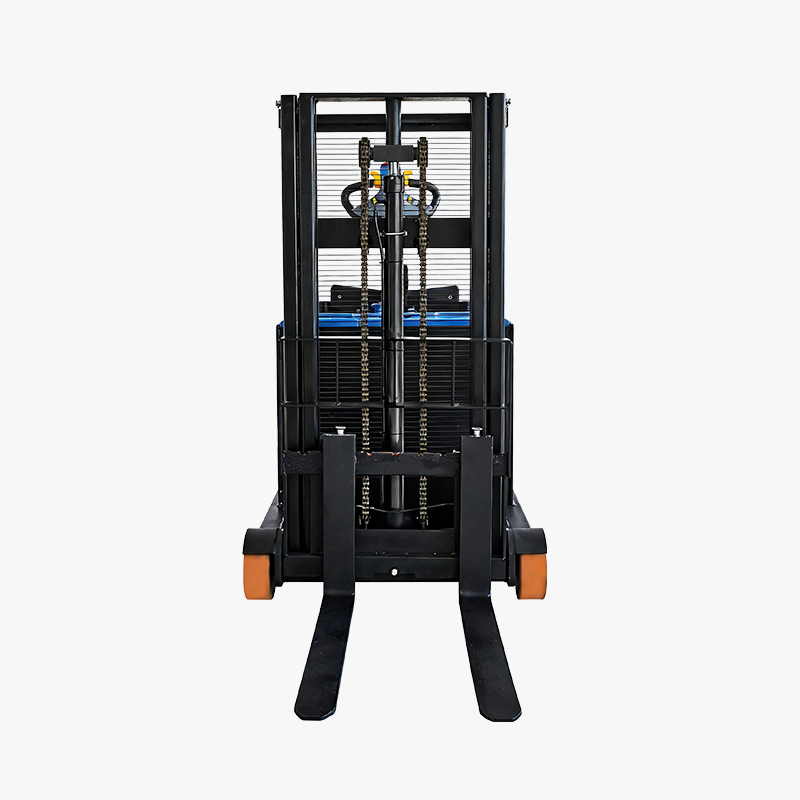

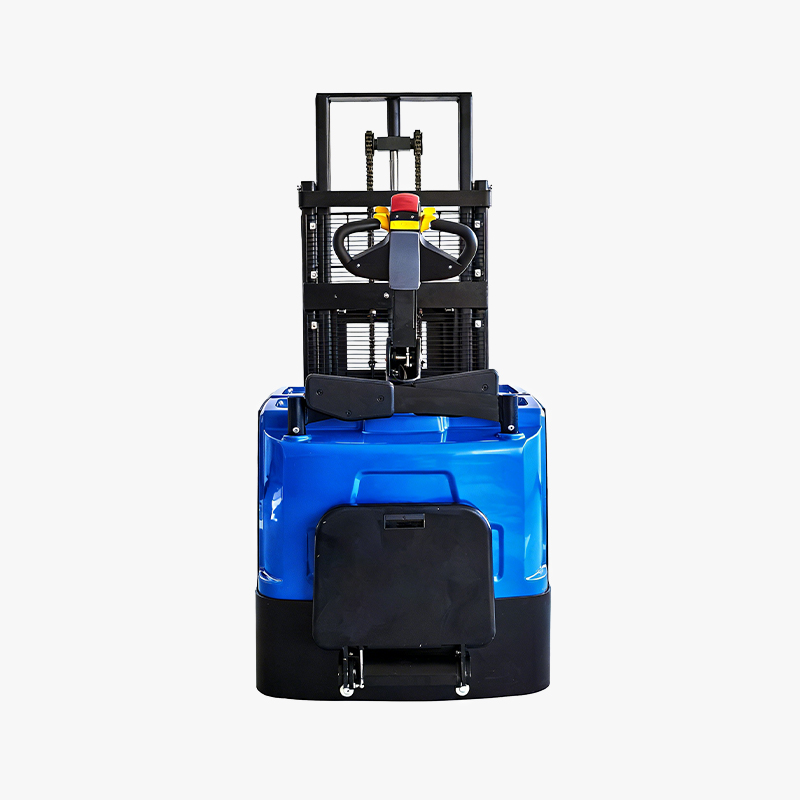

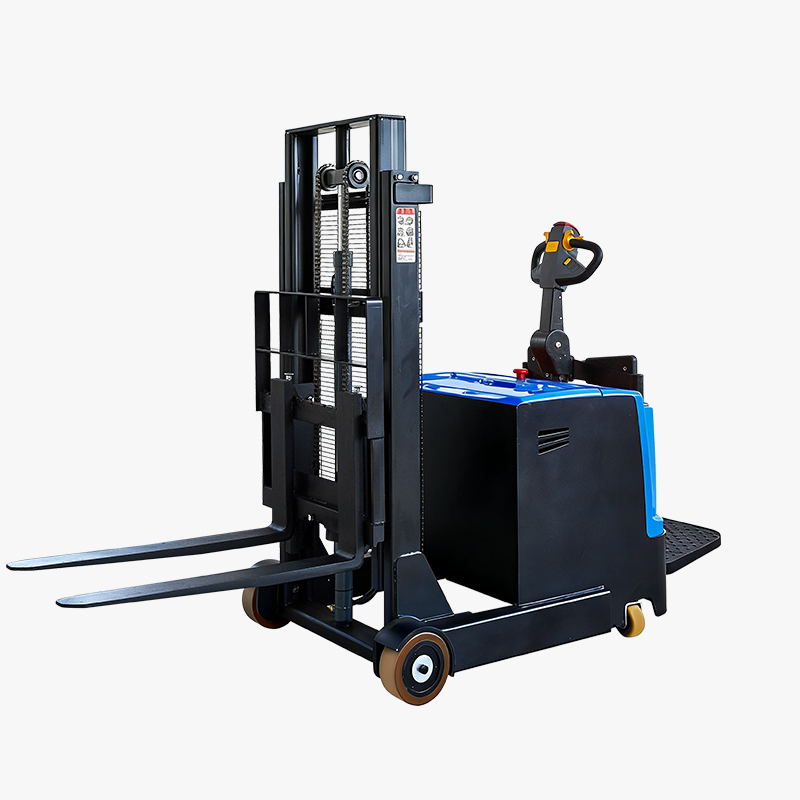

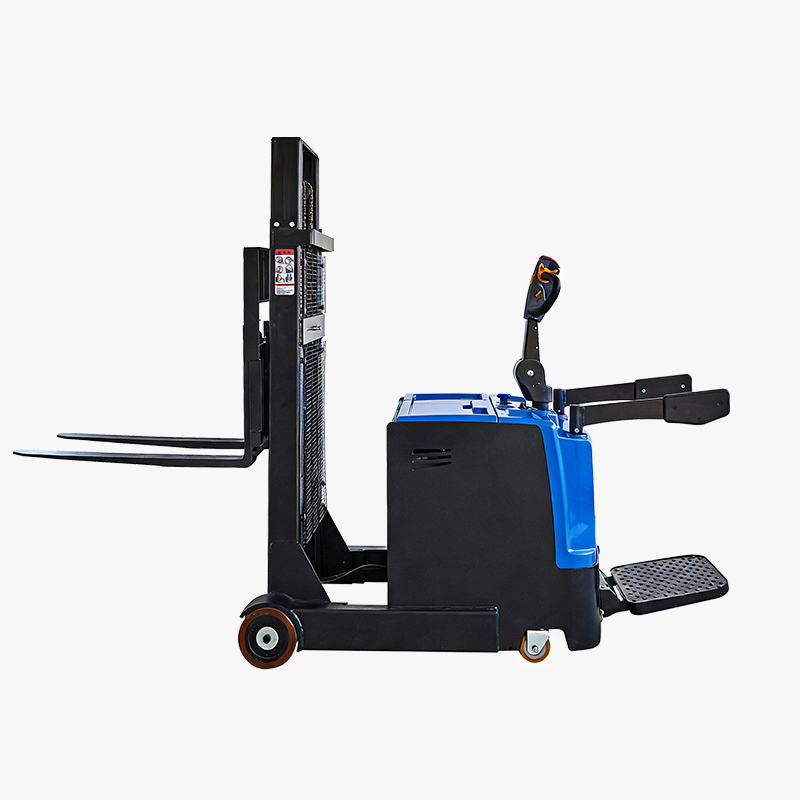

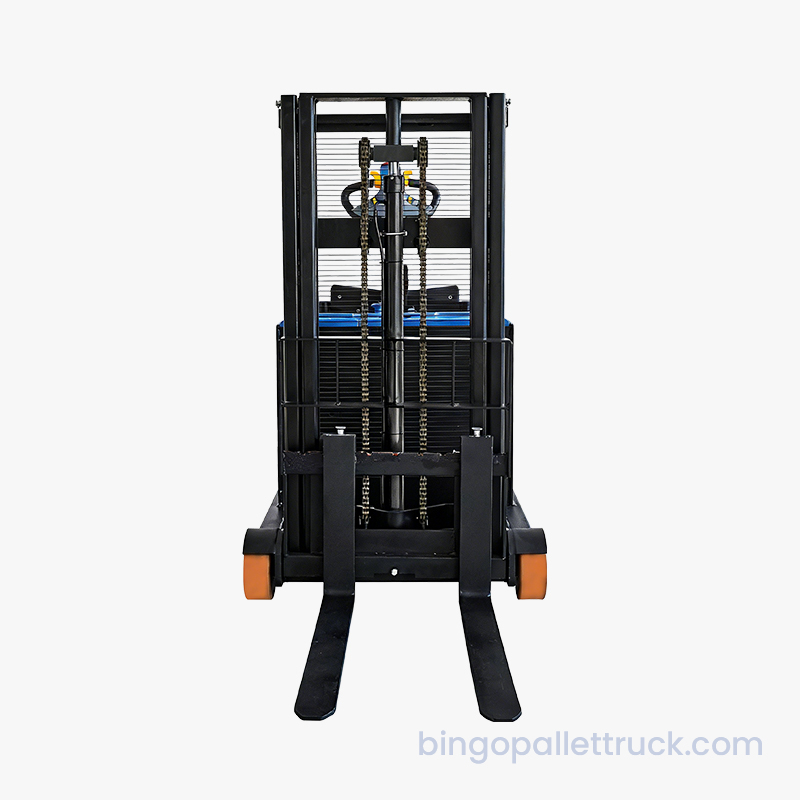

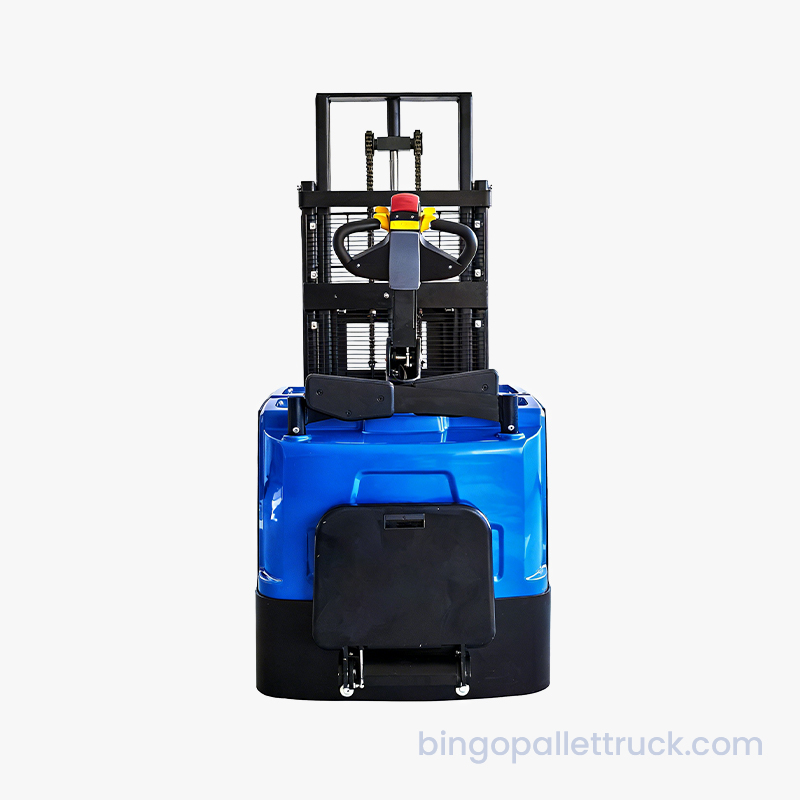

1000kg Counterbalanced Electric Stand-on Stacker for Logistics


Characteristics:

Model



CPDB10

Operator type



Stand-on

Rated load capacity

Q (kg)

1000



Mast type





One-stage

Two-stage

Lift height

h3 (mm)

1600

2000/2500/3000/3500

Service weight

kg

1400

1440/1470/1500/1530

Load center distance

c(mm)

500

Wheelbase

y (mm)

1025

Controller



LVM24S20





You are here: Products / Electric Stacker / 1000kg Counterbalanced Electric Stand-on Stacker for Logistics

Request a Quote

Compact body with a small turning radius.
The guard is designed to isolate operators from loads in lifting operations, guaranteeing safety.
This hydraulic system eliminates pipe-failure mast drop risk and meets strict industrial safety requirements.
Shock-absorbing pedals and anti-collision protective arms ensure fatigue-free operation even during extended use.
The low-center-of-gravity body structure ensures consistent and stable operation even under heavy-load conditions.

  • Wheels:

    Tyre type



    PU

    Tyre size, front

    ⌀×w (mm)

    ⌀250×80

    Tyre size, rear

    ⌀×w (mm)

    ⌀160×72

    Balance wheel

    ⌀×w (mm)

    ⌀124×60

    Wheels, number front/rear (x=drive wheels)



    1x, 2/2



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    5.0/5.8

    Lifting speed, laden/unladen

    (mm/s)

    100/155

    Lowering speed, laden/unladen

    (mm/s)

    100/110

    Max. gradeability, laden/unladen

    %

    5/8

    Service brake



    Electromagnetic

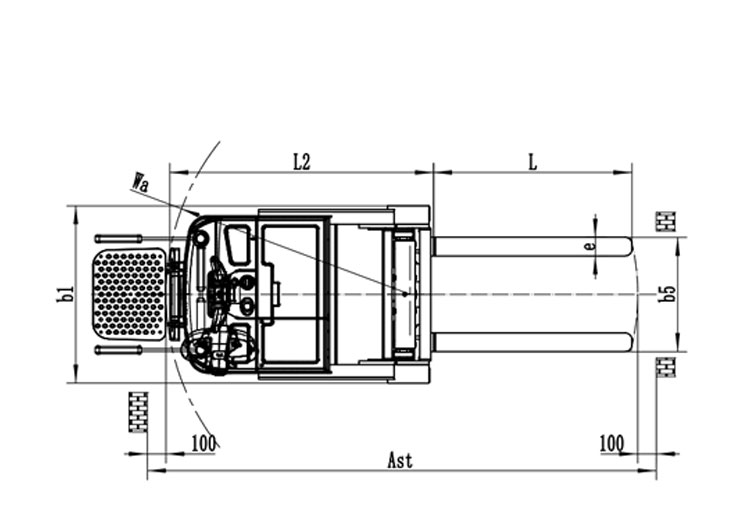

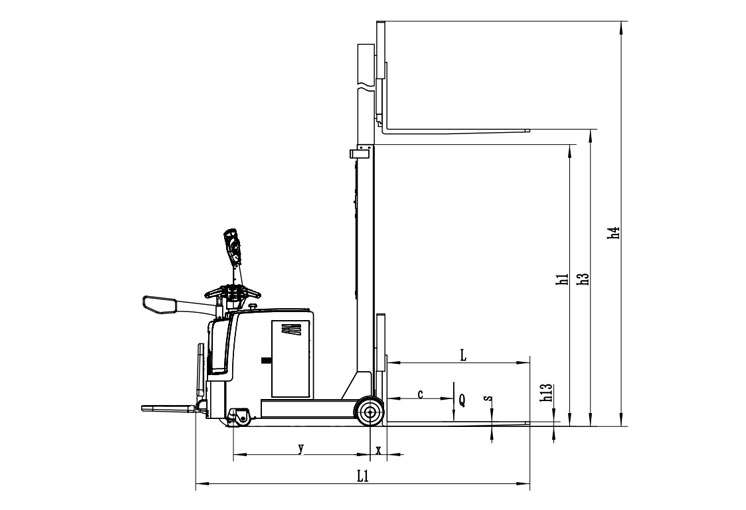

  • Dimensions:

    Lowered height

    h13 (mm)

    ≤65

    Height, mast lowered

    h1 (mm)

    2110

    1610/1860/2110/2360

    Height, mast extended

    h4 (mm)

    2415

    2815/3312/3815/4315

    Overall length

    L1 (mm)

    2503

    Length to face of forks

    L2 (mm)

    1423

    Overall width

    b1/b2 (mm)

    960

    Fork dimensions

    s/e/l (mm)

    35/100/1070

    Fork spread

    b5 (mm)

    220-680

    Ground clearance, center of wheelbase

    m2 (mm)

    60

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    2934

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    2902

    Turning radius

    Wa (mm)

    1318



  • Motor and Battery:

    Drive motor rating S2 60 min

    (kw)

    1.5

    Lift motor rating at S3 15%

    (kw)

    2.2

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    24/120

    Battery weight

    (kg)

    35×2

    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Mechanical

    Option:

    Curtis controller

    100-330Ah Li-ion battery

    Fork tilt

    Fork side shift
