Yancheng Bingo Machinery Equipment Co., Ltd.

Model BG-604030-CC

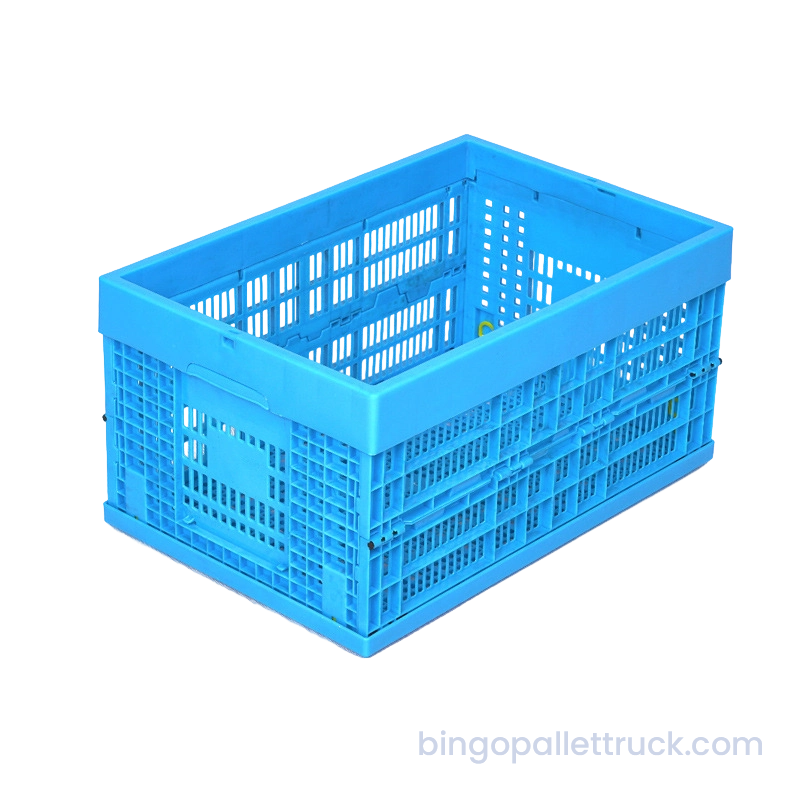

57L Collapsible Plastic Crate

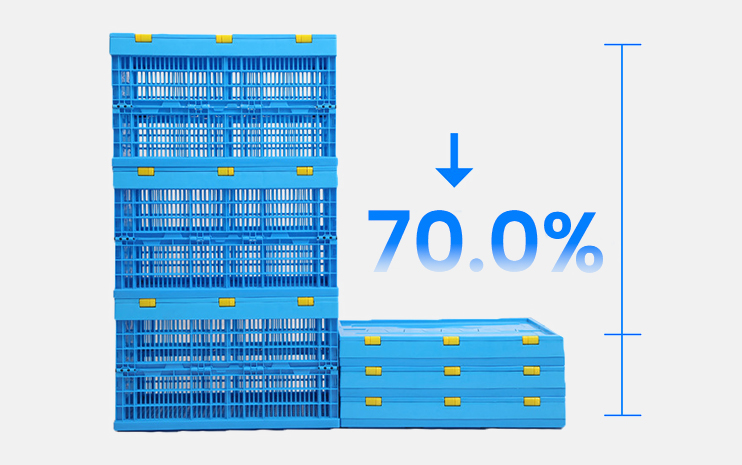

This 600×400×300mm collapsible plastic crate is designed for heavy-duty industrial logistics applications. Manufactured from high-impact food-grade PP resin, it provides a 57L nominal volume with internal dimensions 560×360×285mm and a 70% folding ratio, reducing the folded height to 90mm for efficient empty storage and reverse logistics. With a net weight of 2.19kg, the crate features a reinforced stackable structure, making it durable, reusable, and optimized for warehouse storage, cold chain, and distribution operations.

Characteristics：

Model	BG-604030-CC
Material	PP
External Dims. (L×W×H)	600×400×300mm
Internal Dims. (L×W×H)	560×360×285mm
Weight	2.19kg
Capacity	57L

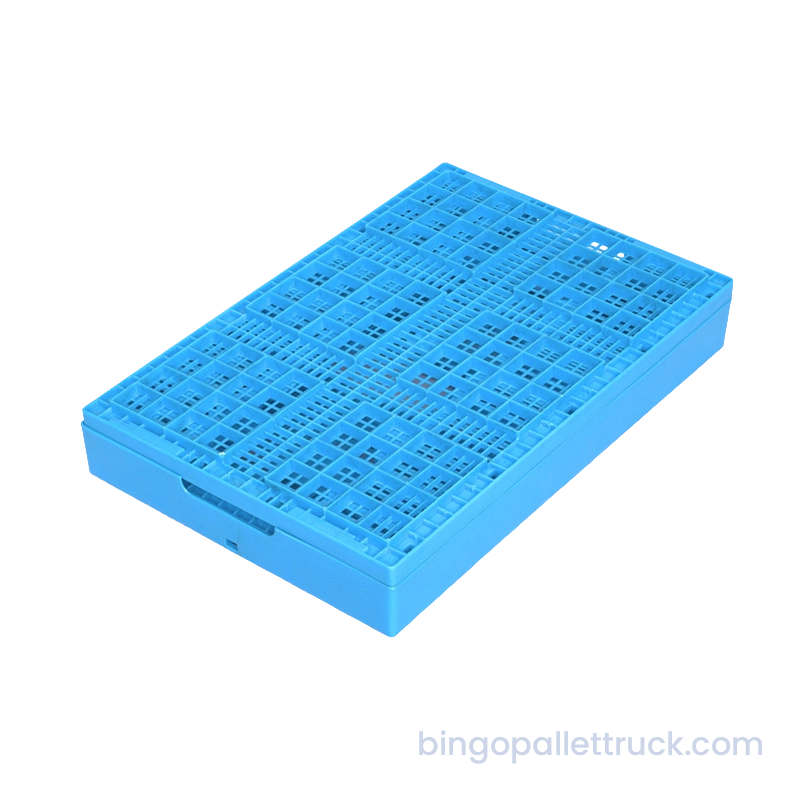

Folded Height	90mm
Fold Ratio	70%

You are here: Products / Plastic Totes, Crates & Containers / 57L Collapsible Plastic Crate

Request a Quote

Our Advantages

a Various Colors & Full Specifications
Collapsible, Space-Saving, Large Capacity, Easy to Handle, High Load Capacity
b Humanized Foldable Design
Effectively saves storage and transportation space, reducing logistics and transportation costs.
c High Strength & Heavy Load Capacity
Load-bearing tests show that our foldable crates can support over 120kg under high-strength stress.
d Locally Replaceable, Cost-Effective
If damaged, only the broken parts need to be replaced, reducing replacement costs.

1、Long Side Panel 2、Short Side Panel 3、Base 4、Hinged Access Door 5、Pin Shaft
6、Lock Pin 7、Latch 8、Label Card 9、Upper Frame 10、Modular design

Modular Design — No need to discard the entire crate if partially damaged; just replace the corresponding parts to effectively reduce enterprise usage costs.
e Product Details

Pin Shaft Design
The box body is connected with a pin shaft. Latch Fixing Design
Latches are integrated into the short panels.

f Product Details

Security Lock Hole Design
Can be sealed with cable ties or combination locks to protect your products during transportation.

Label Card Slot Design
Label card slots are added to the short panels, facilitating the storage, classification, and identification of goods later on.

g Easy to Use & Simple to Operate

Opening Process

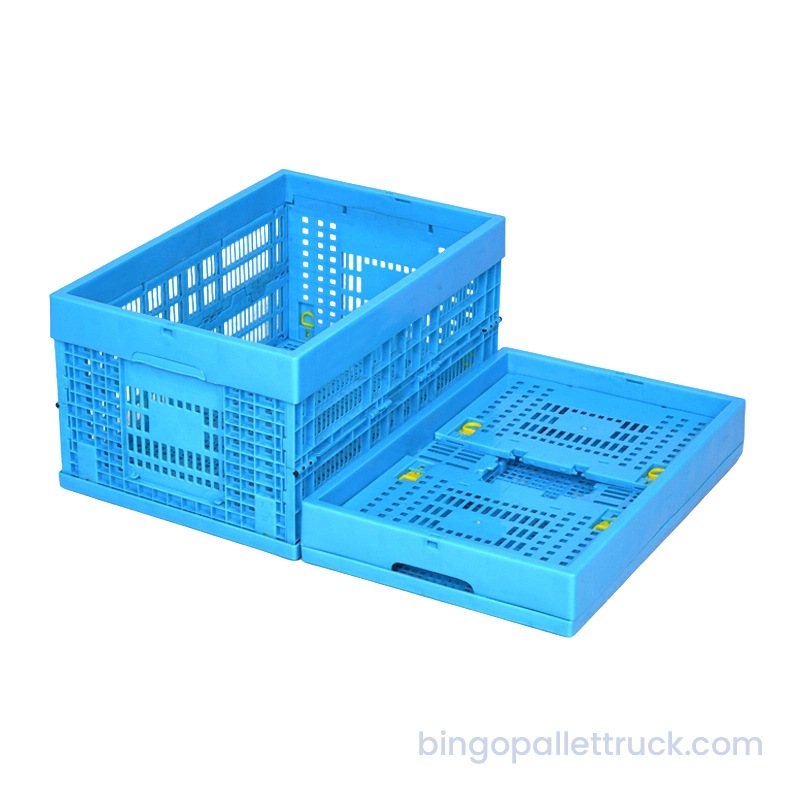

Folding Process
h In Stock & Ready to Ship

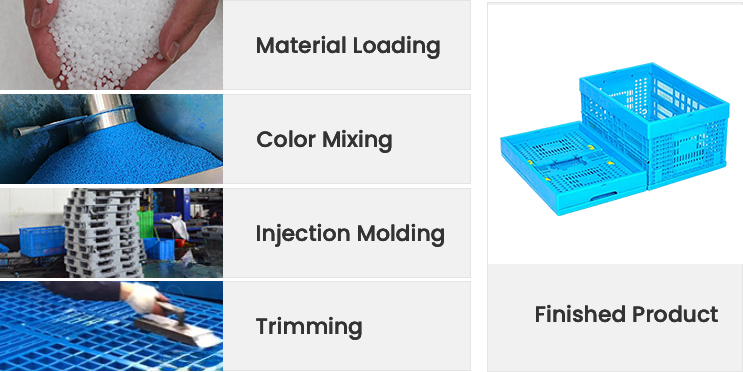

i Strict Quality Control at Every Stage
Manufactured using high-density PP virgin material. We implement strict quality control from raw material sourcing to production, with inspections at every stage to ensure every product meets our high standards.
j Standardized Processes & Strict Standards
Our production follows streamlined and standardized processes to ensure we deliver only qualified products that meet strict standards.
k Our Equipment
