CDD10E

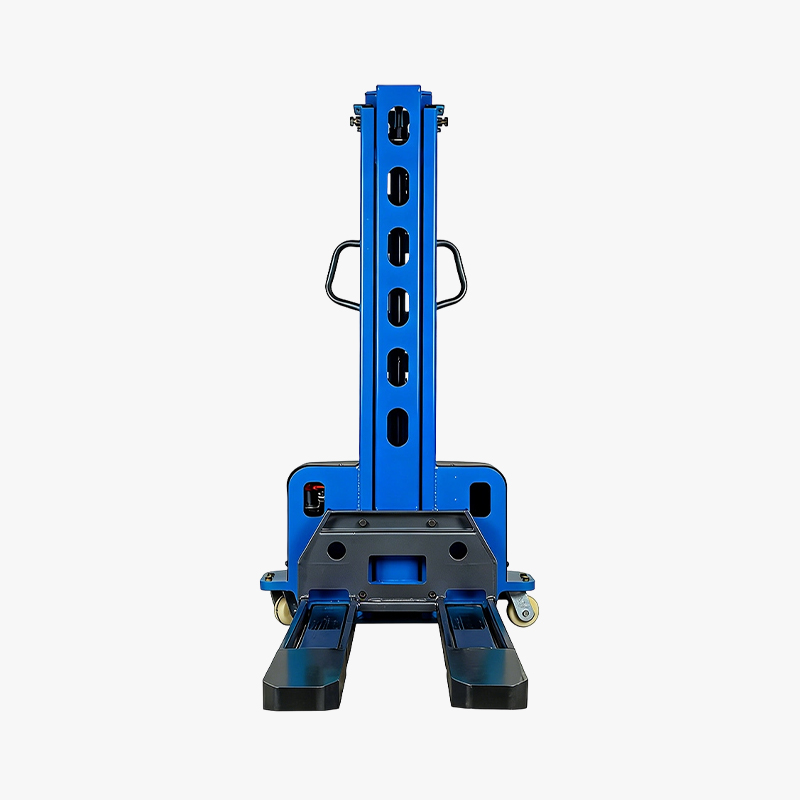

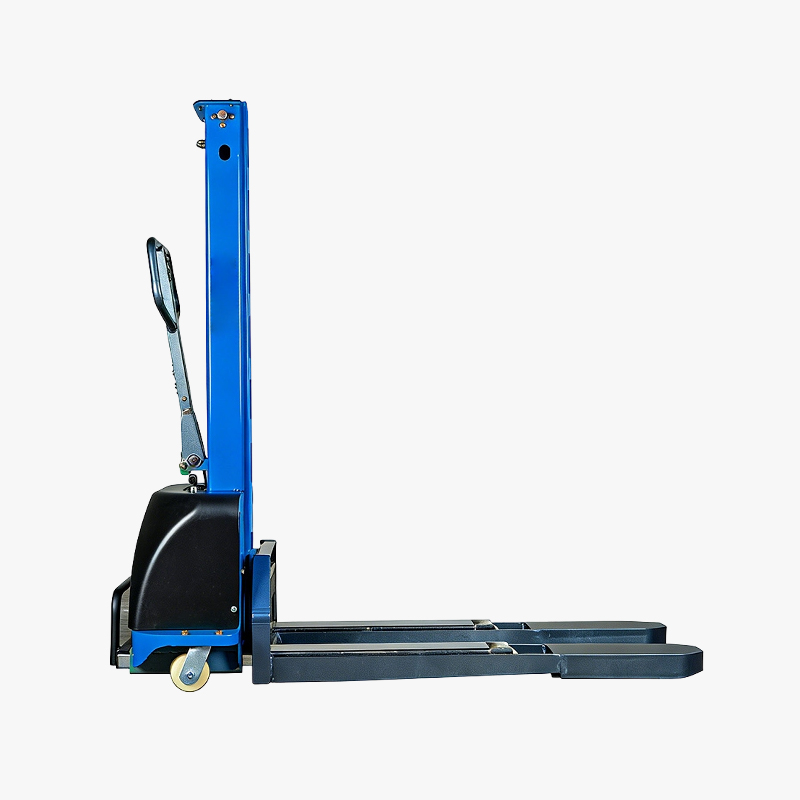

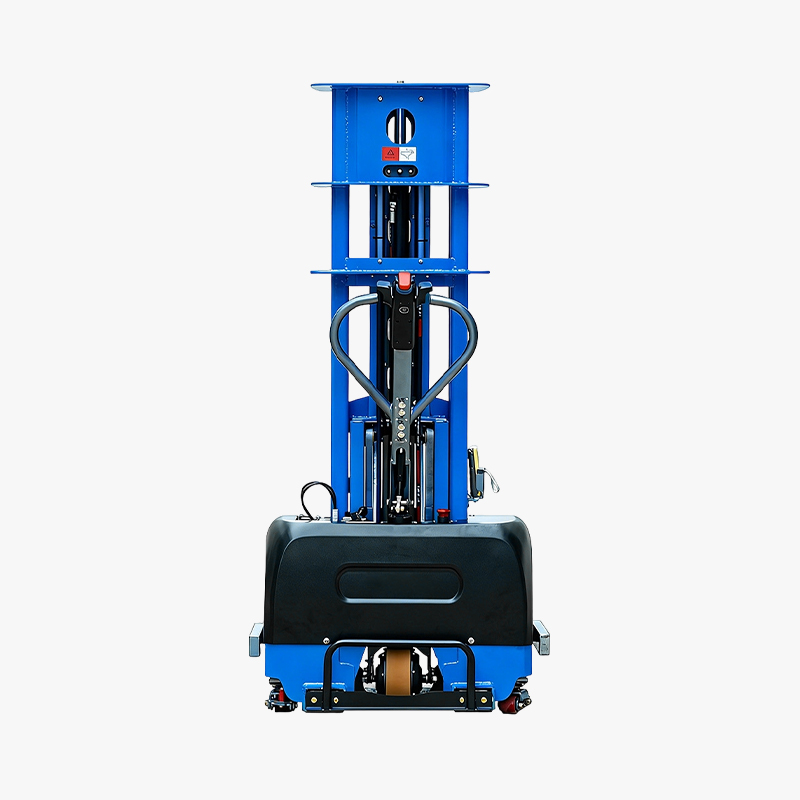

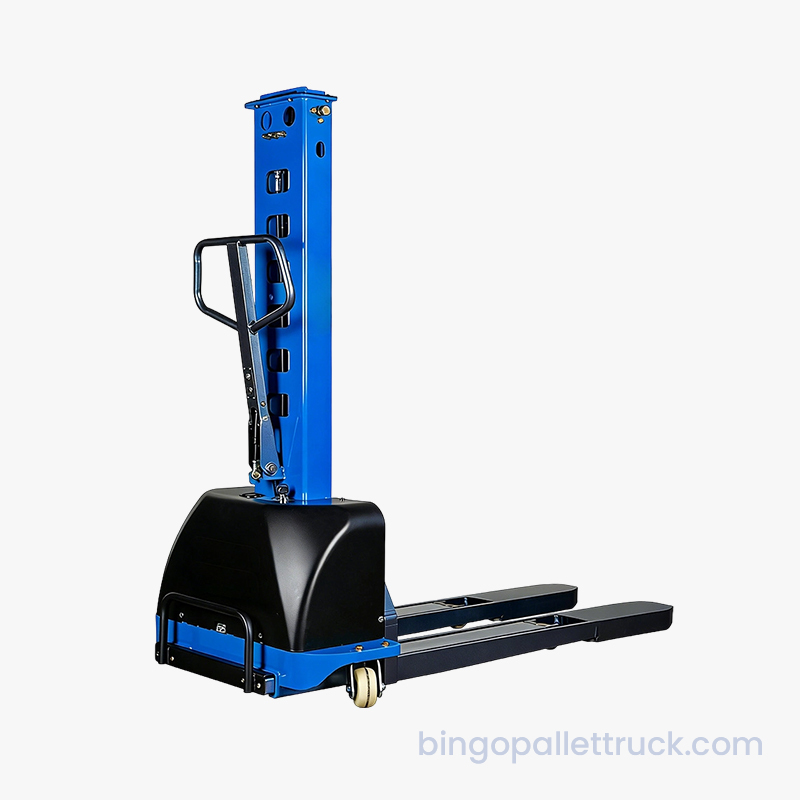

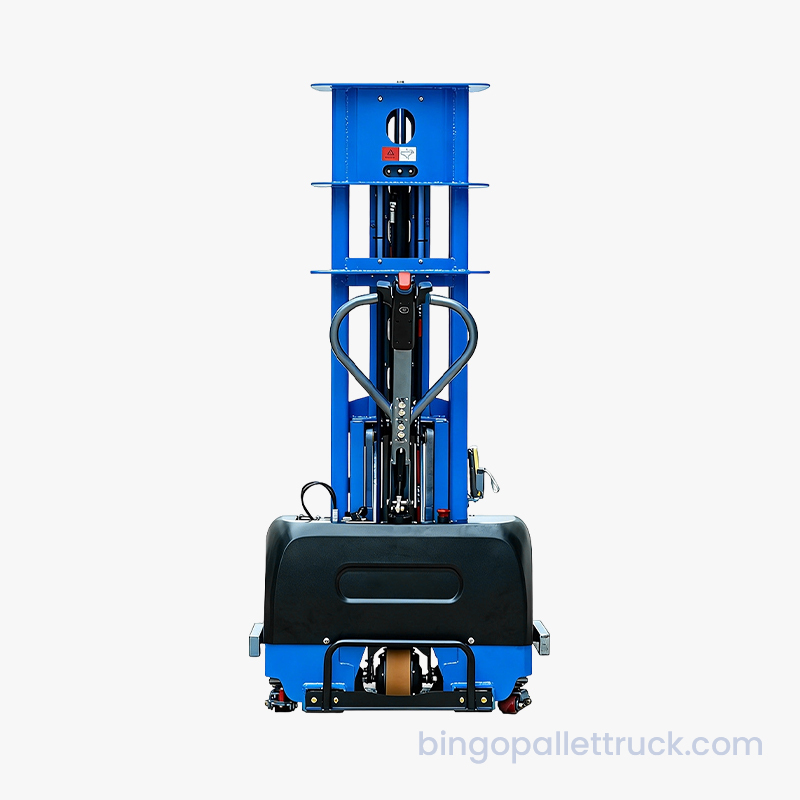

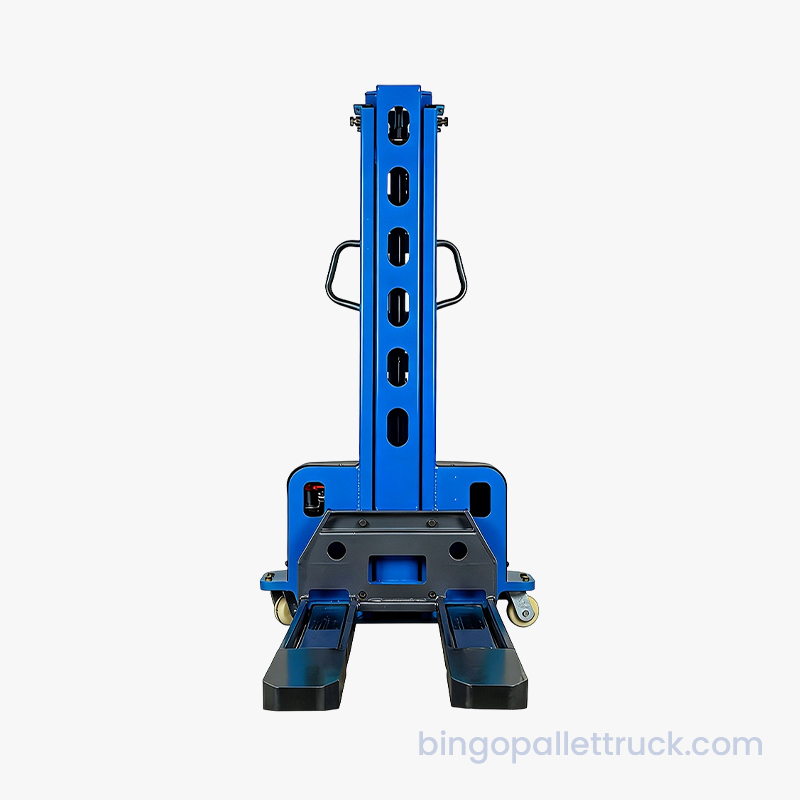

1000kg Full Electric Self-lifting Stacker for Truck Tail Lift and Ground Loading


Characteristics:

Model



CDD10E

Operator type



Pedestrian

Rated load capacity

Q (kg)

1000

Lift height

H (mm)

800/900/1000/1100/1200/1300/1500/1600

Service weight (including battery)

kg

302/316/320/324/328/332/342/347

Load center distance

c(mm)

400

Wheelbase

L0 (mm)

924

Wheel Distance: FR

W1

405/525

Wheel Distance: RR

W2

802





You are here: Products / Electric Stacker / 1000kg Full Electric Self-lifting Stacker for Truck Tail Lift and Ground Loading

Request a Quote

It features a 48V DC brushless control system for lifelong maintenance-free use without carbon brush replacement.

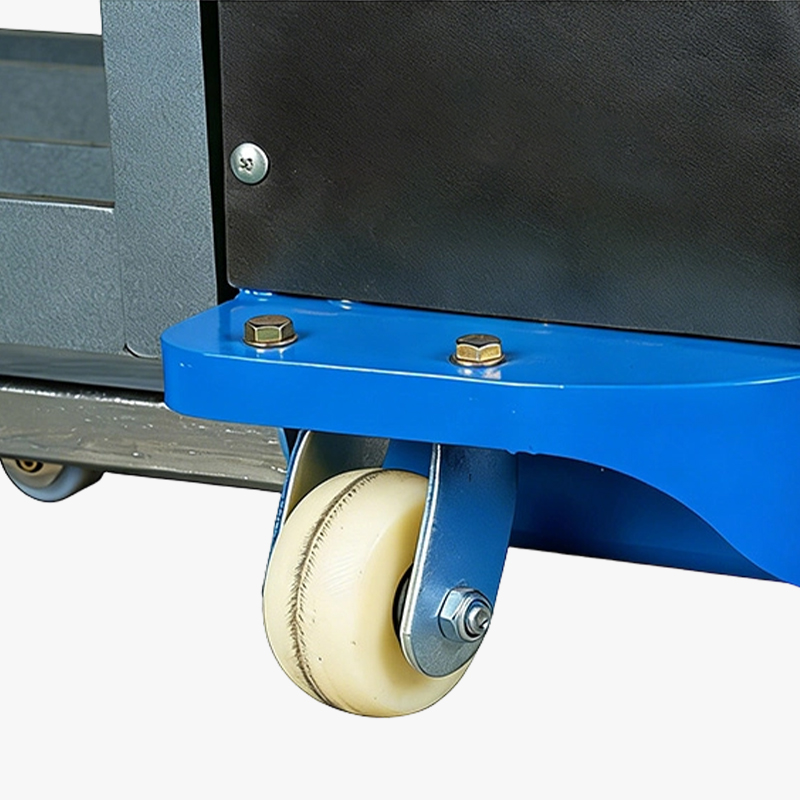

Adopting widened shock-absorbing universal wheels, it ensures optimal stability and passability.

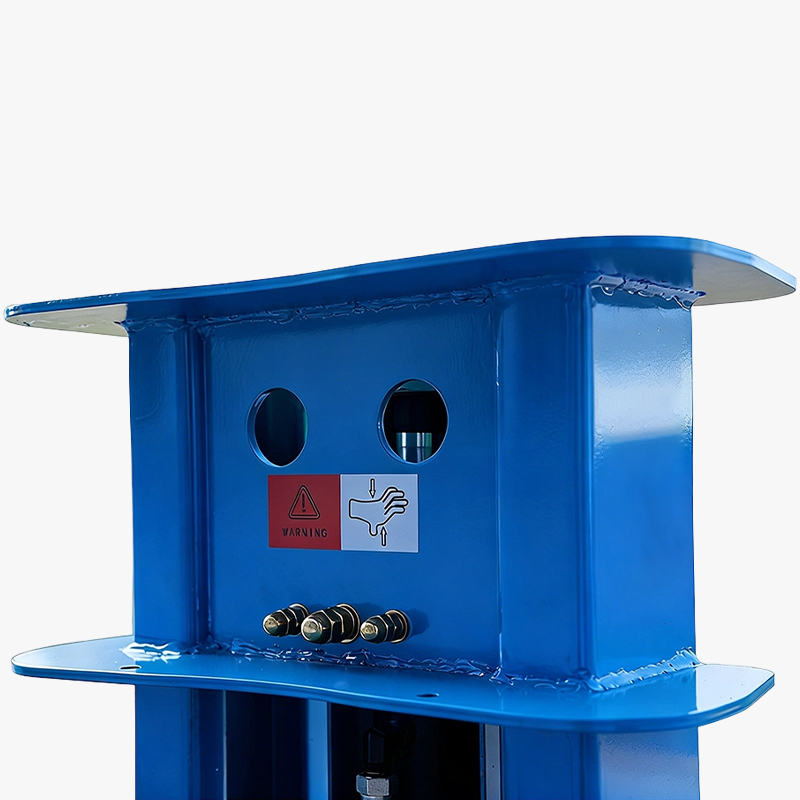

Premium alloy steel construction ensures superior structural strength and long-lasting durability.
Its lightweight design enables more flexible, effortless operation.



  • Wheels:

    Tyre type



    PU

    Front Wheel

    (mm)

    ⌀80×70

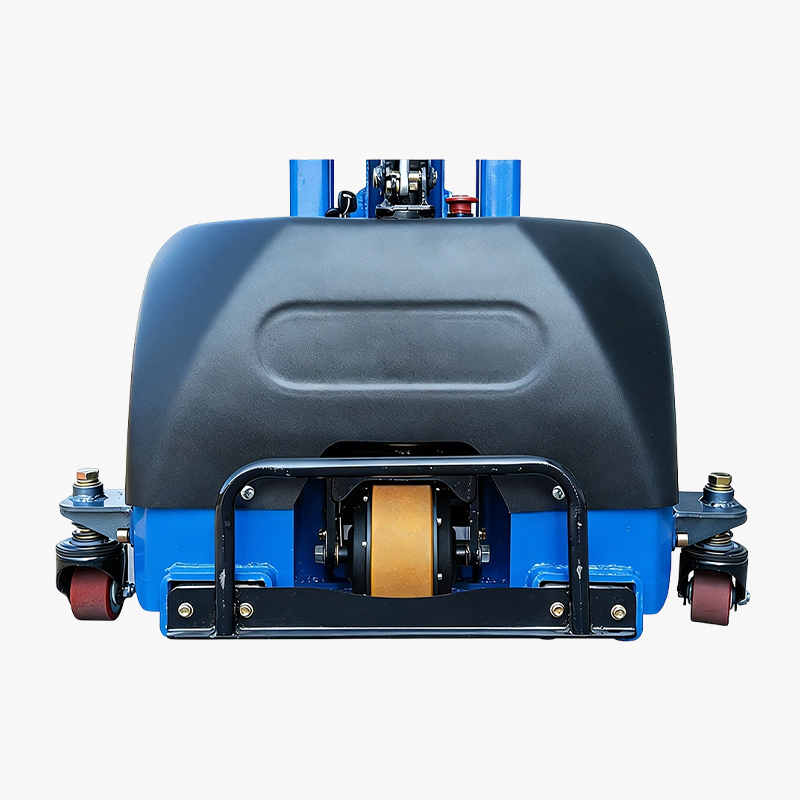

    Drive Wheel

    (mm)

    ⌀185×70

    Universal Wheel

    (mm)

    ⌀75×45

    Middle Wheel Position

    L4 (mm)

    158

    Outrigger Length

    L3 (mm)

    770



  • Performance:

    Lifting speed

    (mm/s)

    55

    Lowering speed

    (mm/s)

    100

    Max. gradeability, laden/unladen

    %

    5/10

    Max. Travel Speed (Crawl Speed/Full Speed)

    (km/h)

    1/3.5



  • Dimensions:

    Overall length

    L1 (mm)

    1603

    Overall width

    W (mm)

    852

    Fork Length

    L2 (mm)

    1195

    Fork Thickness

    B1 (mm)

    70

    Fork Width

    B2 (mm)

    190

    Fork spread

    W3 (mm)

    565/685

    Overall Height (Mast Closed)

    H1 (mm)

    1166/1266/1366/1466/1566/1666/1866/1966

    Overall Height (Max. Fork Height)

    H2 (mm)

    1850/2050/2250/2450/2650/2850/3250/3450



  • Motor and Battery:

    Drive motor

    (kw)

    0.8

    Lift motor

    (kw)

    1.6

    Battery type



    Li-ion

    Battery voltage/nominal capacity

    (V/Ah)

    48/15

    Battery weight

    (kg)

    6/10/10
