Electric Stand-on Pallet Stacker

Integrated Solutions for Warehousing and Logistics

Yancheng Bingo Machinery Equipment Co., Ltd.
CDD15GPS

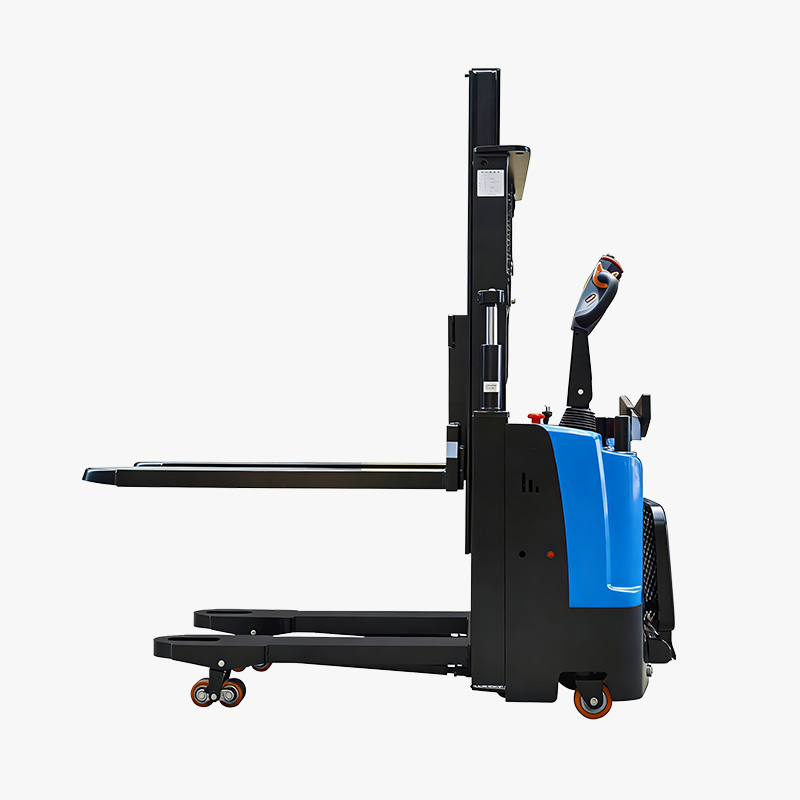

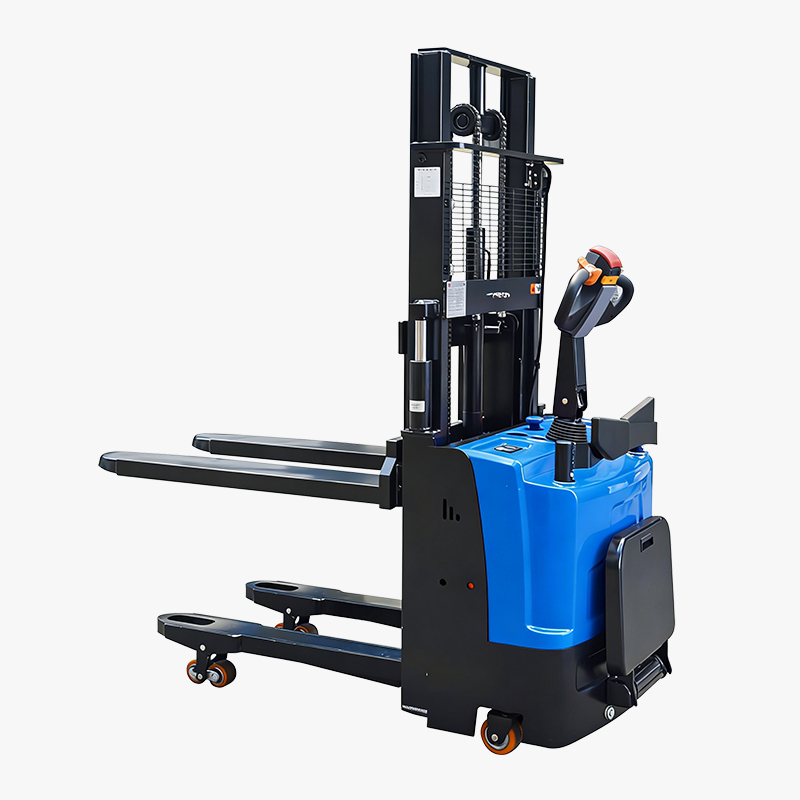

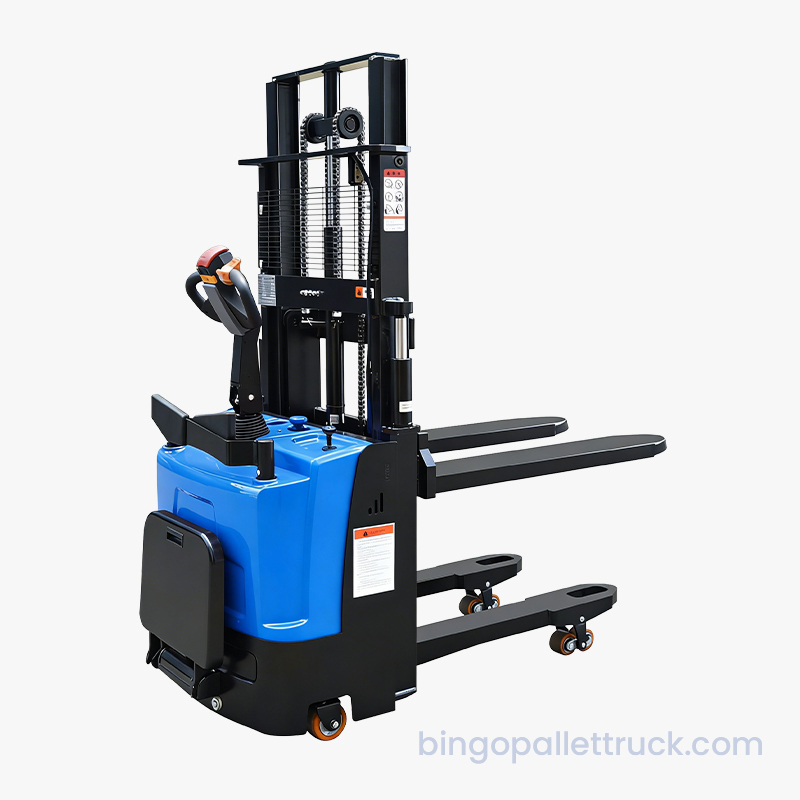

1500kg Double Lift Electric Stand-on Pallet Stacker for Efficient Pallet Stacking


Characteristics:

Model



CDD15GPS

Operator type



Stand-on

Rated load capacity

Q (kg)

1500

Mast type



One-stage

Two-stage

Lift height

h3 (mm)

1600

2000/2500/3000/3500

Service weight

kg

625

655/683/695/730

Load center distance

c(mm)

500

Front overhang

x (mm)

767

Wheelbase

y (mm)

1237

Controller



D2P

You are here: Products / Electric Stacker / 1500kg Double Lift Electric Stand-on Pallet Stacker for Efficient Pallet Stacking

Request a Quote

The elevating chassis offers a 200mm leg lift, enabling smooth navigation on ramps and rough terrain.
The equipment ensures no load loss and no tipping during lifting operations up to 2.5m.
The wire mesh guard isolates operators from suspended loads, effectively avoiding collision risks.
Explosion-proof hydraulic design prevents rapid mast drop when oil pipe bursts.
Emergency reverse travel function helps operators avoid potential injuries.
Integrated built-in charger enables convenient, hassle-free charging.

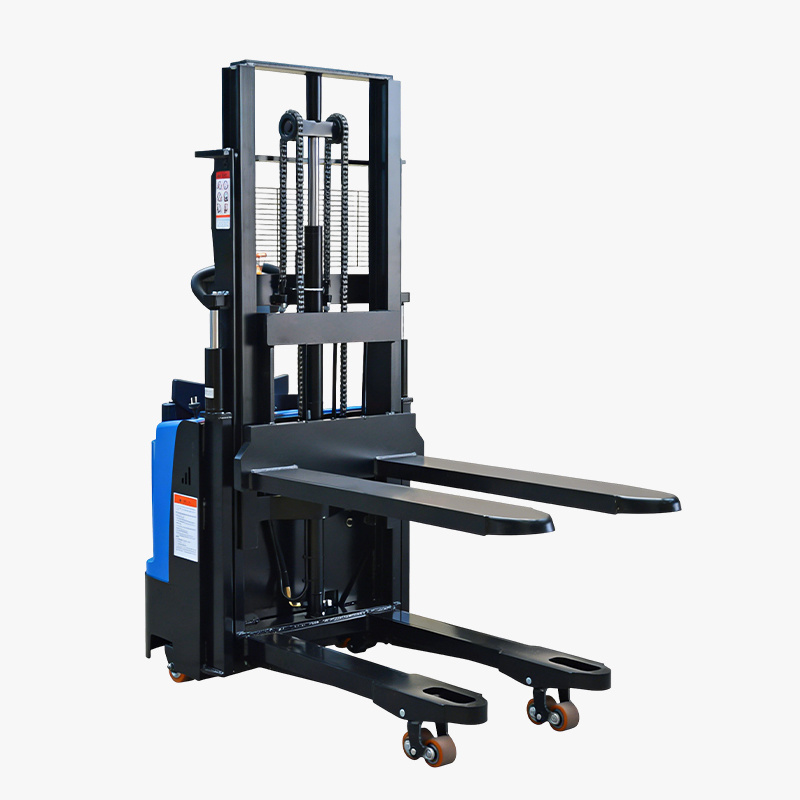

Equipped with dual-chain structure, it achieves steady lifting.
Equipped with a creep speed button, it achieves steady straight movement in narrow spaces.
Forks switch to low-speed mode automatically when lifted to preset height.

  • Wheels:

    Tyre type



    PU

    Tyre size, front

    ⌀×w (mm)

    ⌀210×75

    Tyre size, rear

    ⌀×w (mm)

    ⌀80×60

    Balance wheel

    ⌀×w (mm)

    ⌀115×55

    Wheels, number front/rear (x=drive wheels)



    1x, 2/4



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    3.5/4.0

    Lifting speed, laden/unladen

    (mm/s)

    90/155

    Lowering speed, laden/unladen

    (mm/s)

    100/100

    Max. gradeability, laden/unladen

    %

    4/7

    Service brake



    Electromagnetic



  • Dimensions:

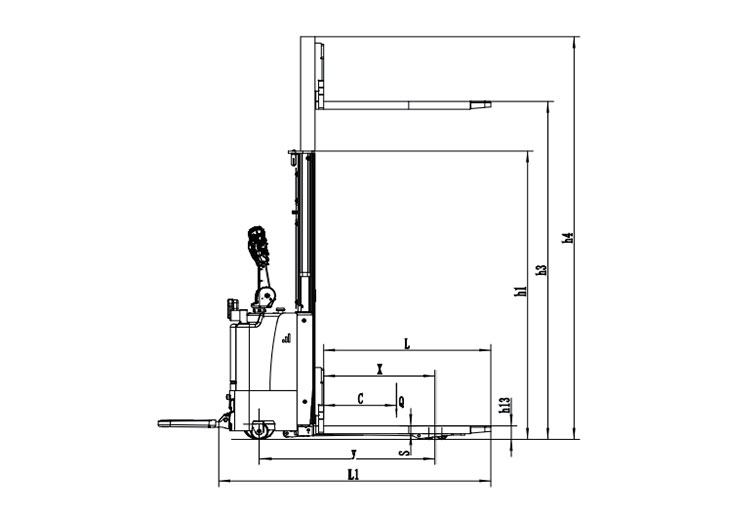

    Lowered height

    h13 (mm)

    ≤95

    Height, mast lowered

    h1 (mm)

    2093

    1593/1843/2000

    Height, mast extended

    h4 (mm)

    2213

    2698/3198/3698

    Overall length (excluding pedals)

    L1 (mm)

    1872

    Length to face of forks

    L2 (mm)

    723

    Overall width

    b1/b2 (mm)

    846

    Fork dimensions

    s/e/l (mm)

    55/180/1150

    Fork spread

    b5 (mm)

    685

    Ground clearance, center of wheelbase

    m2 (mm)

    28

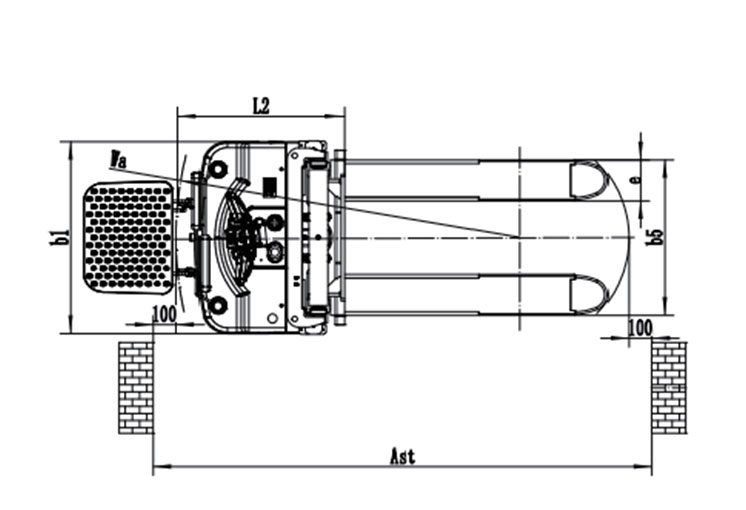

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    2359

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    2287

    Turning radius

    Wa (mm)

    1650



  • Motor and Battery:

    Drive motor rating S2 60 min

    (kw)

    0.75

    Lift motor rating at S3 15%

    (kw)

    2.2

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    24/100

    Battery weight

    (kg)

    32.5×2

    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Mechanical


    Option:

    Curtis controller

    100Ah Li-ion battery
