SBD20

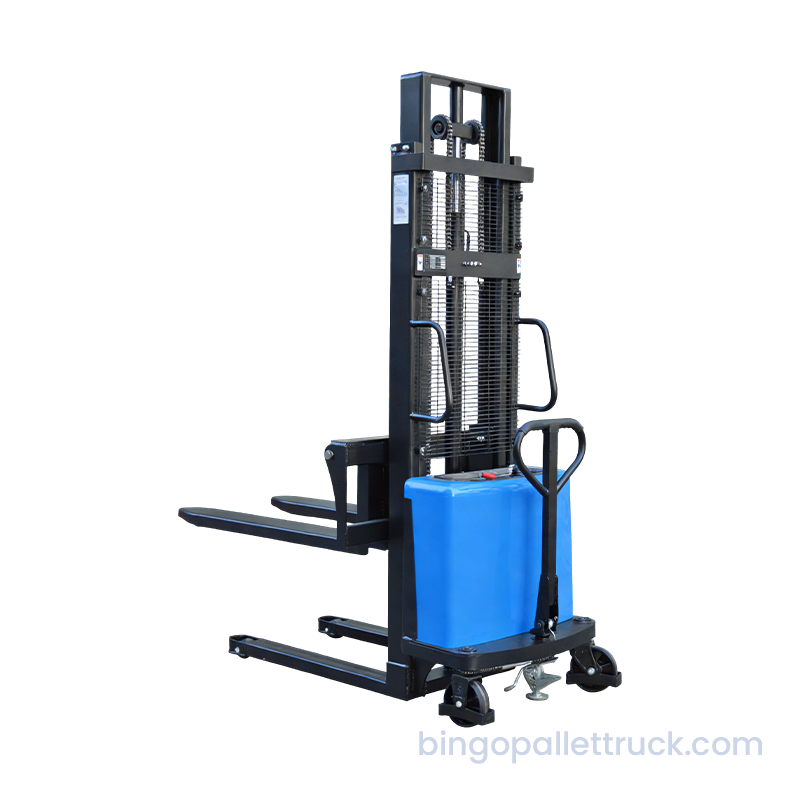

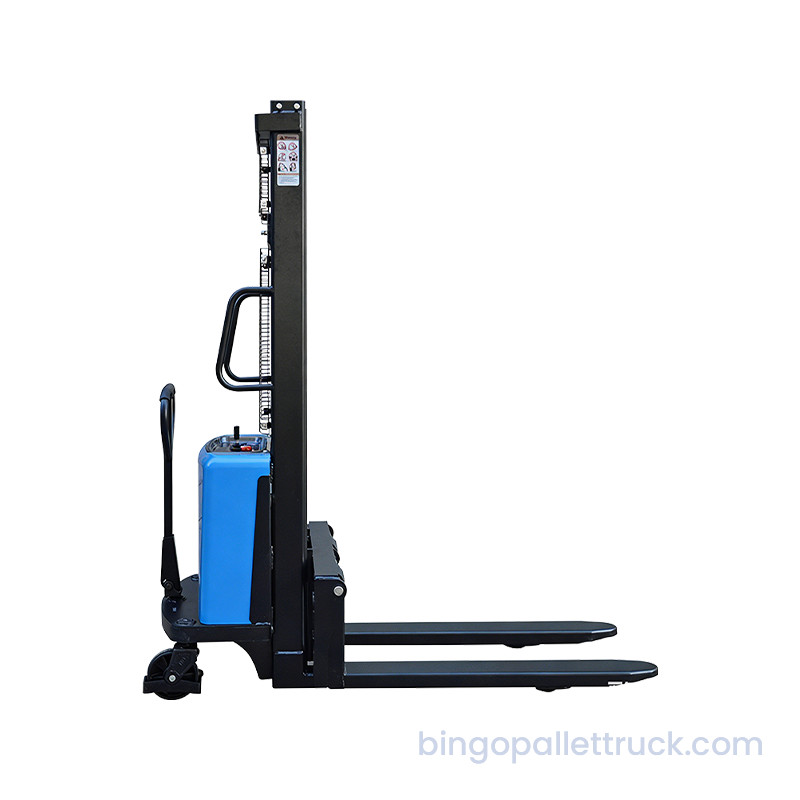

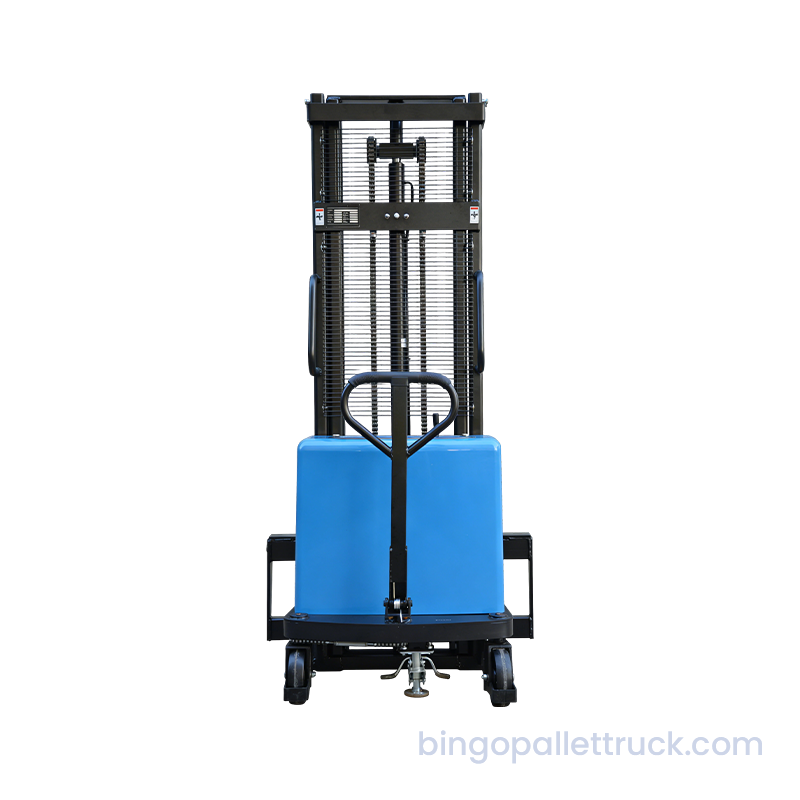

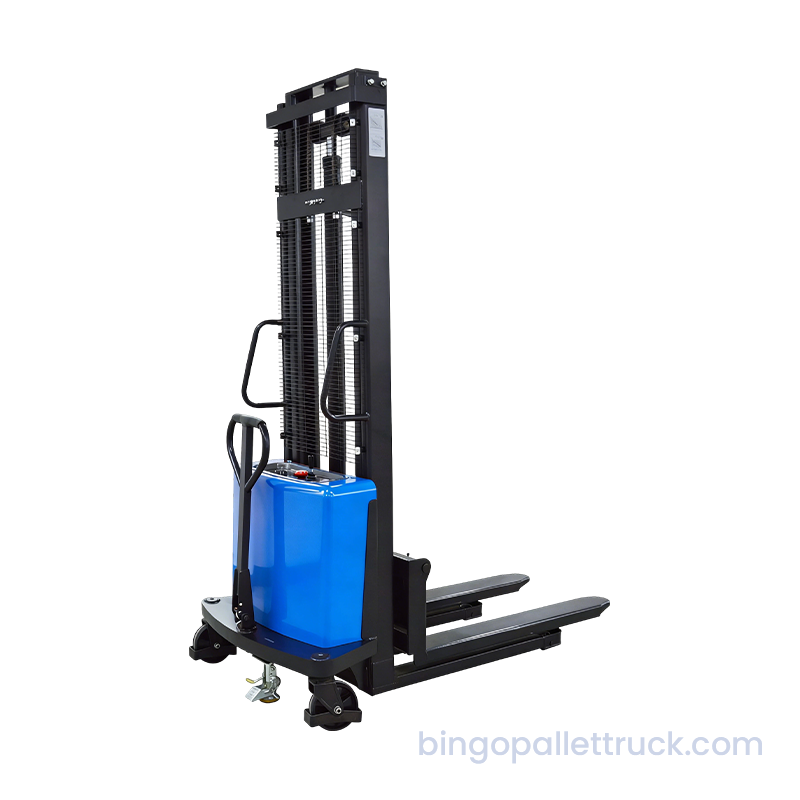

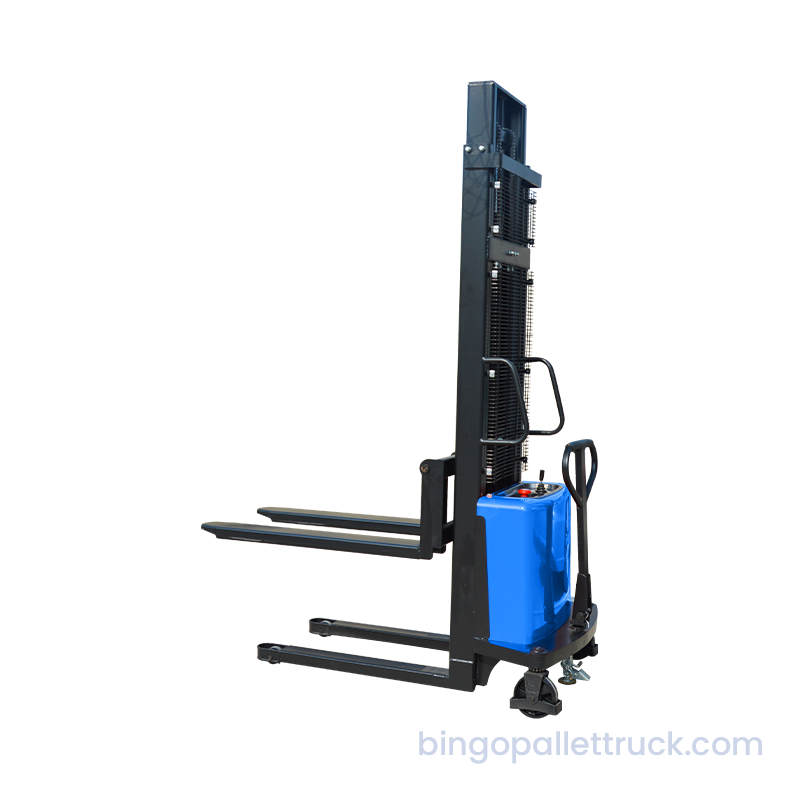

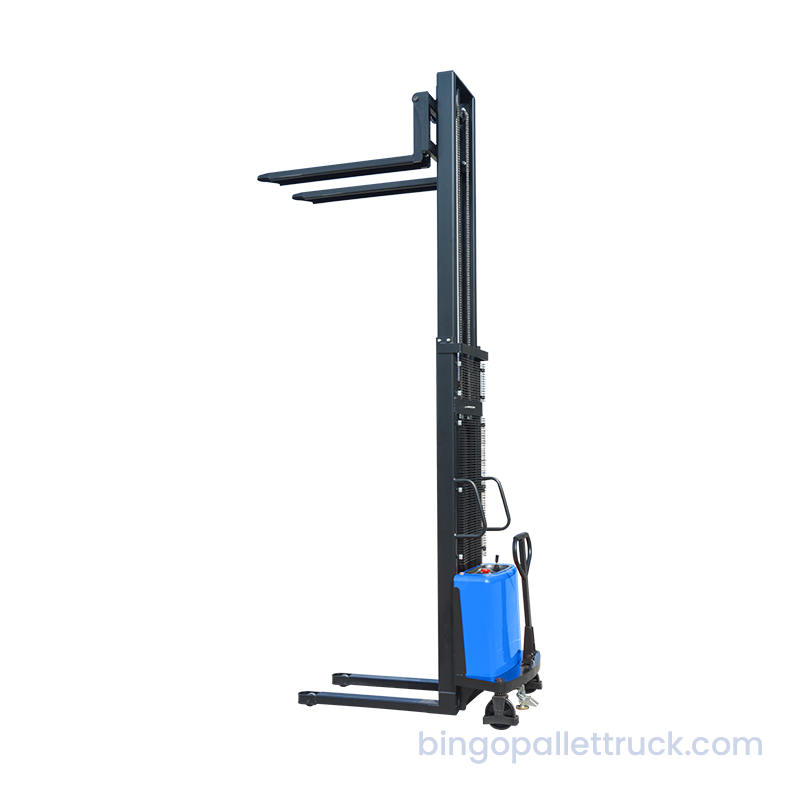

2000kg Heavy Duty Semi-Electric Stacker for Industrial Stacking


Characteristics:

Model



SBD15

Operator type



Hand

Rated load capacity

Q (kg)

1500



Mast type





One-stage

Two-stage

Lift height

h3 (mm)

1600

2000/2500/3000/3500

Service weight

kg

340

412/420/430/465

Load center distance

c(mm)

500

Front overhang

x (mm)

733

Wheelbase

y (mm)

1290

You are here: Products / Semi-Electric Stacker / 2000kg Heavy Duty Semi-Electric Stacker for Industrial Stacking

Request a Quote

Anti-overturn structure maintains stable loading height up to 2.5m with no cargo displacement.
Stationary mast wire mesh barrier keeps operators away from goods for maximum safety protection.
Explosion-proof hydraulic system avoids abrupt mast falling in case of hydraulic pipe rupture.
Double-chain configuration offers more stable lifting and lowering performance.

  • Wheels:

    Tyre type



    Nylon

    Tyre size, front

    ⌀×w (mm)

    Nylon

    Tyre size, rear

    ⌀×w (mm)

    ⌀80×60

    Balance wheel

    ⌀×w (mm)

    ⌀180×50

    Wheels, number front/rear (x=drive wheels)



    0x, 2/2



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    /

    Lifting speed, laden/unladen

    (mm/s)

    55/105

    Lowering speed, laden/unladen

    (mm/s)

    Controlled

    Service brake



    Mechanical

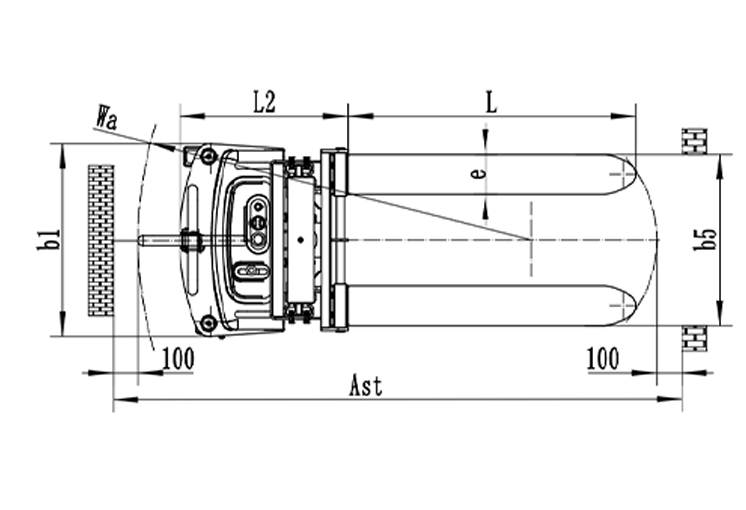

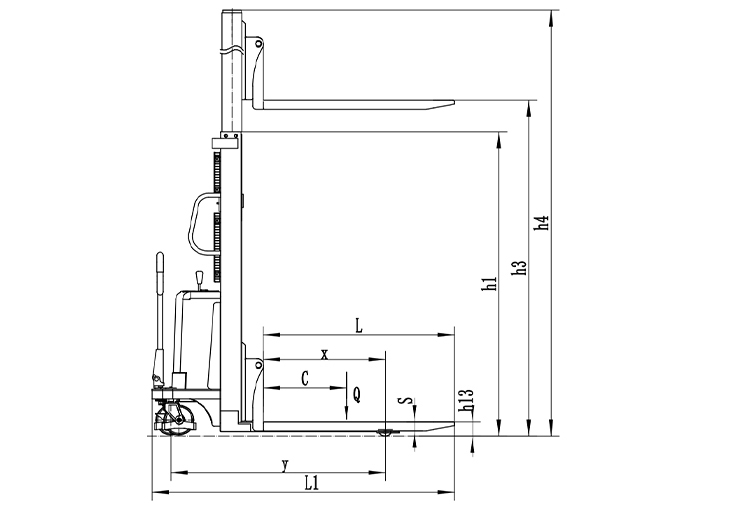

  • Dimensions:

    Lowered height

    h13 (mm)

    88

    Height, mast lowered

    h1 (mm)

    2083

    1583/1833/2083/2333

    Height, mast extended

    h4 (mm)

    2083

    2568/3068/3568/4068

    Overall length

    L1 (mm)

    1822

    Length to face of forks

    L2 (mm)

    672

    Overall width

    b1/b2 (mm)

    771

    Fork dimensions

    s/e/l (mm)

    55/165/1150

    Fork spread

    b5 (mm)

    550/685

    Ground clearance, center of wheelbase

    m2 (mm)

    28

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    2460

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    2387

    Turning radius

    Wa (mm)

    1575



  • Motor and Battery:

    Lift motor rating at S3 15%

    (kw)

    1.6

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    12/120

    Battery weight

    (kg)

    35


    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Mechanical


    Option:

    Li-ion battery
