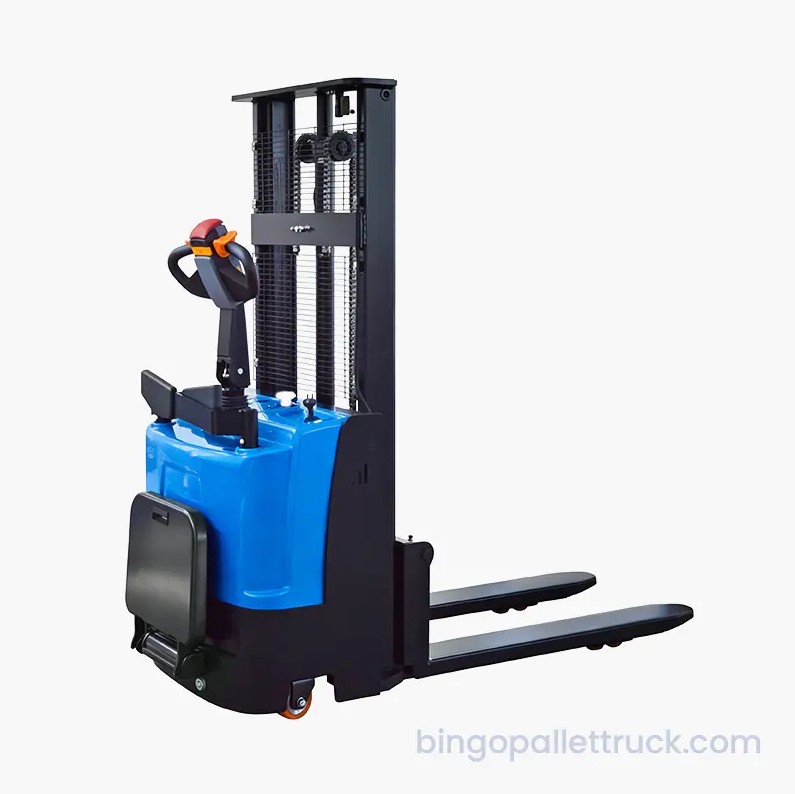

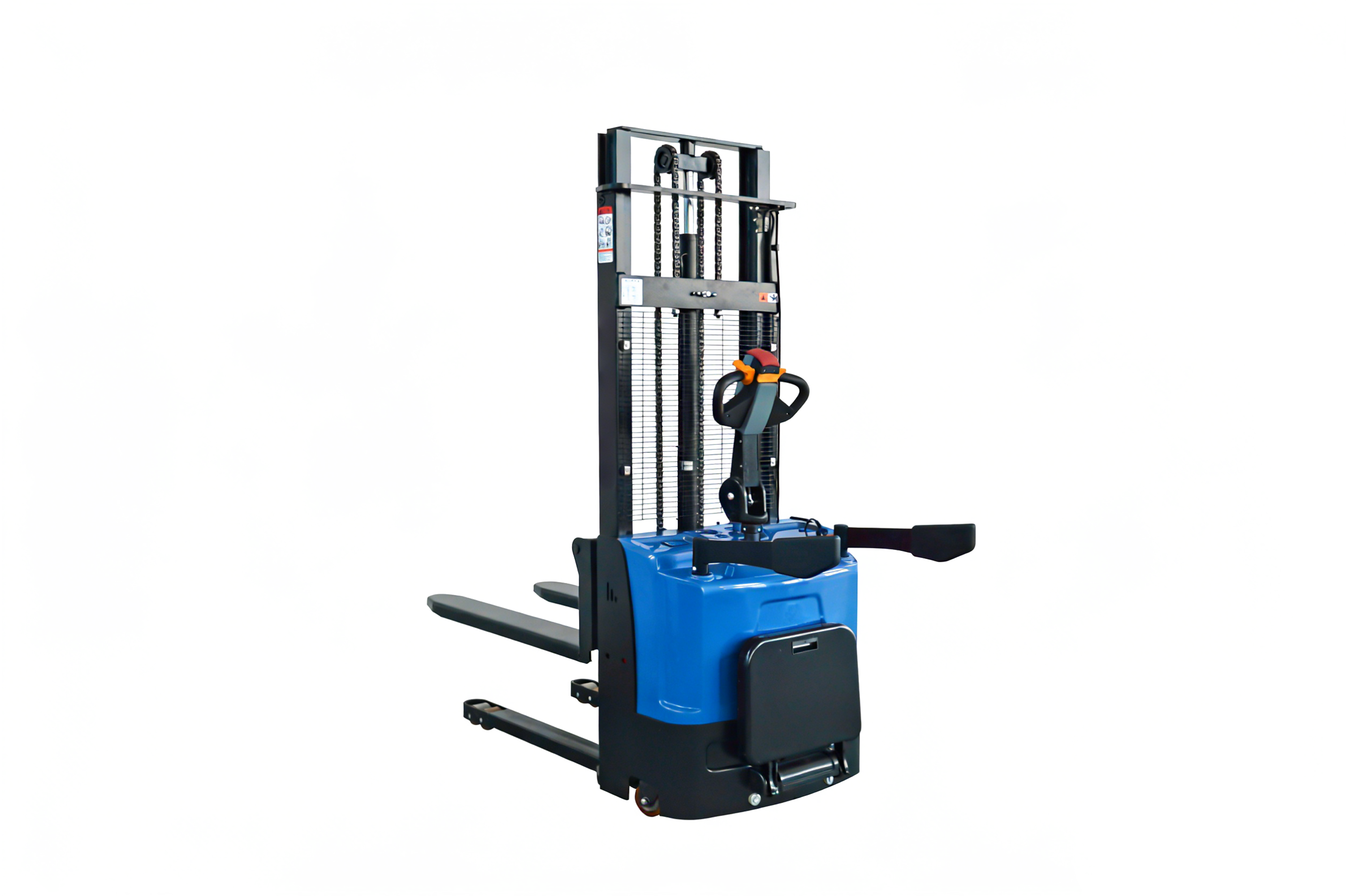

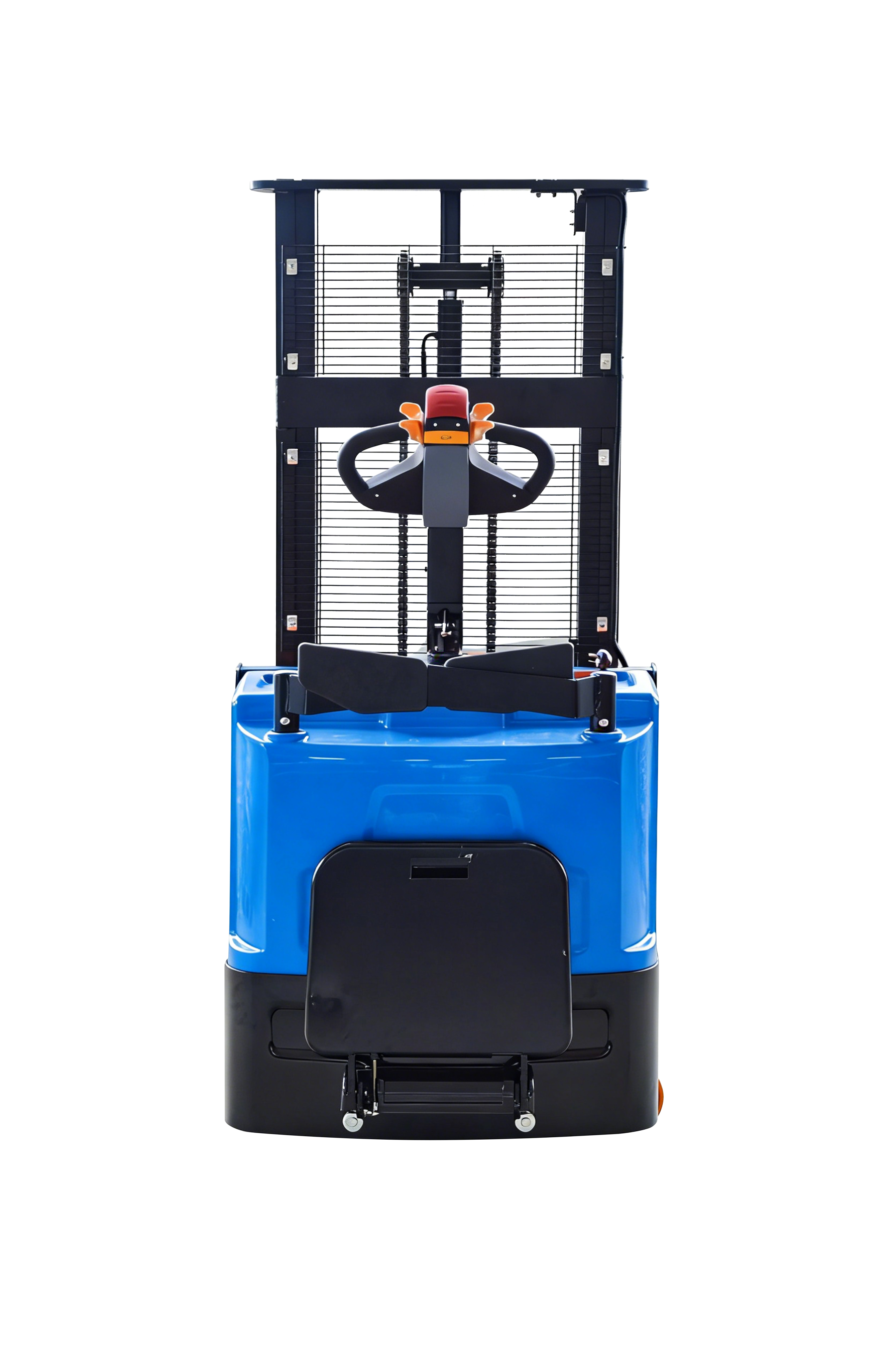

BINGO MACHINERY Launches CDD15G 1500kg Electric Stand-on Stacker for Versatile Warehouse Stacking Operations

Bingo Machinery, a trusted global supplier of smart warehouse handling equipment, officially launches the brand-new CDD15G 1.5-ton stand-on electric stacker. This flexible stacking equipment is engineered for medium-load rack storage, narrow aisle handling and daily warehouse cargo turnover, balancing compact maneuverability, operator safety and stable lifting performance.

Core Product Advantages

1. Flexible Narrow-space Operation Design

Foldable pedal structure supports low-speed traveling mode to move freely in narrow aisles and confined working areas, adapting to compact warehouse layouts perfectly.

2. Comprehensive Safety Protection Mechanisms

Fixed mast mesh safety barrier physically separates operators from loaded goods for collision prevention; Explosion-proof hydraulic structure effectively stops sudden mast descent once hydraulic pipes rupture; Emergency reverse travel function instantly reverses direction to avoid accidental injuries during operation.

3. Reliable Lifting and Convenient Usage

Dual-chain lifting structure delivers smoother, steadier lifting movement and extended service life; Built-in integrated charger eliminates extra charging equipment needs and simplifies daily charging procedures.

Full Technical Parameter Table

Category Item Specification
Basic Info Model CDD15G
Operator Type Stand-on
Rated Load Capacity 1500kg
Mast and Lifting Mast Type Two-stage
Lifting Height 1600/2000/2500/3000/3500mm
Lowered Mast Height 2083mm
Fully Extended Mast Height 1583/1833/1983/2333/2568/3068/3483/4068mm
Body Dimensions Overall Length 1893mm
Overall Width 850mm
Wheelbase 1238mm
Turning Radius 1482mm
Load Center Distance 500mm
Wheels Wheel Material PU
Front Wheel Size Φ210×75mm
Rear Wheel Size Φ80×60mm
Balance Wheel Size Φ115×55mm
Performance Travel Speed (Loaded/Unloaded) 4.0 / 4.5 km/h
Lifting Speed (Loaded/Unloaded) 100 / 155 mm/s
Lowering Speed (Loaded/Unloaded) 100 / 110 mm/s
Max Gradability (Loaded) 4.7%
Power System Drive Motor Rating 0.75kW (S2 60 min)
Lift Motor Rating 2.2kW (S3 15%)
Battery Type Lead-acid
Battery Voltage/Capacity 24V / 100Ah
Battery Weight 32.5×2 kg
Control and Accessories Controller D2P
Service Brake Electromagnetic
Steering Design Mechanical
Sound Pressure Level 69 dB(A)
Optional Upgrades 1. Curtis intelligent controller
2. 100Ah lithium-ion battery

Wide Application Scenarios

  1. Medium-sized retail warehouses and supermarket stock stacking
  2. Light manufacturing factories for raw material and finished goods storage
  3. E-commerce sorting centers with narrow aisle layouts
  4. Logistics transit stations for medium-weight pallet loading and stacking work

Official Statement

“The CDD15G stand-on electric stacker is tailored for customers with 1.5-ton medium-load handling demands,” said Kevin Meng, Export Manager of Bingo Machinery. “Its foldable pedal narrow-space mode, full set of safety protections and stable dual-chain lifting make it highly adaptable for various compact warehouse scenarios. It is a cost-effective flexible stacking solution for small and medium logistics enterprises worldwide.”

Order and Custom Service Information

The CDD15G electric stand-on stacker is now available for global bulk orders. Curtis controller and lithium battery upgrade options can be configured based on customers’ on-site operation requirements. For detailed quotations, technical drawings and customized solution consultation, please visit our official website:www.bingopallettruck.com

About Bingo Machinery

Bingo Machinery focuses on the R&D, production and global export of full-series warehouse logistics equipment, covering electric pallet trucks, manual stackers, stand-on reach stackers, plastic pallets and turnover storage containers. We provide one-stop customized smart logistics solutions for cooperative clients across Europe, Southeast Asia, Latin America, the Middle East and Africa, with stable product quality, competitive bulk pricing and comprehensive after-sales service support.
