CPD16J

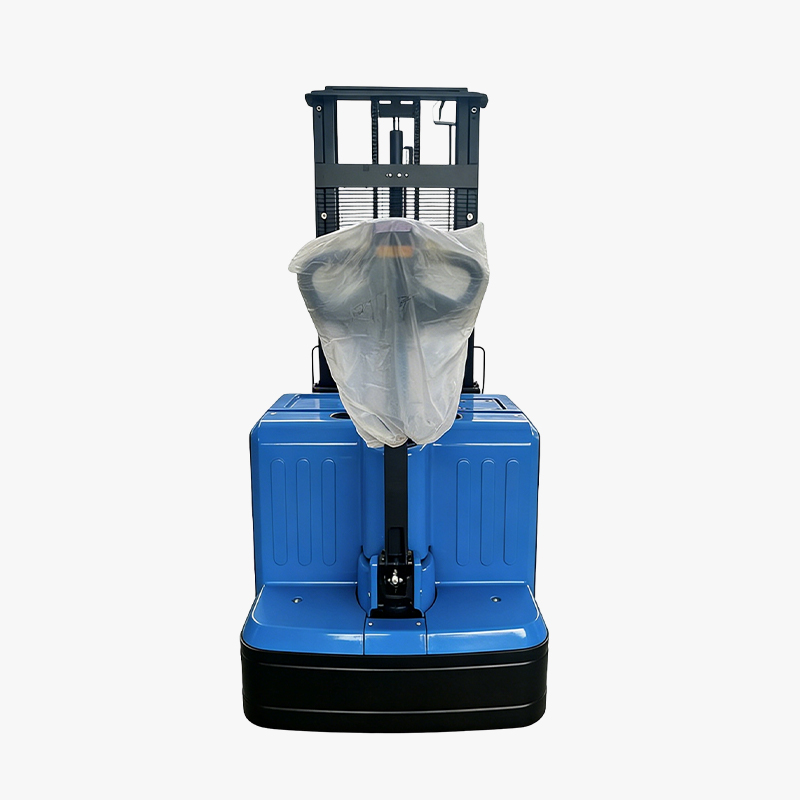

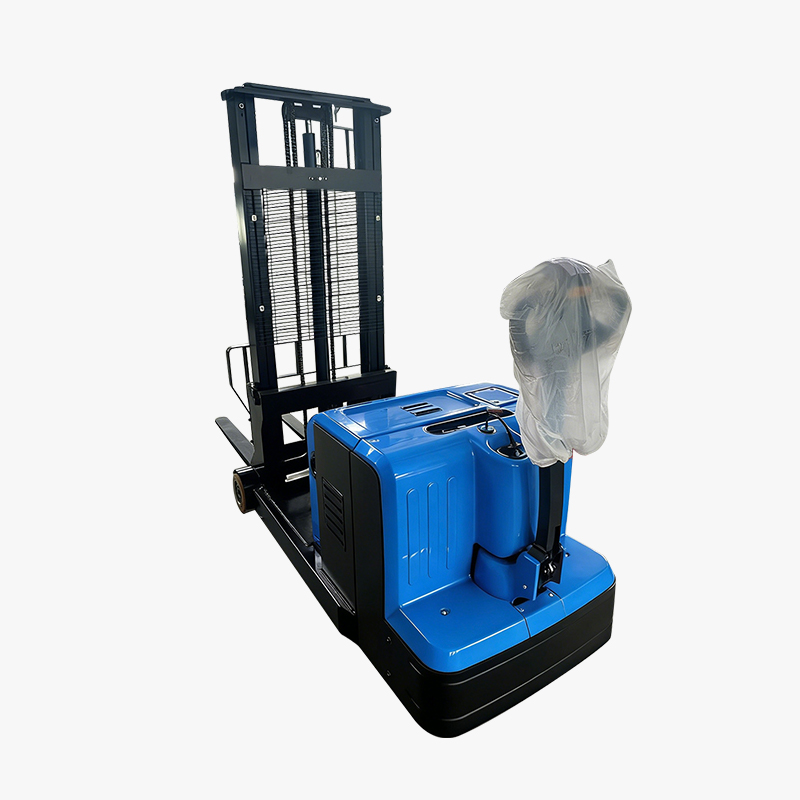

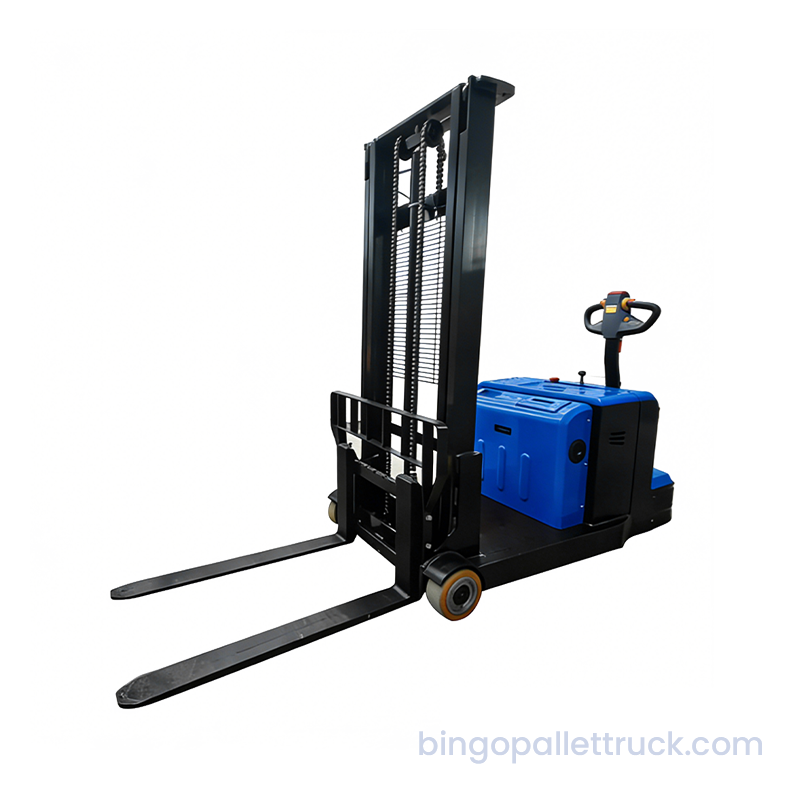

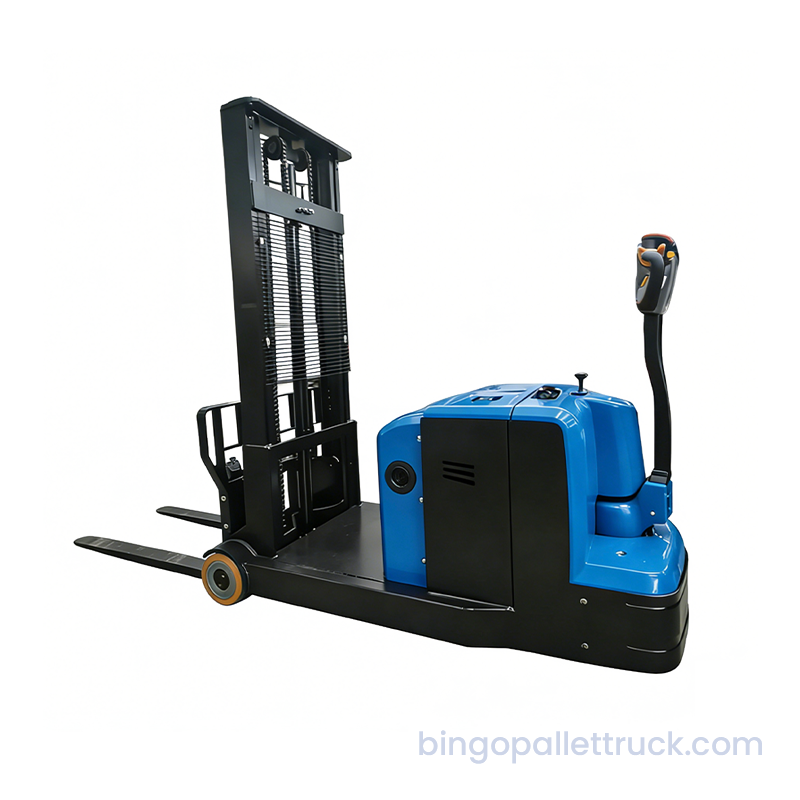

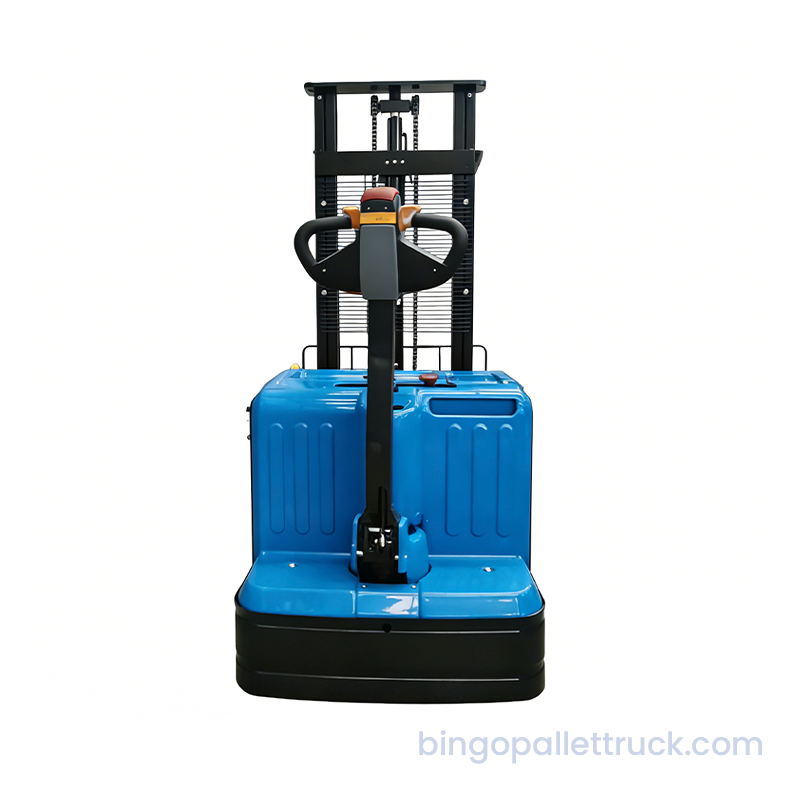

1500kg Counterbalanced Electric Walkie Stacker

Characteristics：

Model		CPD16J
Operator type		Pedestrian
Rated load capacity	Q (kg)	1500
Mast type		One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500
Rated capacity at maximum lift height	kg	1500	1500/1500/1350/1200
Service weight	kg	1440	1600/1635/1685/1725
Load center distance	c（mm)	500
Front overhang	x (mm)	118
Wheelbase	y (mm)	1490
Controller		KTZ48C15Z0UC

You are here: Products / Electric Stacker / 1500kg Counterbalanced Electric Walkie Stacker

Request a Quote

Advantages Detailed Specs

Ventilation holes in the electrical compartment ensure excellent heat dissipation, thus guaranteeing the stable operation of batteries and other components
Hi-Lo speed button for quick and easy speed switching, meeting diverse operational needs.
Detachable high-strength rear cover facilitates hassle-free maintenance and replacement of drive and auxiliary wheels.
Equipped with a ramp anti-slip function to ensure operational safety.

Wheels:

Tyre type

PU

Tyre size, front

⌀×w (mm)

⌀250×80

Tyre size, rear

⌀×w (mm)

⌀210×85

Wheels, number front/rear (x=drive wheels)

1x, 0/2

Performance:

Travel speed, laden/unladen	(km/h)	4.5/5.0
Lifting speed, laden/unladen	(mm/s)	100/155
Lowering speed, laden/unladen	(mm/s)	100/110
Max. gradeability, laden/unladen	%	5/8
Service brake		Electromagnetic

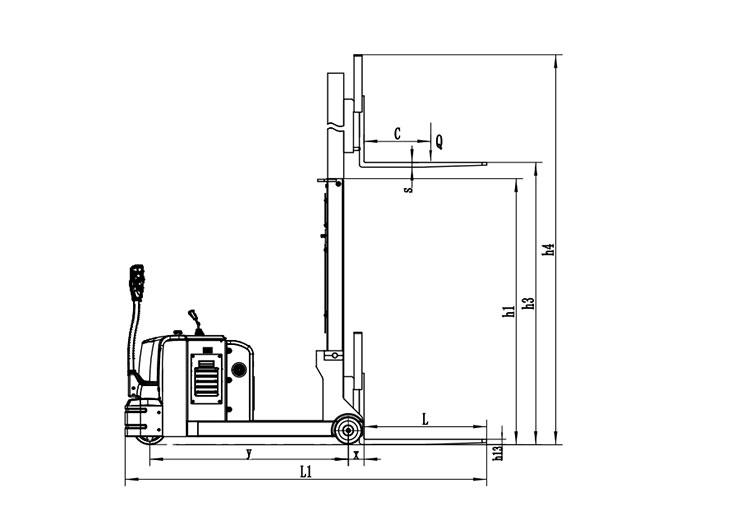

Dimensions:

Lowered height	h13 (mm)	≤65
Height, mast lowered	h1 (mm)	2095	1595/1845/1995/2345
Height, mast extended	h4 (mm)	2095	2695/3197/3700/4200
Overall length	L1 (mm)	2863
Length to face of forks	L2 (mm)	1753
Overall width	b1/b2 (mm)	950
Fork dimensions	s/e/l (mm)	40/100/1070
Fork spread	b5 (mm)	210-685
Ground clearance, center of wheelbase	m2 (mm)	60

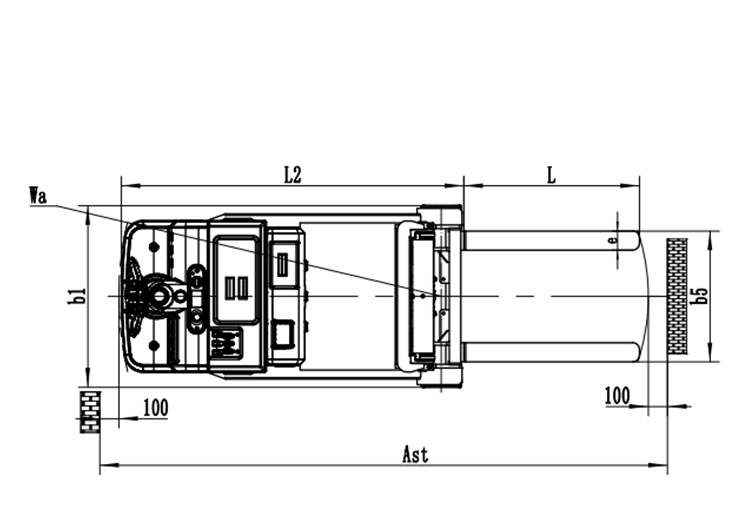

Aisle width for pallets 1000×1200 crossways	Ast (mm)	3302
Aisle width for pallets 800×1200 lengthways	Ast (mm)	3274
Turning radius	Wa (mm)	1688

Motor and Battery:

Drive motor rating S2 60 min	（kw)	1.2
Lift motor rating at S3 15%	（kw)	2.2
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	48/100
Battery weight	（kg)	27.5×4

Others：

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical

Option：

Fork tilt

Fork side shift

Foldable fork design

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀250×80
Tyre size, rear	⌀×w (mm)	⌀210×85
Wheels, number front/rear (x=drive wheels)		1x, 0/2
