CDDA15

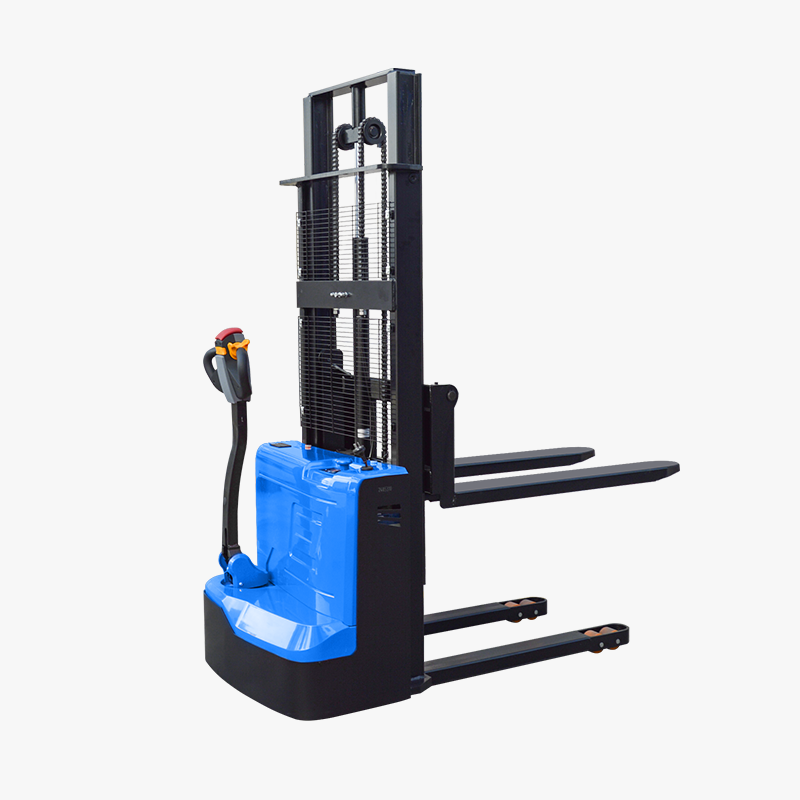

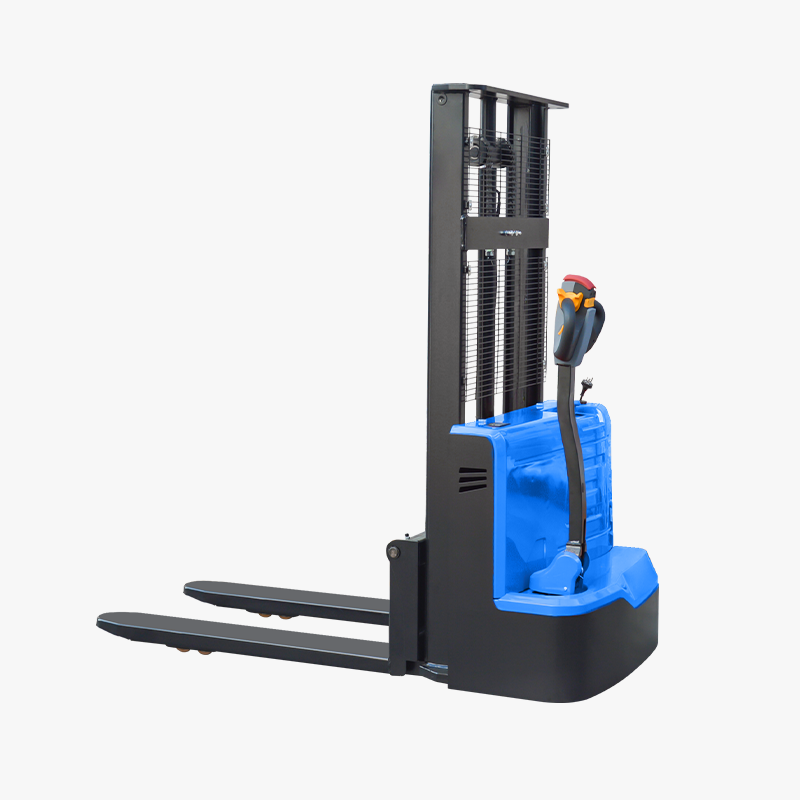

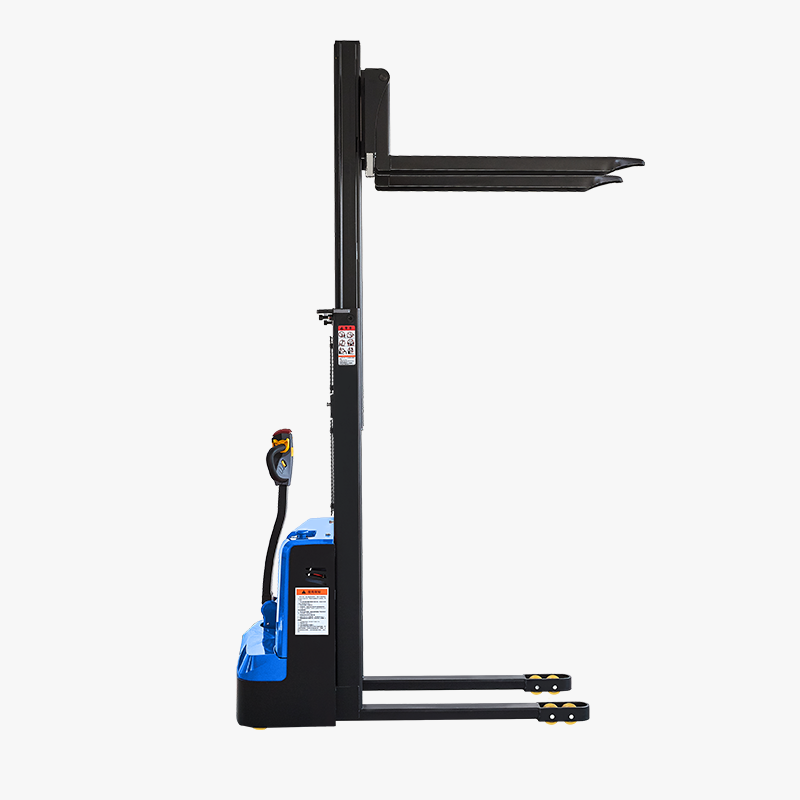

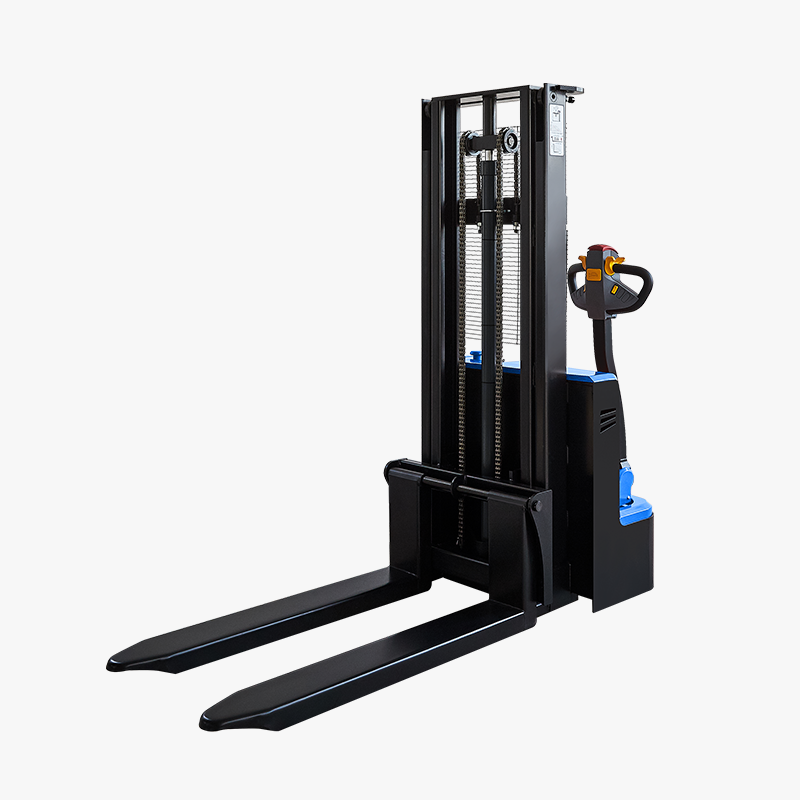

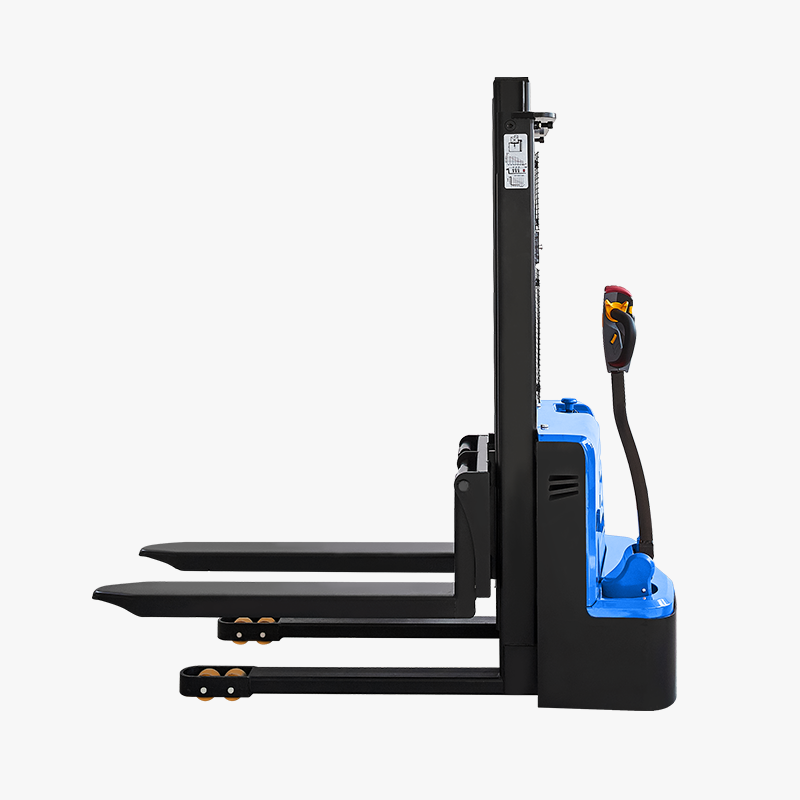

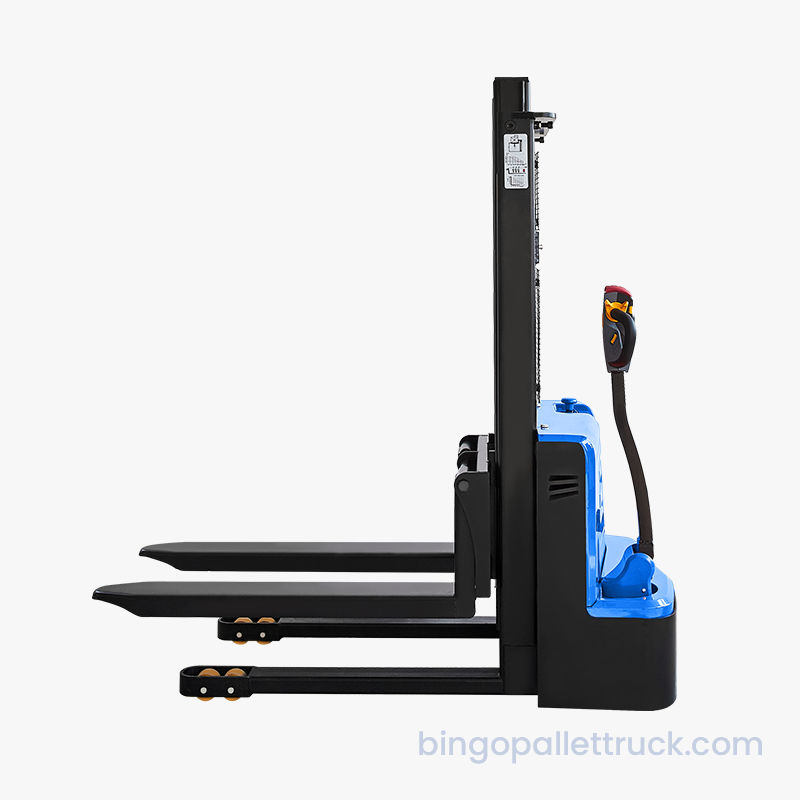

1500kg Electric Walkie Stacker

Characteristics：

Model		CDDA15
Operator type		Pedestrian
Rated load capacity	Q (kg)	1500
Mast type		One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500
Service weight	kg	470	525/545/560/616
Load center distance	c（mm)	500
Front overhang	x (mm)	737.5
Wheelbase	y (mm)	1260
Controller		D2P

You are here: Products / Electric Stacker / 1500kg Electric Walkie Stacker

Request a Quote

Advantages Detailed Specs

No load loss and no tipping at 2.5m lifting height
Fixed mast wire mesh guard: separates operators from loads and ensures operator safety.
Explosion-proof design of hydraulic system: even if the oil pipe bursts, the mast will not drop rapidly.
Emergency reverse travel function, enabling operators to avoid potential injuries.
Integrated built-in charger enables hassle-free charging.
A dual-chain structure was adopted for more stable lifting.
The creep speed button enables stable straight travel in tight work areas.
Adjustable balance wheel bracket assembly

Wheels:

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀210×75
Tyre size, rear	⌀×w (mm)	⌀80×60
Balance wheel	⌀×w (mm)	⌀115×55
Wheels, number front/rear (x=drive wheels)		1x, 1/4

Performance:

Travel speed, laden/unladen	(km/h)	4.2/4.5
Lifting speed, laden/unladen	(mm/s)	100/155
Lowering speed, laden/unladen	(mm/s)	100/110
Max. gradeability, laden/unladen	%	4/7
Service brake		Electromagnetic

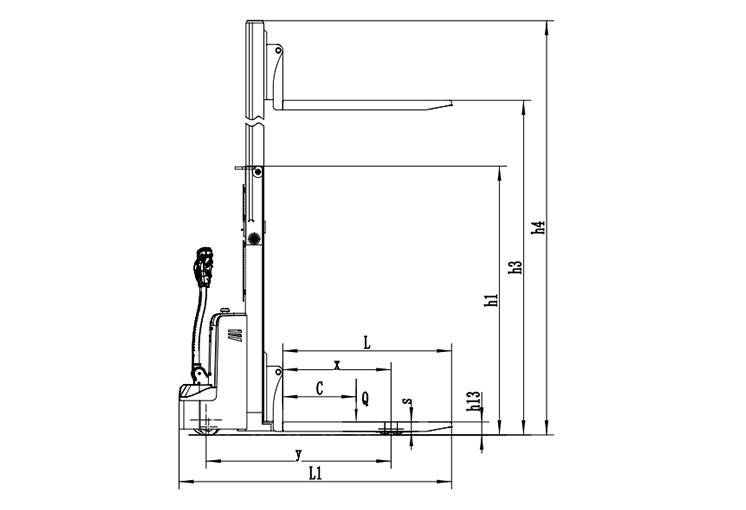

Dimensions:

Lowered height	h13 (mm)	≤90
Height, mast lowered	h1 (mm)	2083	1583/1833/1983/2333
Height, mast extended	h4 (mm)	2083	2568/3068/3483/4068
Overall length	L1 (mm)	1857
Length to face of forks	L2 (mm)	707

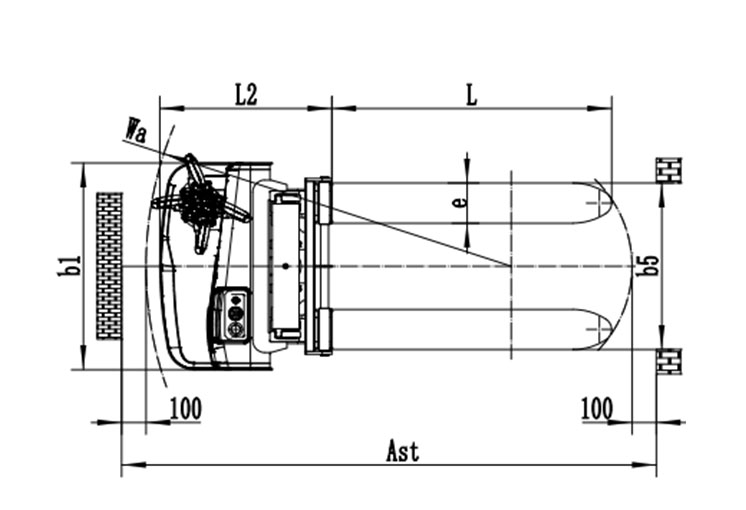

Overall width	b1/b2 (mm)	850
Fork dimensions	s/e/l (mm)	55/165/1150
Fork spread	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	28
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2383
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2313
Turning radius	Wa (mm)	1502

Motor and Battery:

Drive motor rating S2 60 min	（kw)	0.75
Lift motor rating at S3 15%	（kw)	2.2
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	24/85
Battery weight	（kg)	24×2

Others:

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical

Option:

Curtis controller
