CPDB15E

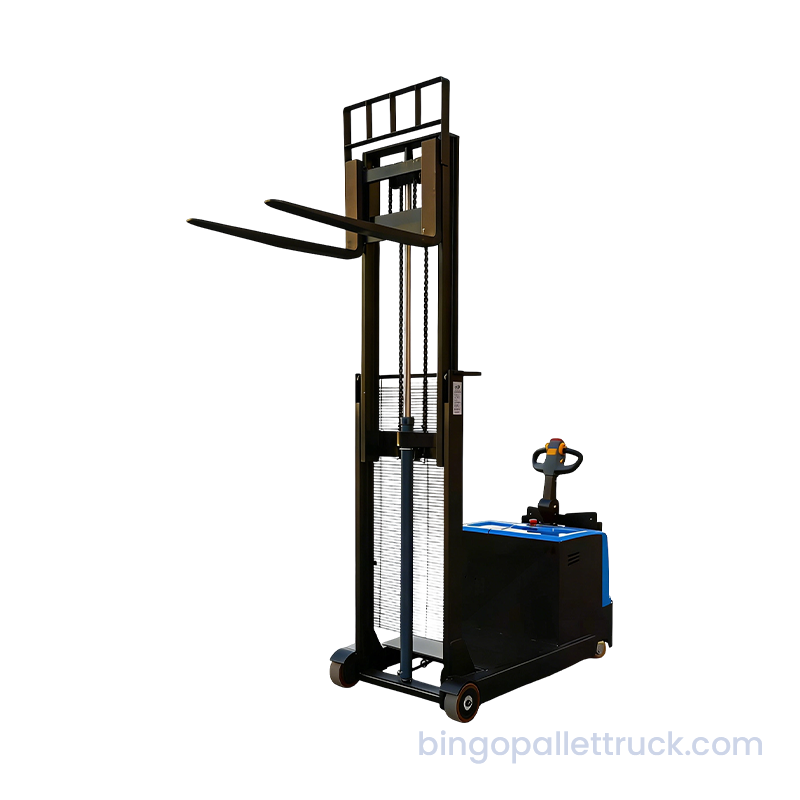

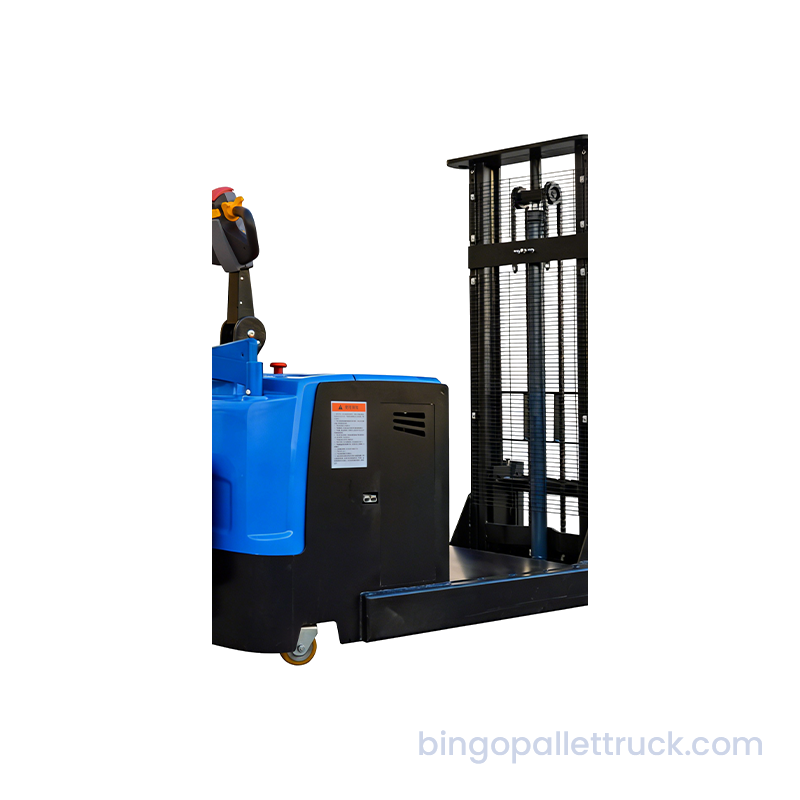

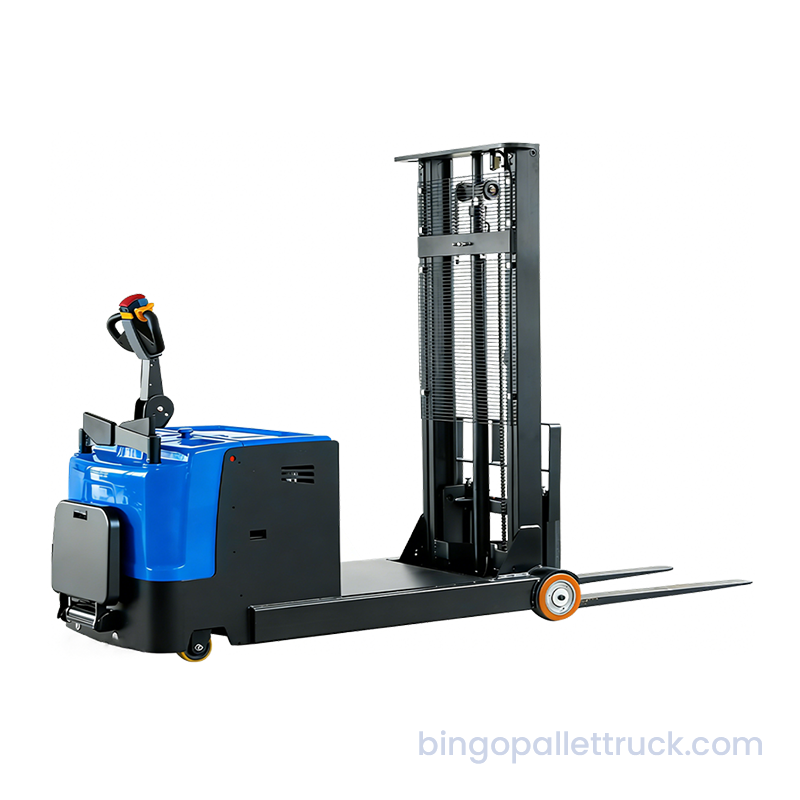

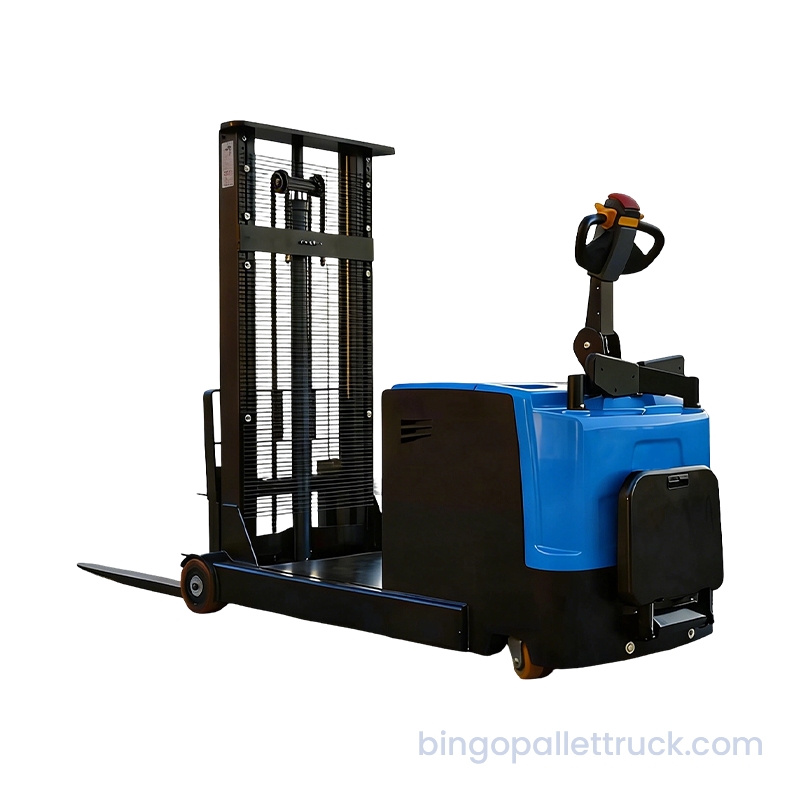

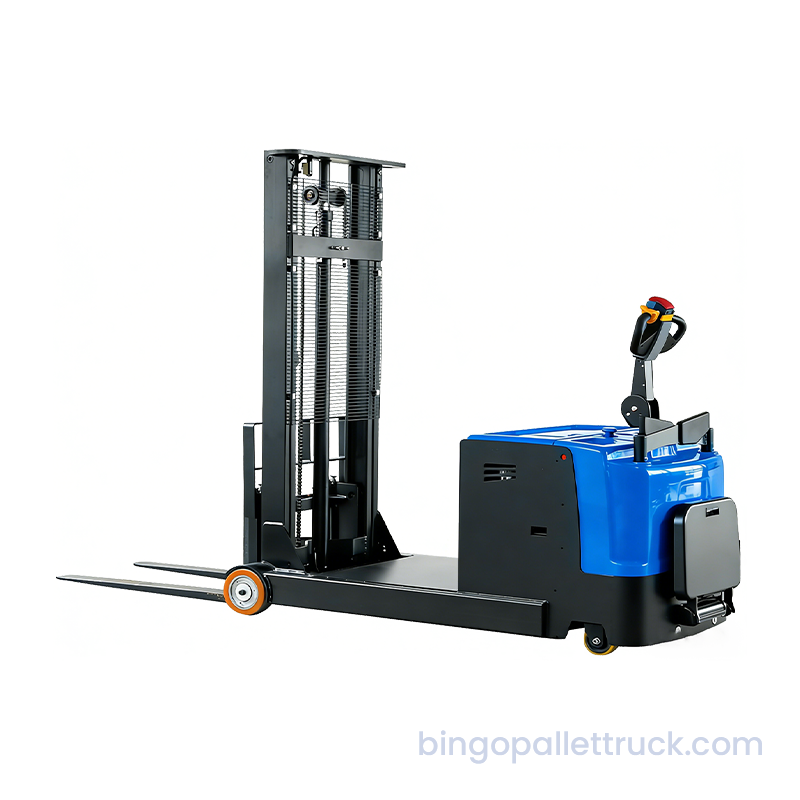

1500kg EPS Counterbalanced Electric Stand-on Stacker for Heavy Pallet Handling


Characteristics:

Model



CPDB15E

Operator type



Stand-on

Rated load capacity

Q (kg)

1500

Mast type



One-stage

Two-stage

Lift height

h3 (mm)

1600

2000/2500/3000/3500

Service weight

kg

1590/1860/1895/1930/1960

Load center distance

c(mm)

500

Front overhang

x (mm)

122

Wheelbase

y (mm)

1581

Controller



LVM24S20

You are here: Products / Electric Stacker / 1500kg EPS Counterbalanced Electric Stand-on Stacker for Heavy Pallet Handling

Request a Quote

Ergonomic handle with electronic steering enables effortless one-handed operation.
Fixed mast wire mesh guard separates operators from loads for lifting safety.
Explosion-proof hydraulics prevent abrupt mast descent during pipe rupture under full load.
Shock-absorbing pedal and anti-collision arms reduce long-shift fatigue.
Low-center-of-gravity structure guarantees stable heavy-load operation.

  • Wheels:

    Tyre type



    Nylon

    Tyre size, front

    ⌀×w (mm)

    ⌀230×75

    Tyre size, rear

    ⌀×w (mm)

    ⌀210×85

    Balance wheel

    ⌀×w (mm)

    ⌀115×55

    Wheels, number front/rear (x=drive wheels)



    1x, 2/2



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    5.5/6.0

    Lifting speed, laden/unladen

    (mm/s)

    100/155

    Lowering speed, laden/unladen

    (mm/s)

    100/110

    Max. gradeability, laden/unladen

    %

    5/8

    Service brake



    Electromagnetic

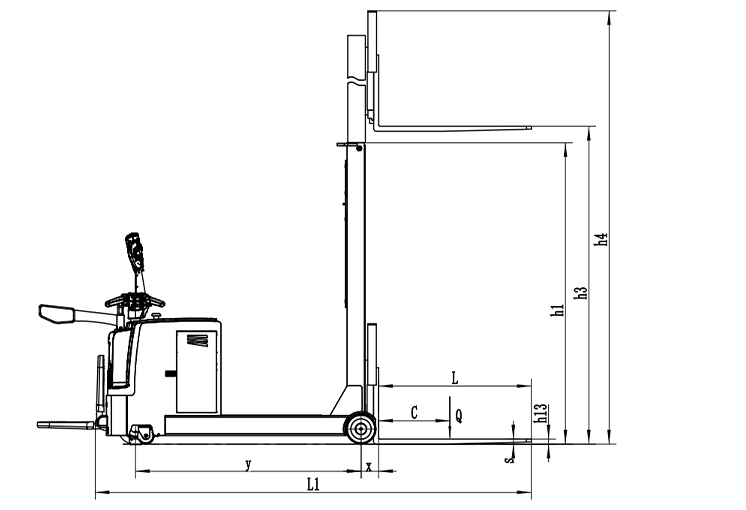

  • Dimensions:

    Lowered height

    h13 (mm)

    ≤65

    Height, mast lowered

    h1 (mm)

    2064

    1564/1814/2064/2314

    Height, mast extended

    h4 (mm)

    2064

    2524/3064/3394/4064

    Overall length

    L1 (mm)

    3055

    Length to face of forks

    L2 (mm)

    1975

    Overall width

    b1/b2 (mm)

    960

    Fork dimensions

    s/e/l (mm)

    40/100/1070

    Fork spread

    b5 (mm)

    220-680

    Ground clearance, center of wheelbase

    m2 (mm)

    60

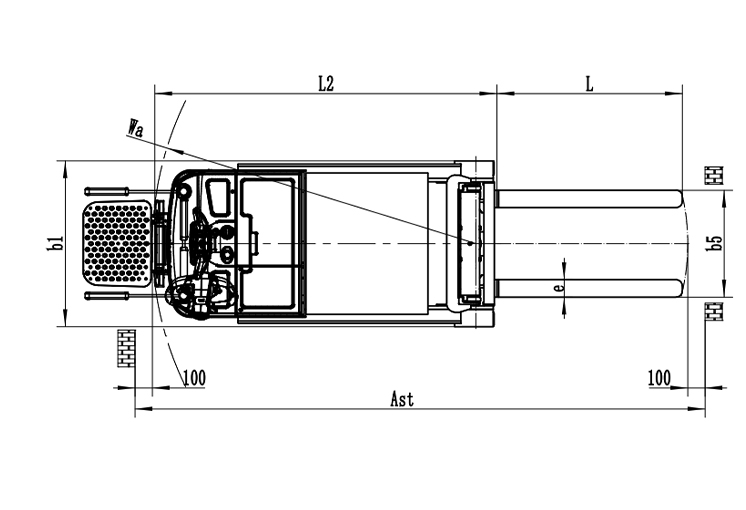

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    3481

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    3448

    Turning radius

    Wa (mm)

    1867



  • Motor and Battery:

    Drive motor rating S2 60 min

    (kw)

    2.2

    Lift motor rating at S3 15%

    (kw)

    2.2

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    24/210

    Battery weight

    (kg)

    180

    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Mechanical

    Option:

    Curtis controller

    200-330Ah Li-ion battery

    Fork tilt

    Fork side shift
