Customized Double Deep Racking for Heavy-Duty Selective High-Density Storage Solution

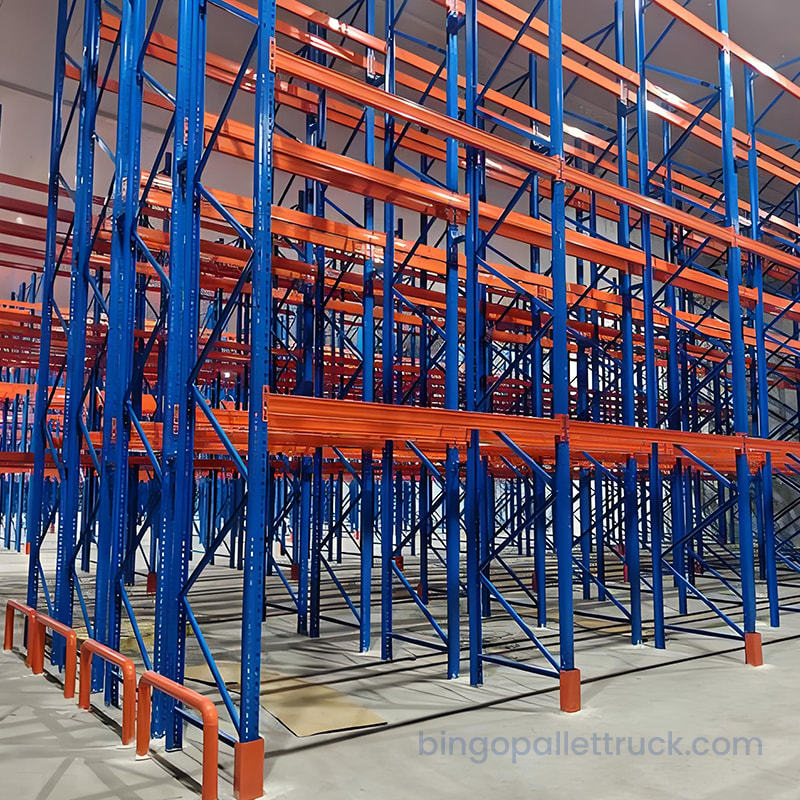

Double Deep Racking is a high-density selective storage solution designed to balance storage capacity and goods accessibility. It is an upgraded version of traditional selective racking, with pallets stored in two deep rows back to back, which eliminates one aisle between every two rows of racks, greatly improving warehouse space utilization. This system supports direct access to each pallet and is compatible with special double deep reach trucks, realizing efficient loading and unloading operations. Made of high-quality steel components, the racking has a stable structure, reliable load-bearing performance and easy installation. The number of layers, maximum load per layer, overall height and pallet depth can be customized according to the actual size of the warehouse and the specifications of the stored goods. It is widely used in food, beverage, wholesale, logistics and other industries with medium batch, multiple SKUs and regular goods turnover.

Characteristics:

Size Customizable
Material Cold Rolled Steel
Main/Sub-Frame Type Main Frame/Sub-Frame
Maximum Load per Layer Customizable
Number of Layers Customizable



You are here: Products / Pallet Racking / Customized Double Deep Racking for Heavy-Duty Selective High-Density Storage Solution

Request a Quote
Our Advantages

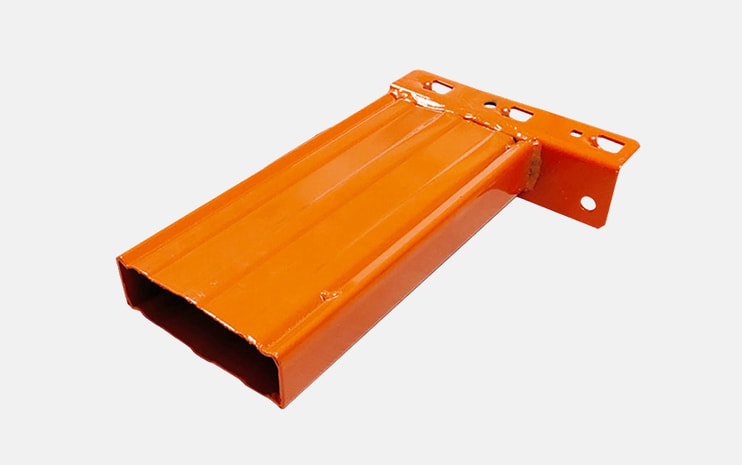

  • a Heavy-Duty Double C-Channel Beams
    Our 1~5 ton/level beams are crafted from heavy-gauge steel, precision roll-formed into double C-channel sections and then fully welded. The reinforced double-layer design delivers exceptional pressure resistance, with a maximum load capacity of 5 tons per level, ensuring reliable support for even the heaviest palletized loads.

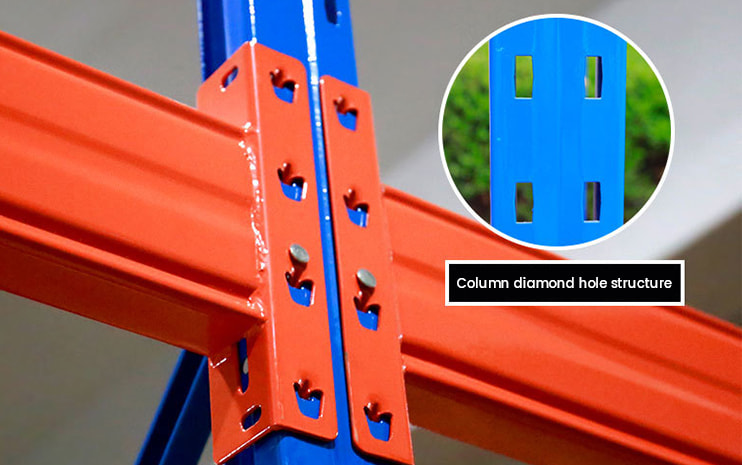

  • b Adjustable Diamond Hole Uprights
    Our uprights feature a precision double-row diamond hole design, enabling seamless, tool-free connection with beam connectors. Optional safety pins add an extra layer of stability, while the fully adjustable system allows you to customize heights to perfectly match your inventory requirements.

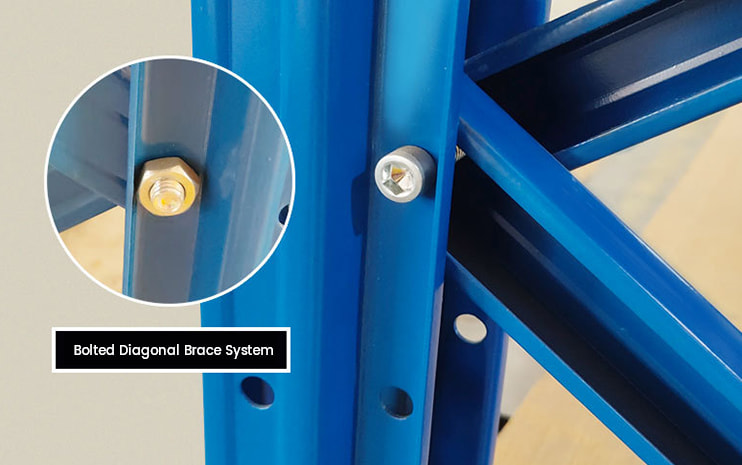

  • c Bolted Diagonal Brace System
    Our rack frames are constructed from uprights, horizontal braces, and diagonal braces connected by high-strength bolts. This robust bolted design significantly enhances structural rigidity, ensuring the entire system remains stable and reliable under heavy loads.

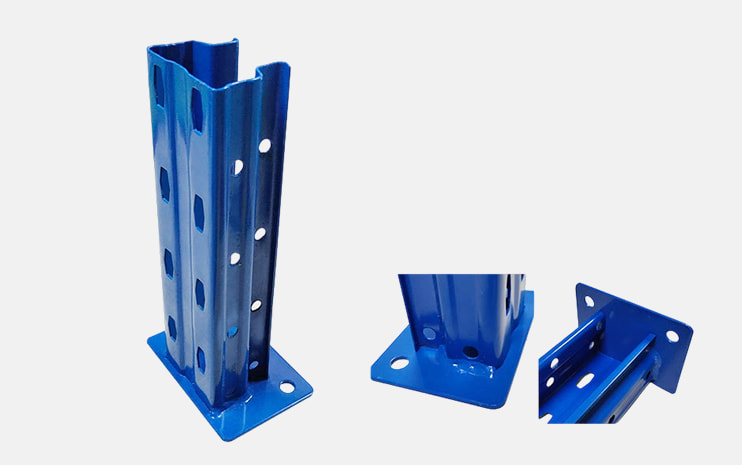

  • d Reinforced Base Plate & Rack Protection
    Our reinforced base plate features a thickened, widened design for a larger ground contact area, increasing friction to deliver exceptional stability. Complementing this, our L-shaped, U-shaped, and side impact guards protect your racking from accidental forklift collisions, ensuring long-term safety and durability.

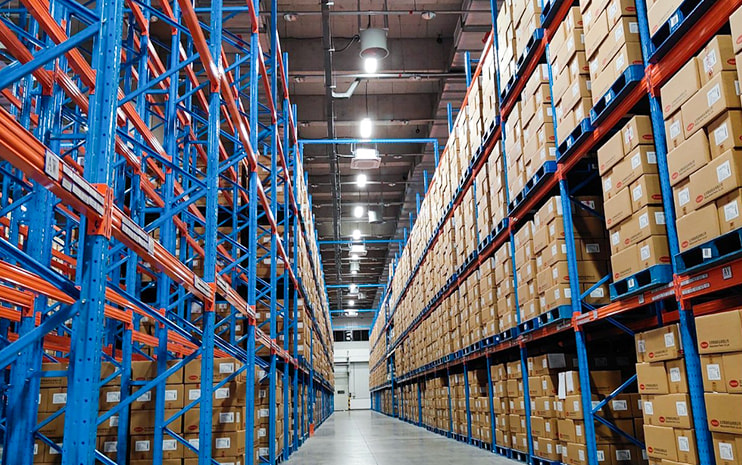

  • e Projects

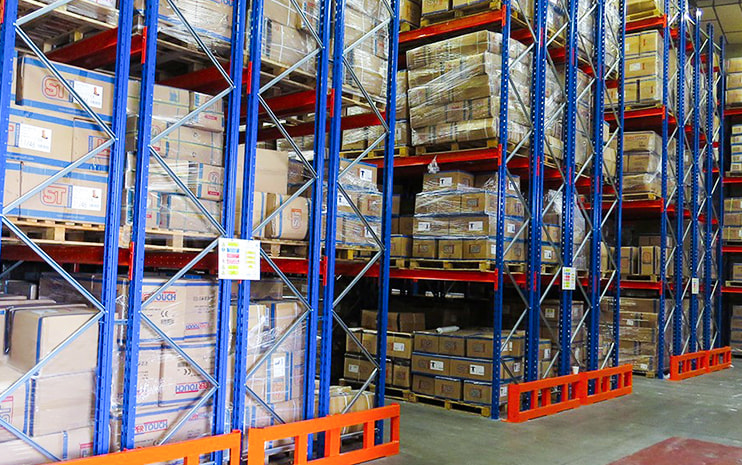

  • f Projects
