CDDA20

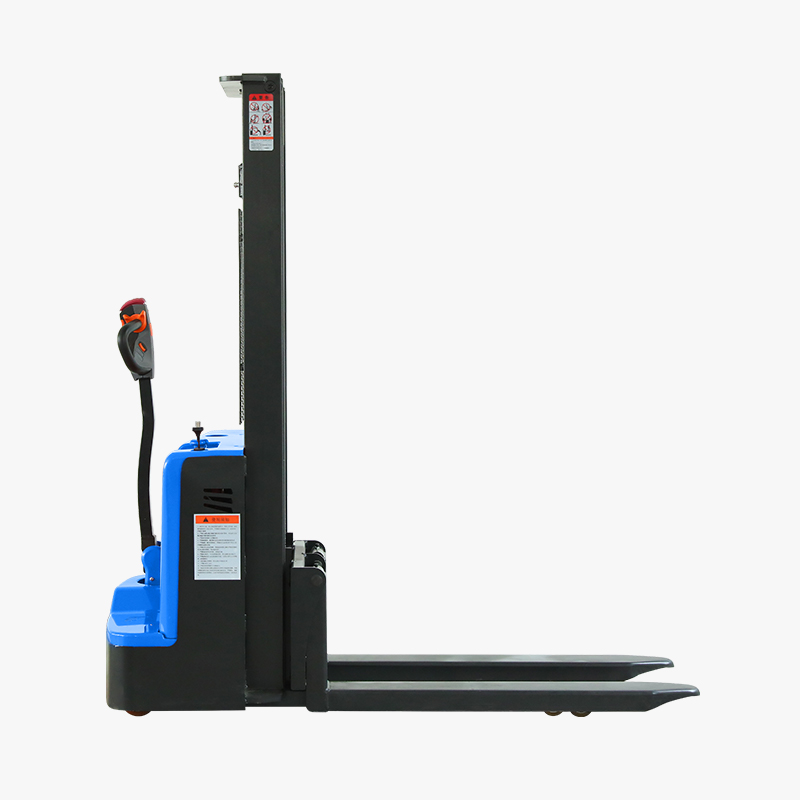

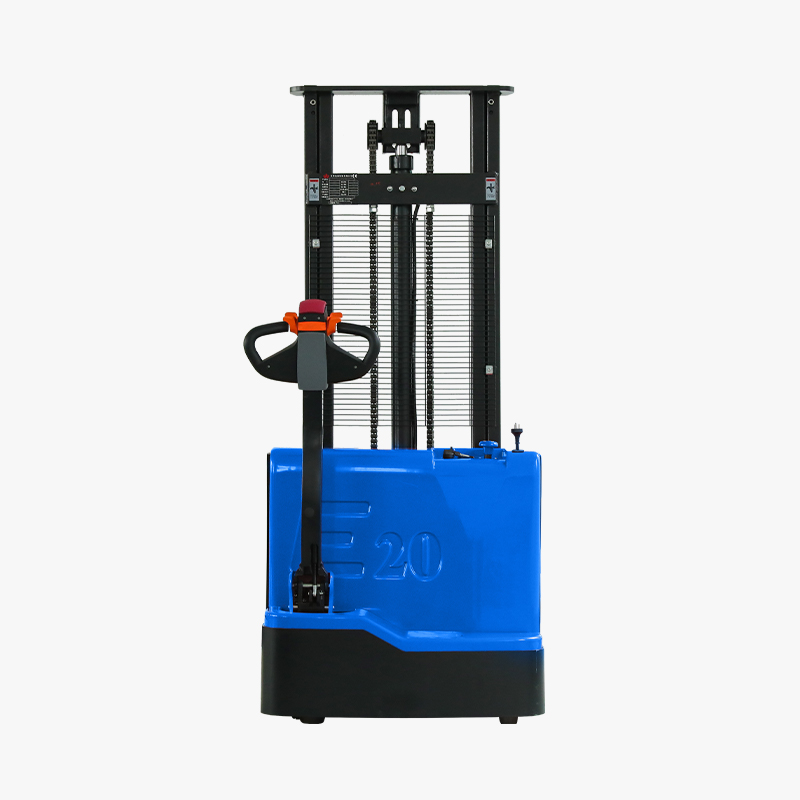

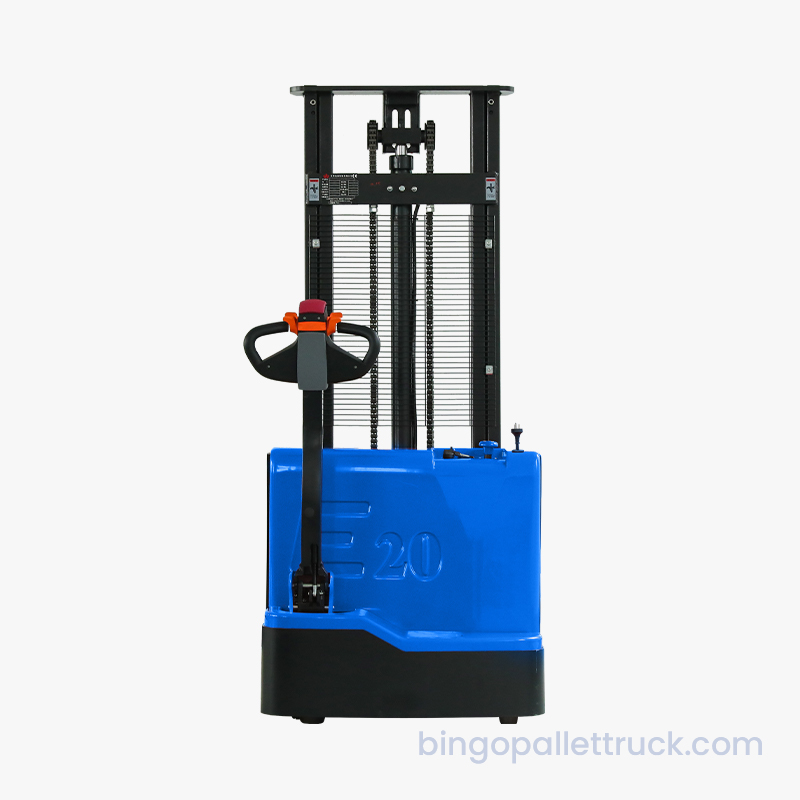

2000kg Electric Walkie Stacker

Characteristics：

Model		CDDA20
Operator type		Pedestrian
Rated load capacity	Q (kg)	2000
Mast type		One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500
Service weight	kg	525	595/630/650/690
Load center distance	c（mm)	500
Front overhang	x (mm)	735
Wheelbase	y (mm)	1251
Controller		WTBL4890MB-C4

You are here: Products / Electric Stacker / 2000kg Electric Walkie Stacker

Request a Quote

Advantages Detailed Specs

No load loss and no tipping at 2.5m lifting height
Fixed mast wire mesh guard: separates operators from loads and ensures operator safety.
Explosion-proof design of hydraulic system: even if the oil pipe bursts, the mast will not drop rapidly.
Emergency reverse travel function, enabling operators to avoid potential injuries.
Integrated built-in charger enables hassle-free charging.
A dual-chain structure is adopted for more stable lifting.
The creep speed button enables stable straight travel in tight work areas.
Adjustable balance wheel bracket assembly

Wheels:

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀210×75
Tyre size, rear	⌀×w (mm)	⌀80×60
Balance wheel	⌀×w (mm)	⌀115×55
Wheels, number front/rear (x=drive wheels)		1x, 1/4

Performance:

Travel speed, laden/unladen	(km/h)	4.2/4.5
Lifting speed, laden/unladen	(mm/s)	75/100
Lowering speed, laden/unladen	(mm/s)	85/95
Max. gradeability, laden/unladen	%	4/7
Service brake		Electromagnetic

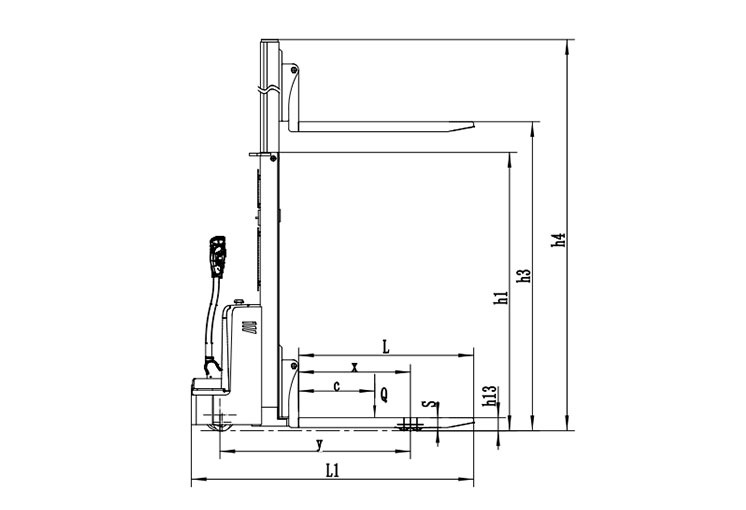

Dimensions:

Lowered height	h13 (mm)	≤90
Height, mast lowered	h1 (mm)	2080	1580/1830/1980/2330
Height, mast extended	h4 (mm)	2080	2565/3065/3480/4065
Overall length	L1 (mm)	1854
Length to face of forks	L2 (mm)	704

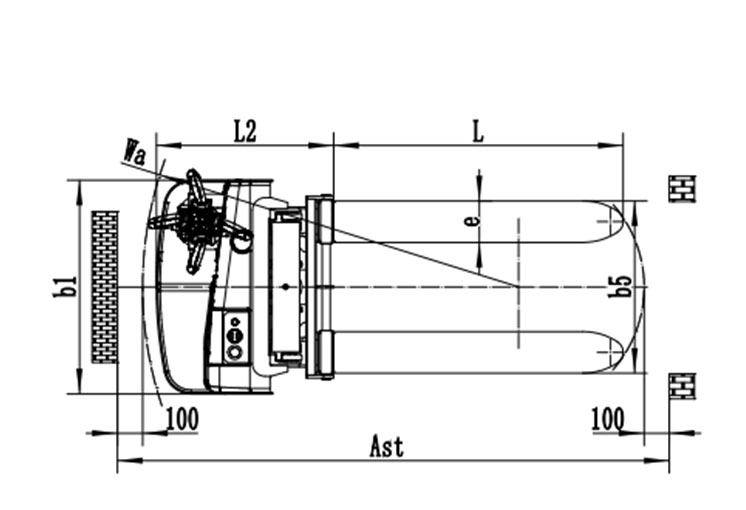

Overall width	b1/b2 (mm)	850
Fork dimensions	s/e/l (mm)	55/165/1150
Fork spread	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	30
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2377
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2307
Turning radius	Wa (mm)	1494

Motor and Battery:

Drive motor rating S2 60 min	（kw)	0.9
Lift motor rating at S3 15%	（kw)	2.2
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	48/65
Battery weight	（kg)	15×4

Others:

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical

Option:

48V/100Ah Li-ion battery
