CBY20S/CBY20L

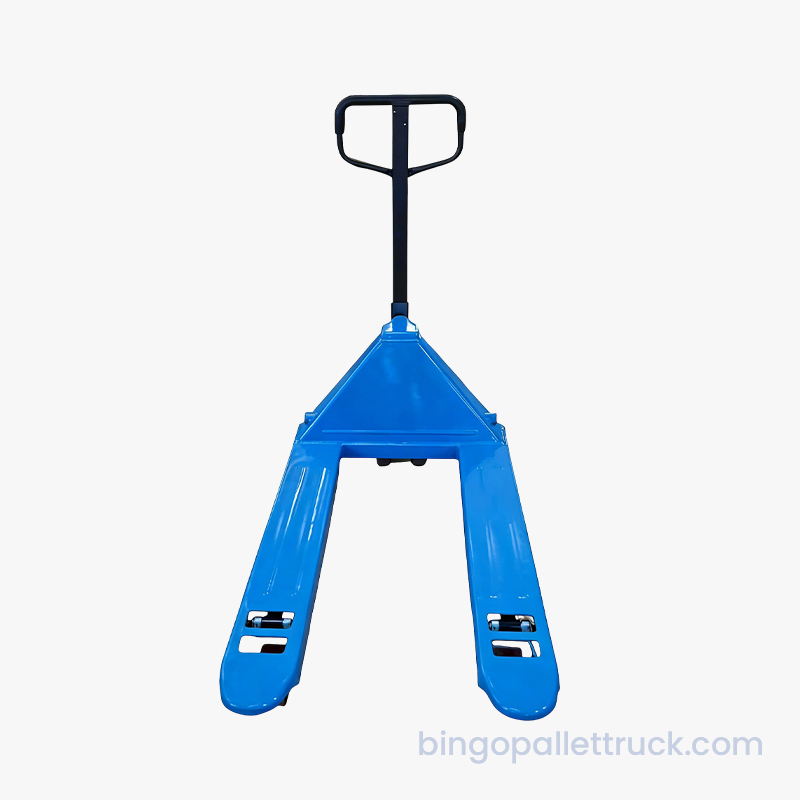

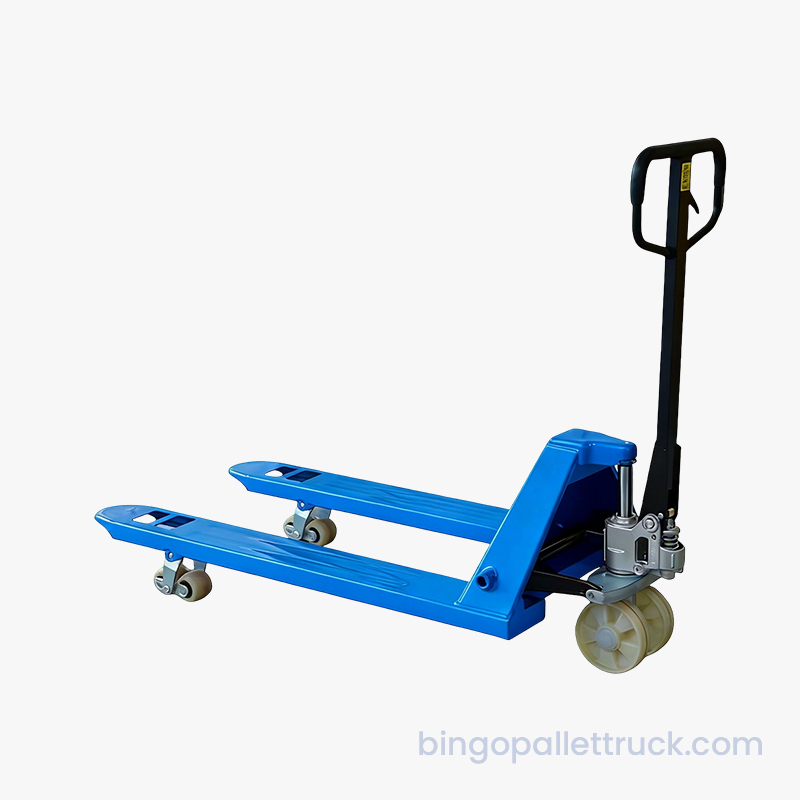

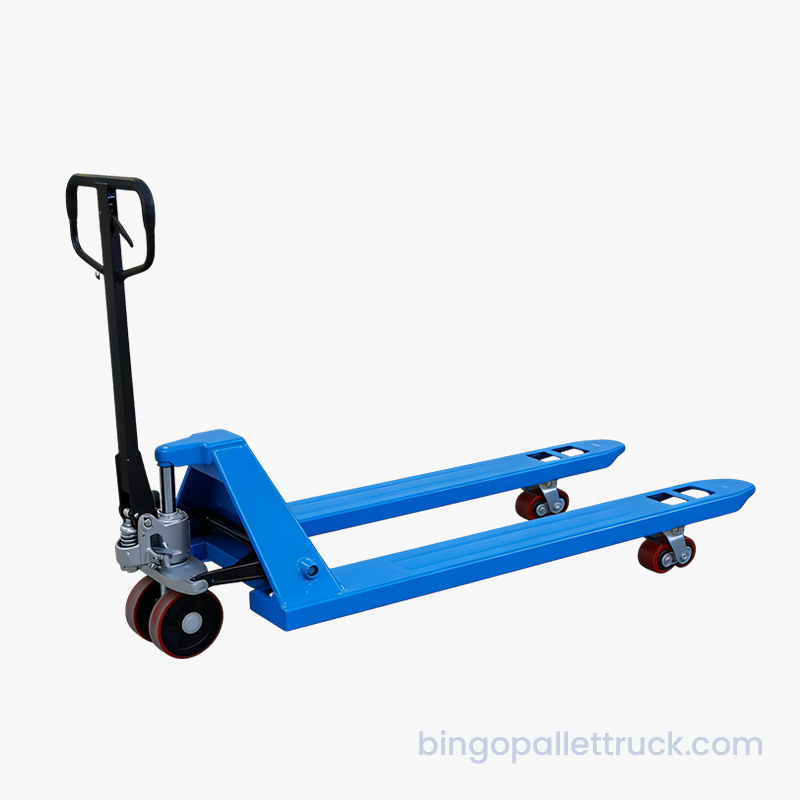

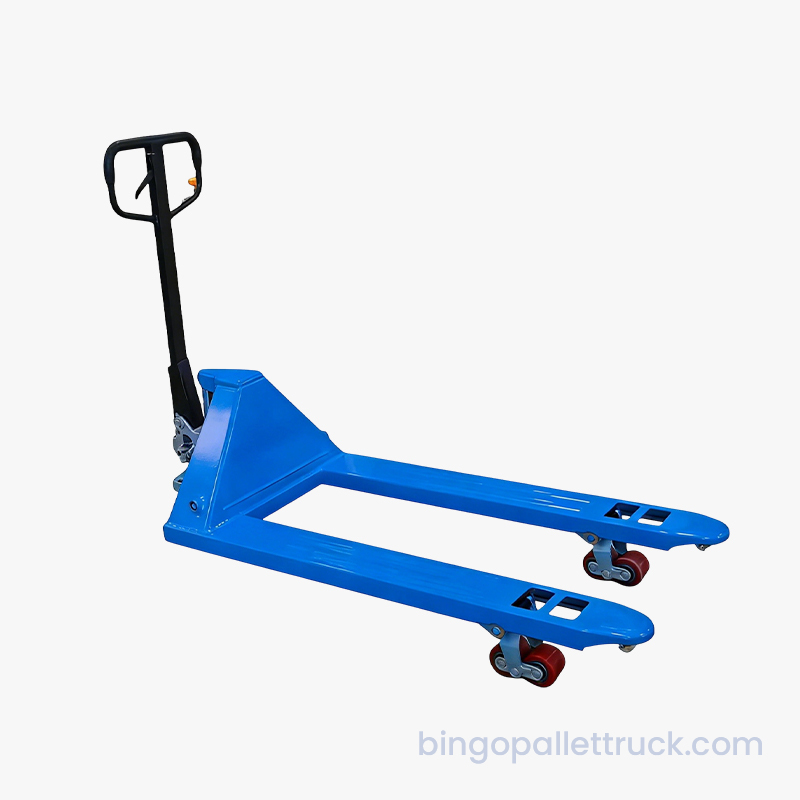

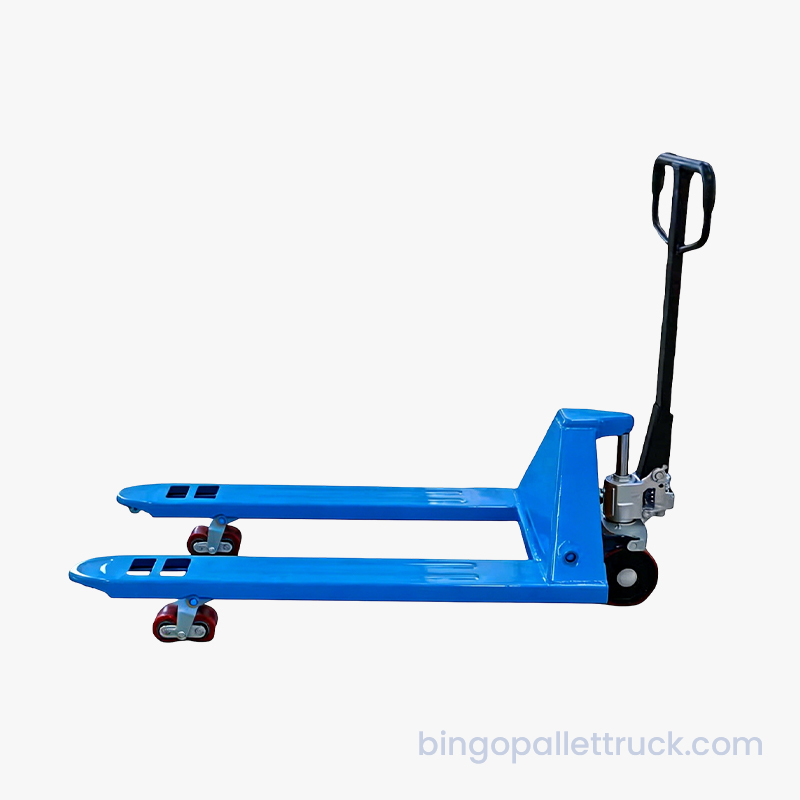

2000kg Hand Pallet Truck


Characteristics:

Model

CBY20S

CBY20L

Rated load capacity

2000kg

2000kg

Lowered fork height

85mm

85mm

Max. lift height

195mm

195mm

Fork width single

160mm

160mm

Fork overall width

550mm

685mm

Fork length

1220mm

1220mm

Wheel Material

Nylon/PU

Nylon/PU

Load wheel

⌀180×50mm

⌀180×50mm

Tandem load wheel

⌀80×70mm

⌀80×70mm

Service weight

70kg

70kg

You are here: Products / Hand Pallet Truck / 2000kg Hand Pallet Truck

Request a Quote

Integrated pump paired with one-piece cylinder eliminates oil leakage risks completely.
Cast steel construction boosts wear durability between the piston rod and pump body.
The well-engineered frame design ensures a longer service life.
The fork-lowering speed is fully controllable.
Nylon wheels enable effortless operation, perfect for machining workshops.
