Hand Pallet Truck

Integrated Solutions for Warehousing and Logistics

Yancheng Bingo Machinery Equipment Co., Ltd.
CBY30S/CBY30L

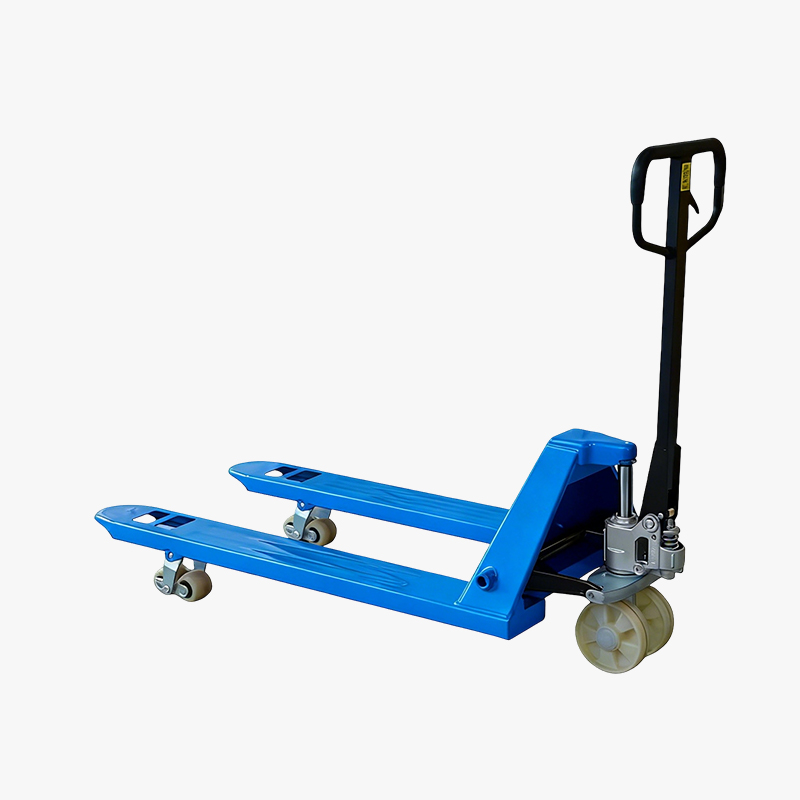

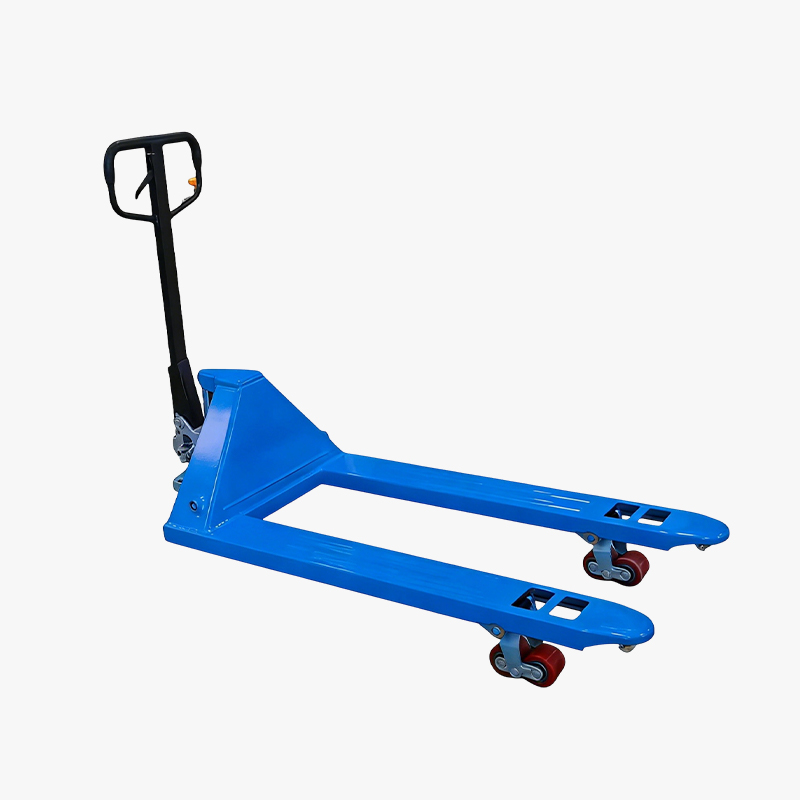

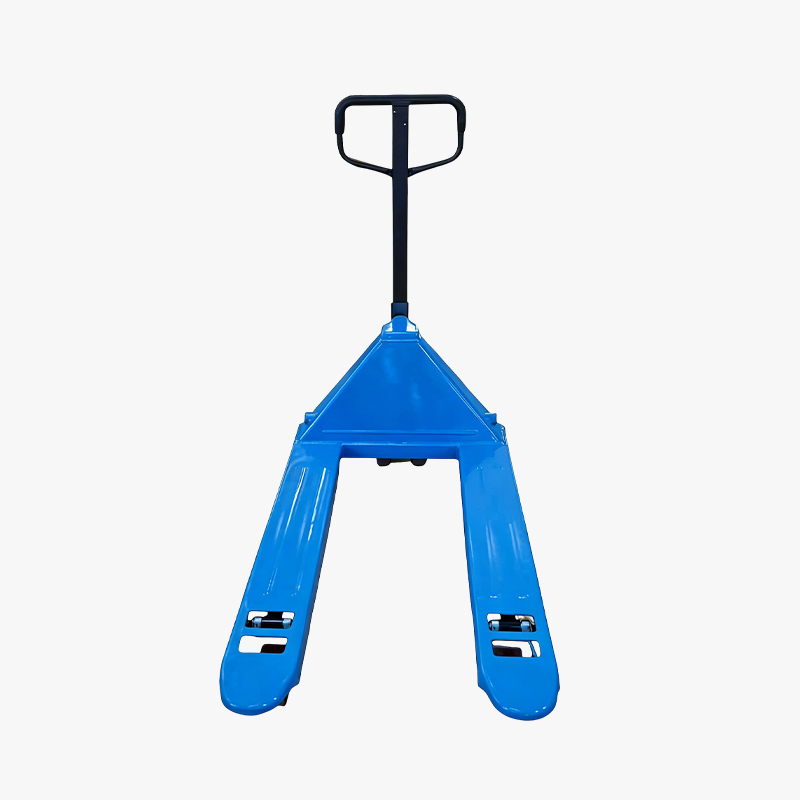

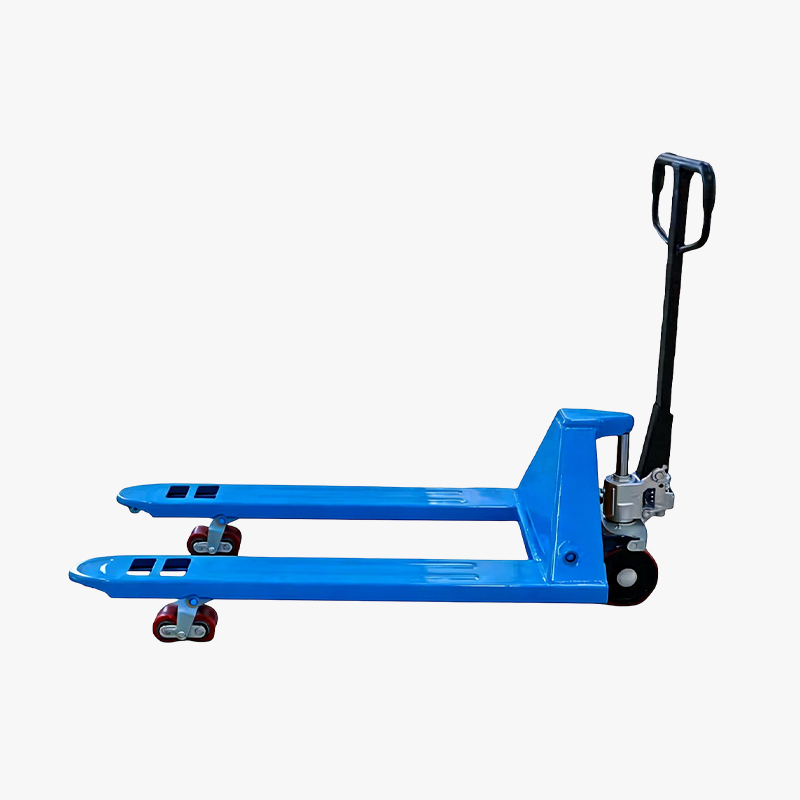

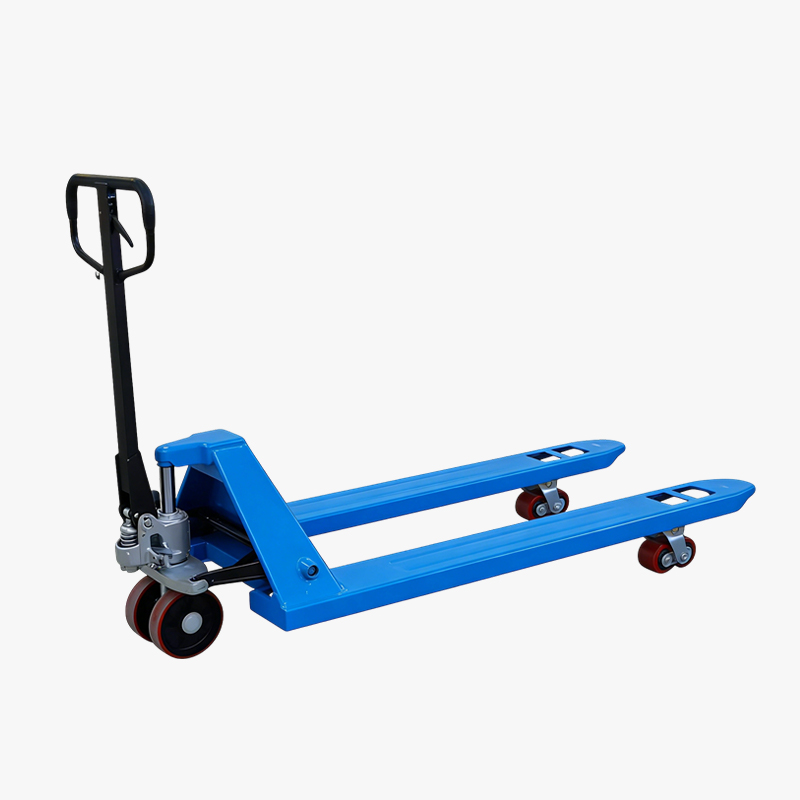

2000kg Hand Pallet Truck


Characteristics:

Model

CBY30S

CBY30L

Rated load capacity

2000kg

2000kg

Lowered fork height

85mm

85mm

Max. lift height

195mm

195mm

Fork width single

160mm

160mm

Fork overall width

550mm

685mm

Fork length

1220mm

1220mm

Wheel Material

Nylon/PU

Nylon/PU

Load wheel

⌀180×50mm

⌀180×50mm

Tandem load wheel

⌀80×70mm

⌀80×70mm

Service weight

74kg

74kg

You are here: Products / Hand Pallet Truck / 2000kg Hand Pallet Truck

Request a Quote

Integrated pump and one-piece cylinder design achieves zero oil leakage.
Cast steel construction makes the pump body highly wear-resistant, cutting maintenance costs.
Durable frame design for longer service life and better value.
Full control over fork lowering speed ensures safe, easy operation.
Nylon-wheel design ensures easy operation in machining workshop environments.
