Stand-on Electric Pallet Truck

Integrated Solutions for Warehousing and Logistics

Yancheng Bingo Machinery Equipment Co., Ltd.
CBD20E

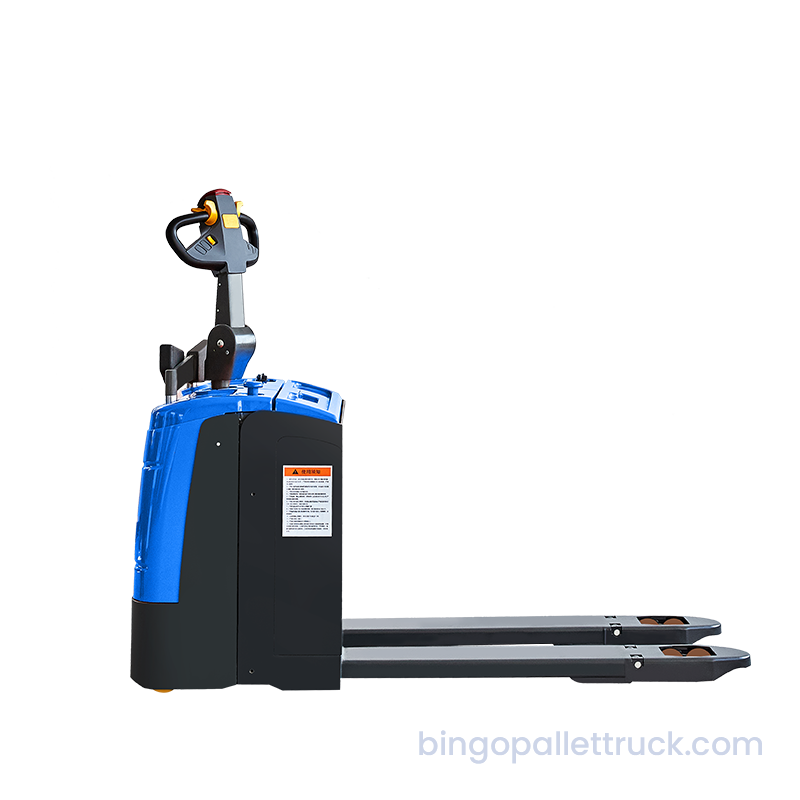

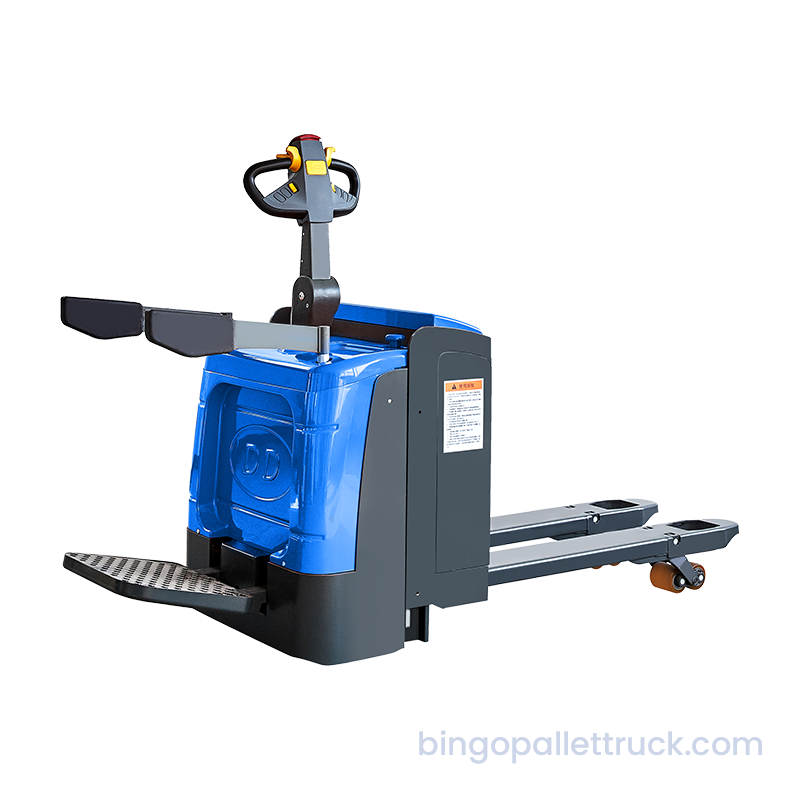

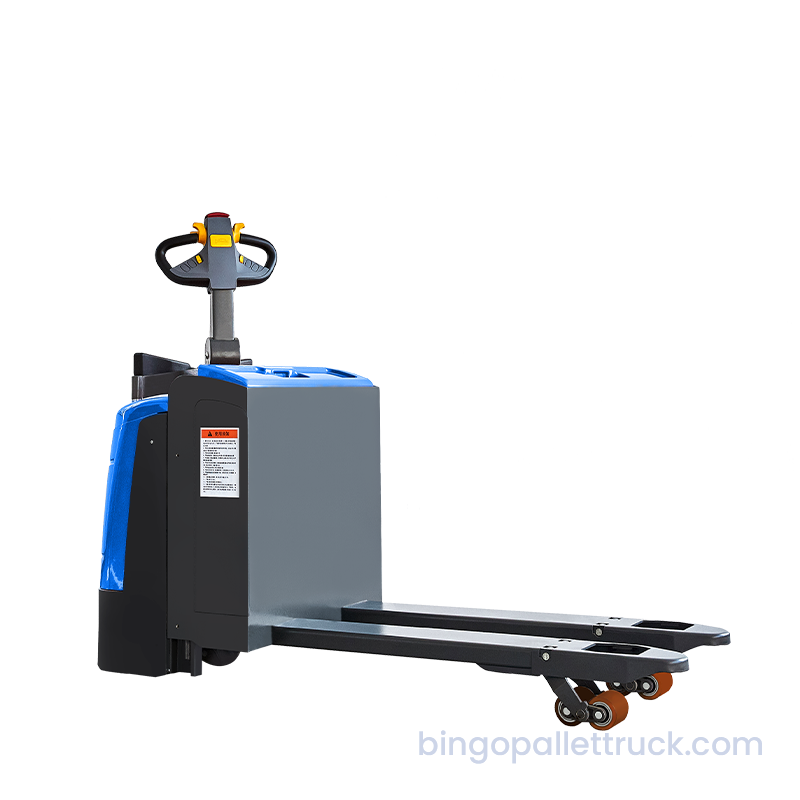

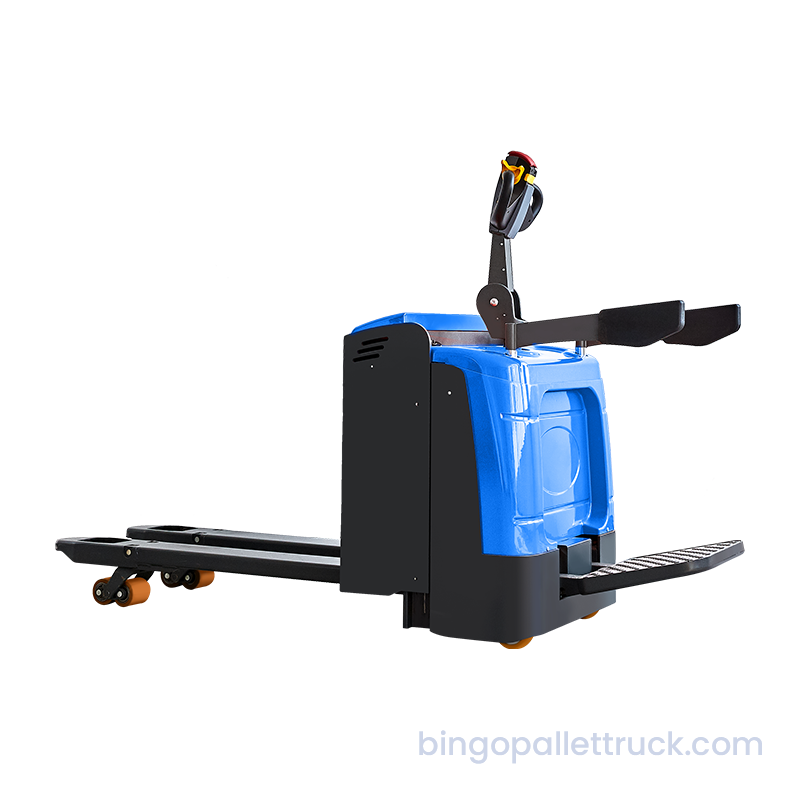

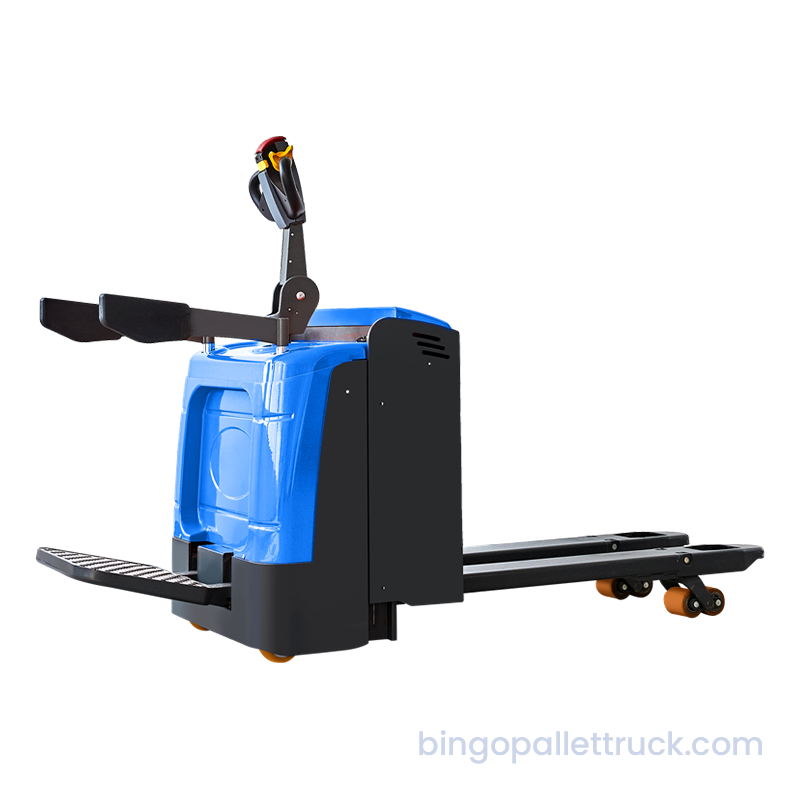

2000kg EPS Electric Stand Type Pallet Truck for Logistics


Characteristics:

Model



CBD20E

Operator type



Stand-on

Rated load capacity

Q (kg)

2000

Lift height

h3 (mm)

205

Service weight

kg

670

Load center distance

c(mm)

600

Front overhang

x (mm)

1025

Wheelbase

y (mm)

1416

Controller



LVM24S20

Wheels

Tyre type



PU

Tyre size, front

⌀×w (mm)

⌀230×75

Tyre size, rear

⌀×w (mm)

⌀80×98

Balance wheel

⌀×w (mm)

⌀115×55

Wheels, number front/rear (x=drive wheels)



1x, 2/4





You are here: Products / Electric Pallet Truck / 2000kg EPS Electric Stand Type Pallet Truck for Logistics

Request a Quote

Low center of gravity layout guarantees stable and safe working performance.
Heavy-duty frame with tie rod and pin shaft structure offers robust load-bearing capability.
Humanized handle matched with electric steering realizes labor-saving one-hand operation.
Shock-absorbing foot pedals and crash-proof arms ease fatigue during extended working hours.



  • Wheels:

    Tyre type



    PU

    Tyre size, front

    ⌀×w (mm)

    ⌀230×75

    Tyre size, rear

    ⌀×w (mm)

    ⌀210×85

    Balance wheel

    ⌀×w (mm)

    ⌀124×60

    Wheels, number front/rear (x=drive wheels)



    1x, 2/2



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    5.5/6.0

    Lifting speed, laden/unladen

    (mm/s)

    100/155

    75/125

    Lowering speed, laden/unladen

    (mm/s)

    100/110

    95/100

    Max. gradeability, laden/unladen

    %

    5/8

    Service brake



    Electromagnetic

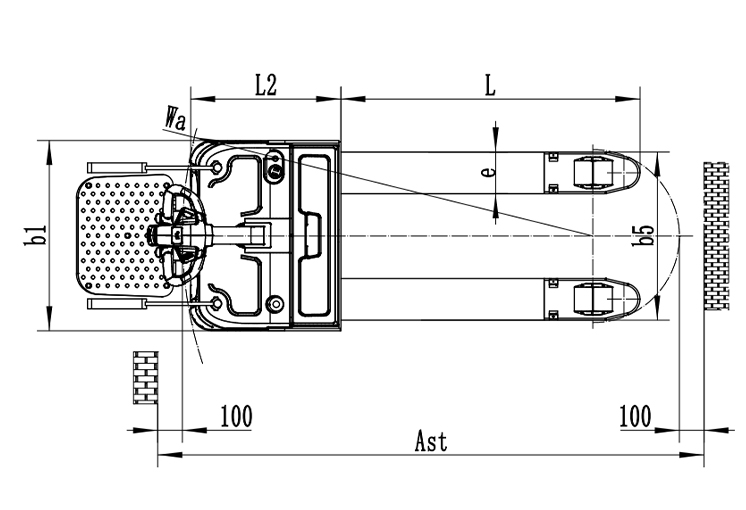

  • Dimensions:

    Lowered height

    h13 (mm)

    85

    Overall length

    L1 (mm)

    1825

    Length to face of forks

    L2 (mm)

    611

    Overall width

    b1/b2 (mm)

    775

    Fork dimensions

    s/e/l (mm)

    55/170/1220

    Fork spread

    b5 (mm)

    550/685

    Ground clearance, center of wheelbase

    m2 (mm)

    31

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    2400

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    2307

    Turning radius

    Wa (mm)

    1670



  • Motor and Battery:

    Drive motor rating S2 60 min

    (kw)

    2.2

    Lift motor rating at S3 15%

    (kw)

    1

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    24/210

    Battery weight

    (kg)

    180

    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Electronic

    Option:

    Curtis controller

    150/200Ah Li-ion battery
