CBD20C

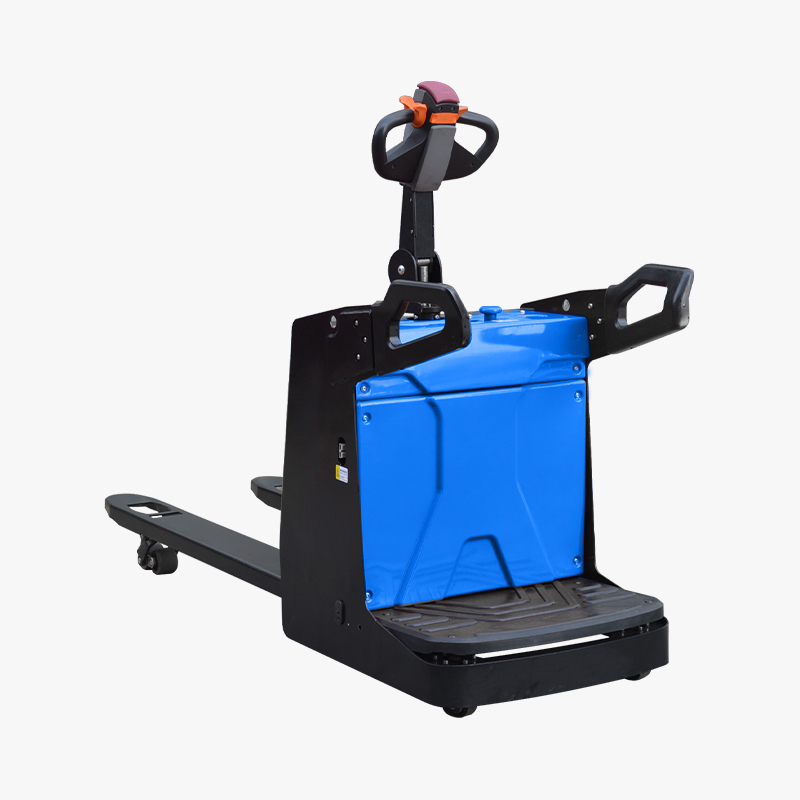

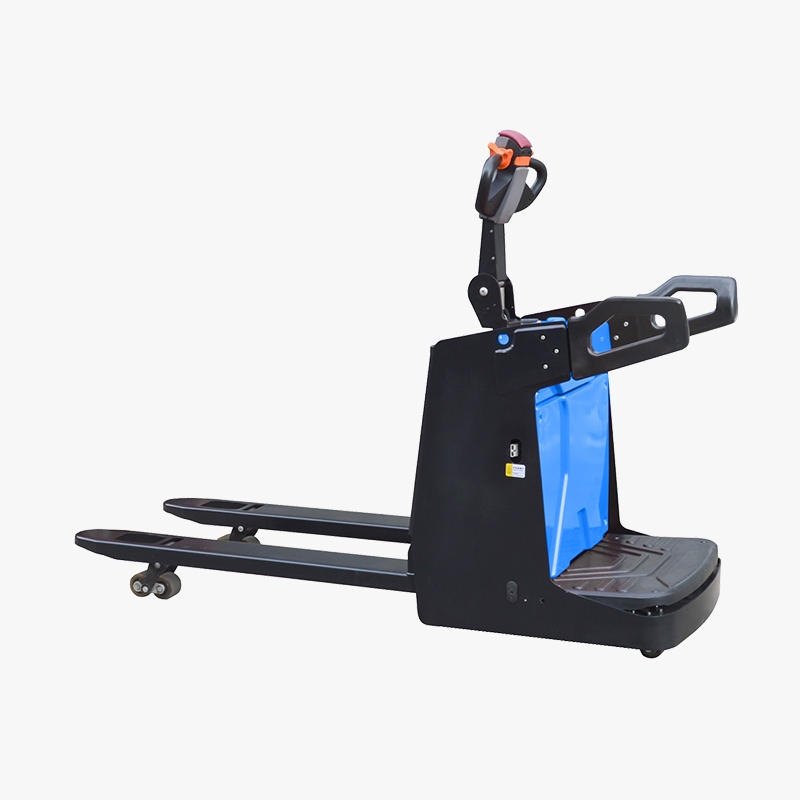

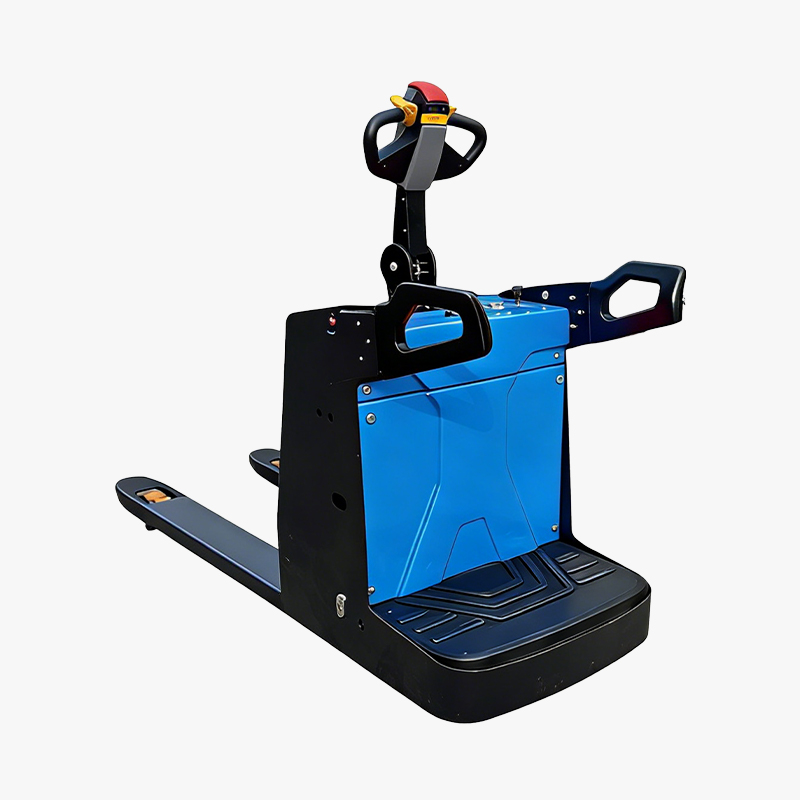

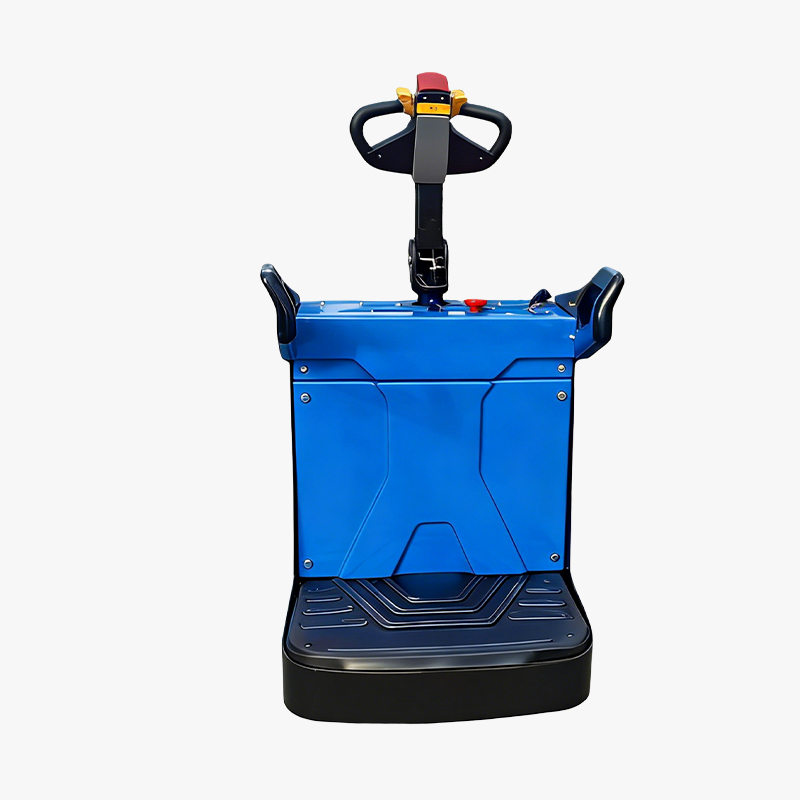

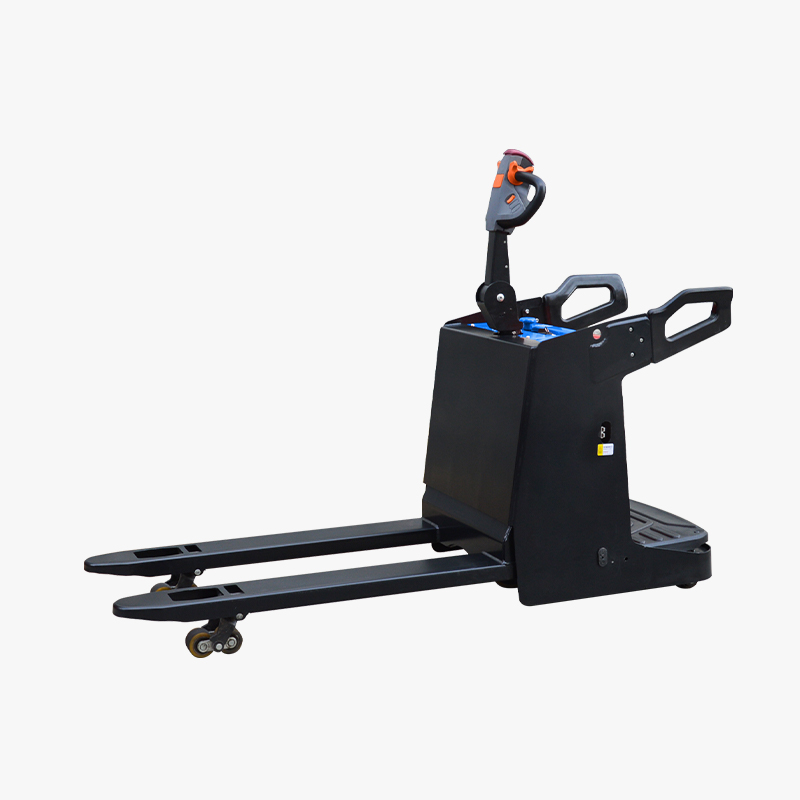

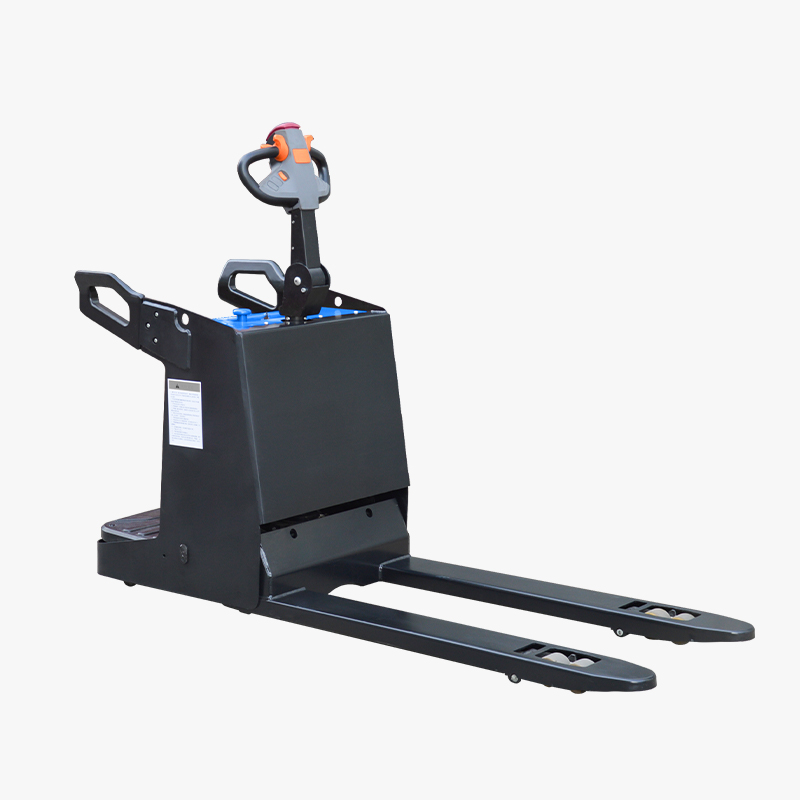

2000kg Electric Stand-on Pallet Truck

Characteristics:

Model		CBD20C
Operator type		Stand-on
Rated load capacity	Q (kg)	2000
Lift height	h3 (mm)	205
Service weight	kg	320
Load center distance	c（mm)	600
Front overhang	x (mm)	971
Wheelbase	y (mm)	1151
Controller		PVM48S09

You are here: Products / Electric Pallet Truck / 2000kg Electric Stand-on Pallet Truck

Request a Quote

Advantages Detailed Specs

The ergonomic handle, combined with electronic steering, enables effortless one-handed operation.
Shock-absorbing pedals and anti-collision protective arms ensure fatigue-free operation even during extended use.
The low-center-of-gravity body ensures stable operation.
High-strength body, with connecting rod and pin shaft design, suitable for heavy-duty operations

Wheels:

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀210×75
Tyre size, rear	⌀×w (mm)	⌀80×60
Balance wheel	⌀×w (mm)	⌀70×40
Wheels, number front/rear (x=drive wheels)		1x, 2/4

Performance:

Travel speed, laden/unladen	(km/h)	5.0/5.5
Lifting speed, laden/unladen	(mm/s)	17/20
Lowering speed, laden/unladen	(mm/s)	35/30
Max. gradeability, laden/unladen	%	5/16
Service brake		Electromagnetic

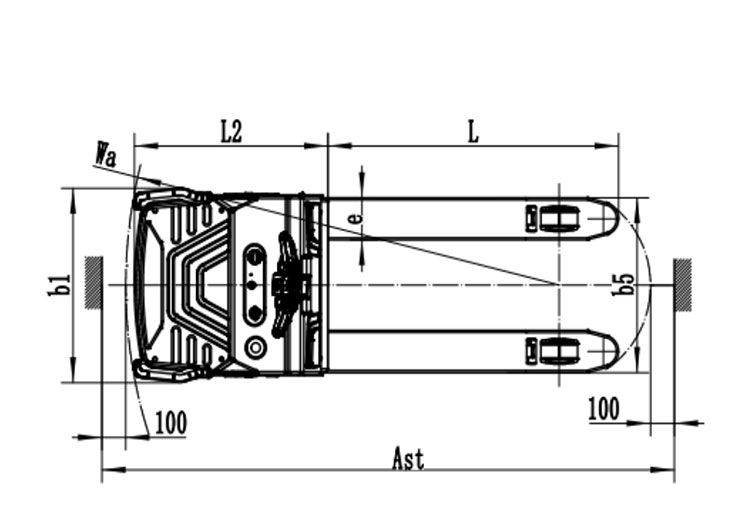

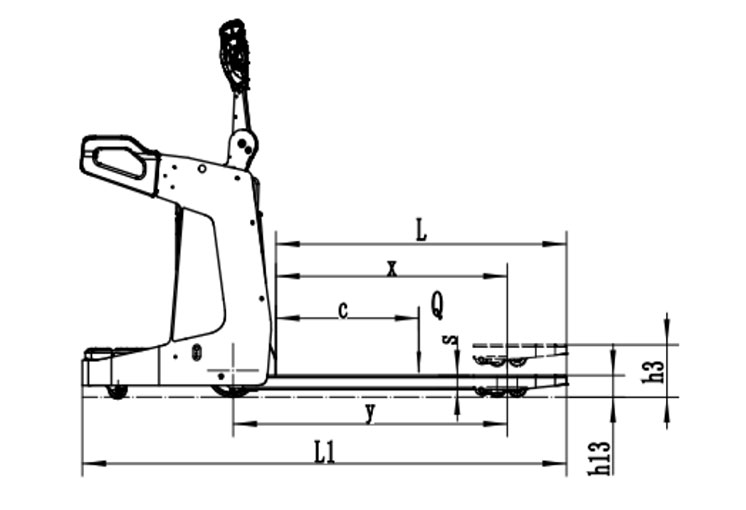

Dimensions:

Lowered height	h13 (mm)	85
Overall length	L1 (mm)	2033
Length to face of forks	L2 (mm)	313
Overall width	b1/b2 (mm)	762
Fork dimensions	s/e/l (mm)	50/165/1220
Fork spread	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	30
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2570
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2481
Turning radius	Wa (mm)	1820

Motor and Battery:

Drive motor rating S2 60 min	（kw)	1
Lift motor rating at S3 15%	（kw)	0.8
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	48/65
Battery weight	（kg)	15×4

Others:

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical

Option:

48V/90Ah Li-ion battery
