CBD20J

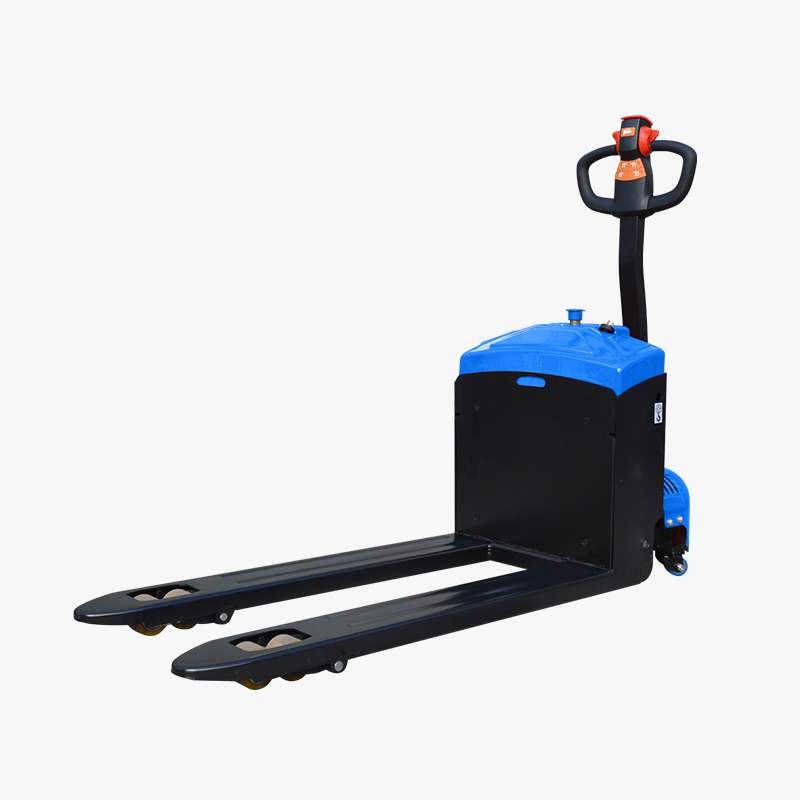

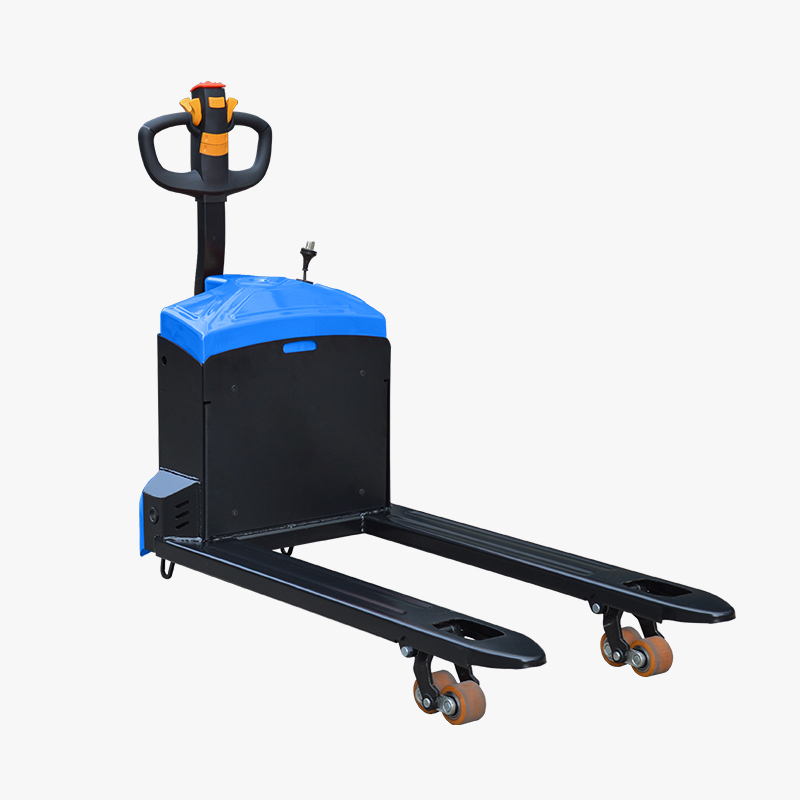

2000kg Electric Walkie Pallet Truck

Characteristics:

Model		CBD20J
Operator type		Pedestrian
Rated load capacity	Q (kg)	2000
Lift height	h3 (mm)	205
Service weight	kg	202
Load center distance	c（mm)	600
Wheelbase	y (mm)	1260

You are here: Products / Electric Pallet Truck / 2000kg Electric Walkie Pallet Truck

Request a Quote

Advantages Detailed Specs

Full steel body, collision-resistant and sturdy.
Emergency reverse travel function, enabling operators to avoid potential injuries.
Integrated built-in charger enables hassle-free charging.

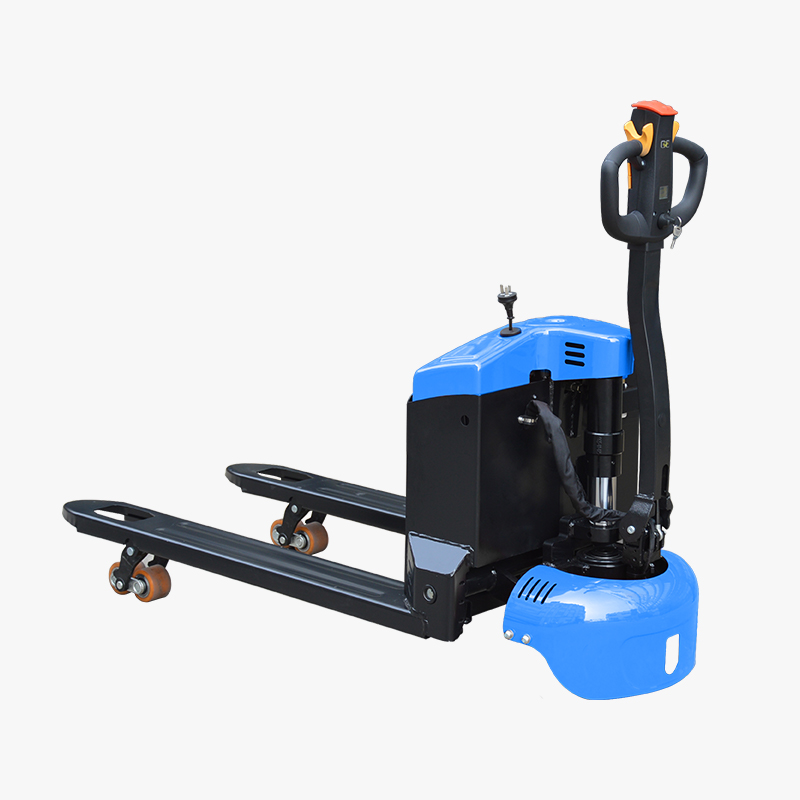

Detachable high-strength rear cover facilitates hassle-free maintenance and replacement of drive and auxiliary wheels.
The front body plate can be removed for hassle-free and rapid battery replacement.
Full-load climbing capacity up to 8%, easily handling slope operations.

Wheels:

Tyre type

PU

Tyre size, front

⌀×w (mm)

⌀210×75

Tyre size, rear

⌀×w (mm)

⌀75×45

Wheels, number front/rear (x=drive wheels)

1x, 0/4
Motor and Battery:

Drive motor rating S2 60 min

（kw)

0.75

Lift motor rating at S3 15%

（kw)

0.8

Battery type

Lead-acid

Battery voltage/nominal capacity

（V/Ah)

24/65

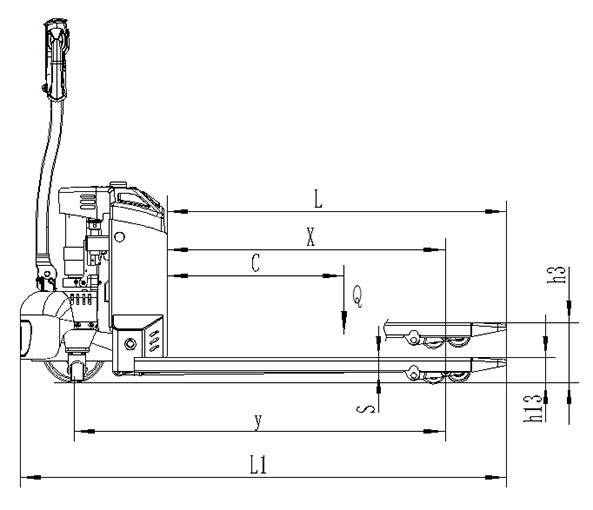

Dimensions:

Lowered height	h13 (mm)	85
Overall length	L1 (mm)	1596
Length to face of forks	L2 (mm)	500
Overall width	b1/b2 (mm)	685
Fork dimensions	s/e/l (mm)	50/150/1150
Fork spread	b5 (mm)	560/685
Ground clearance, center of wheelbase	m2 (mm)	35

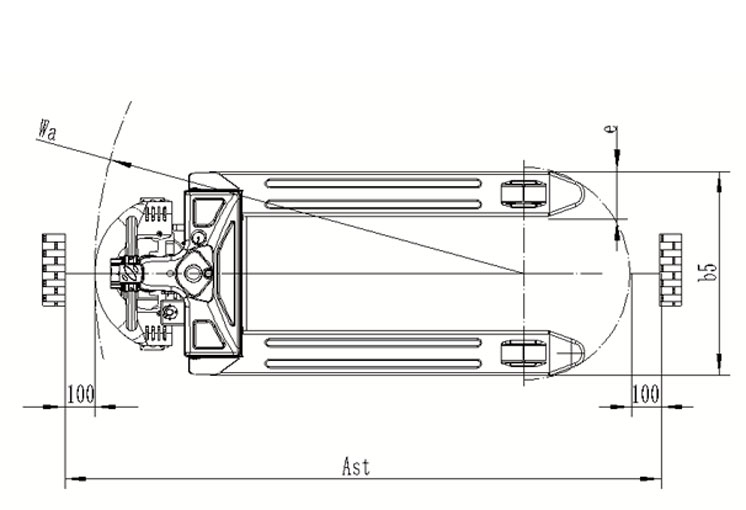

Aisle width for pallets 1000×1200 crossways	Ast (mm)	2156
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2070
Turning radius	Wa (mm)	1390

Performance:

Travel speed, laden/unladen	(km/h)	4.0/4.5
Lifting speed, laden/unladen	(mm/s)	12/12
Lowering speed, laden/unladen	(mm/s)	24/15
Max. gradeability, laden/unladen	%	6/16
Service brake		Electromagnetic

Others:

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical

Option:

24V/85Ah, 24V/100Ah Lead-acid battery

Swivel auxiliary wheel

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀210×75
Tyre size, rear	⌀×w (mm)	⌀75×45
Wheels, number front/rear (x=drive wheels)		1x, 0/4

Drive motor rating S2 60 min	（kw)	0.75
Lift motor rating at S3 15%	（kw)	0.8
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	24/65
