Yancheng Bingo Machinery Equipment Co., Ltd.

CBD30Y

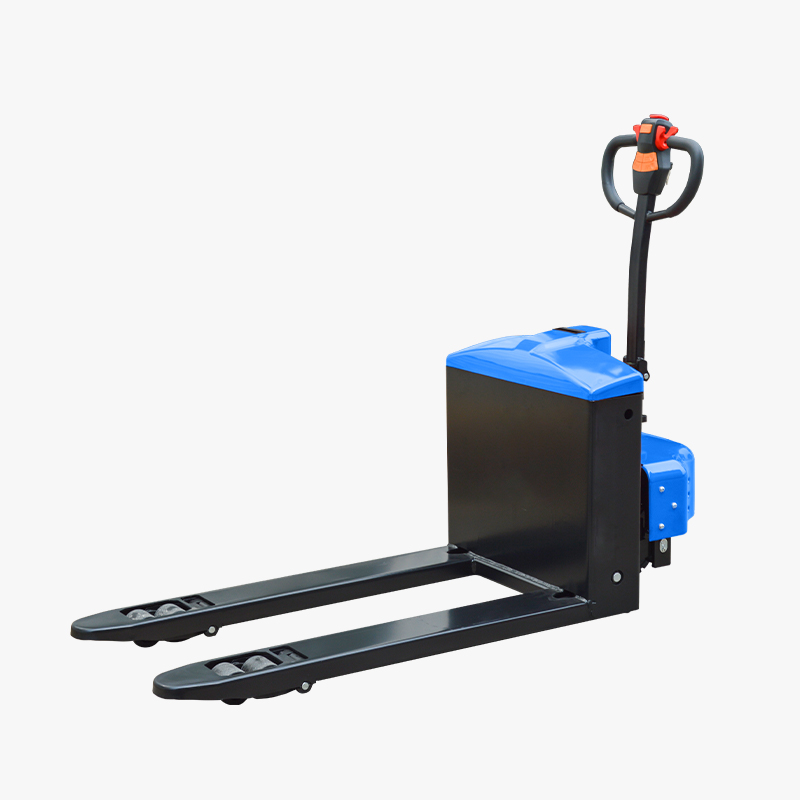

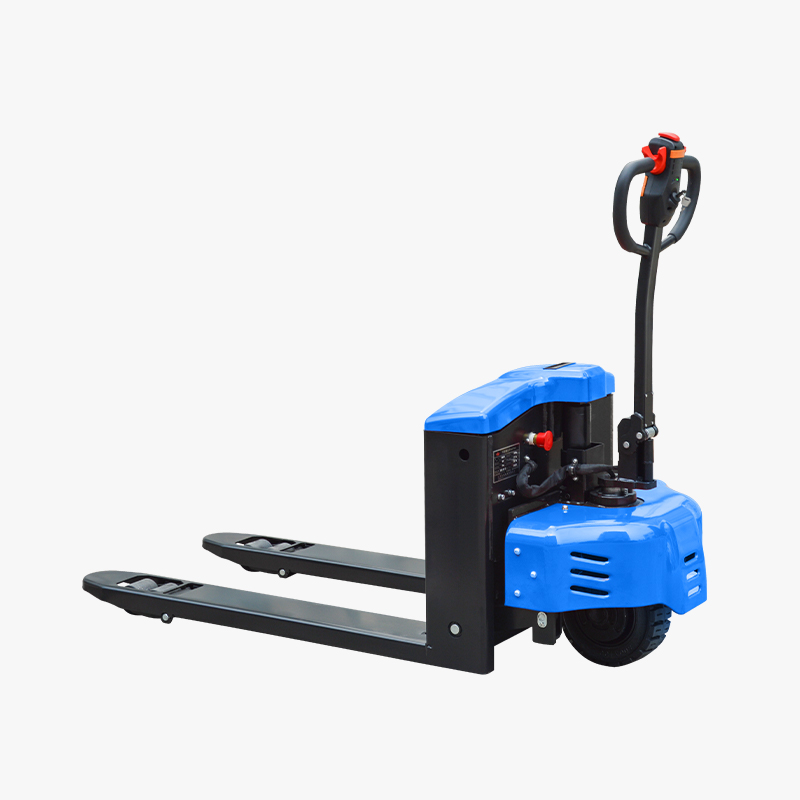

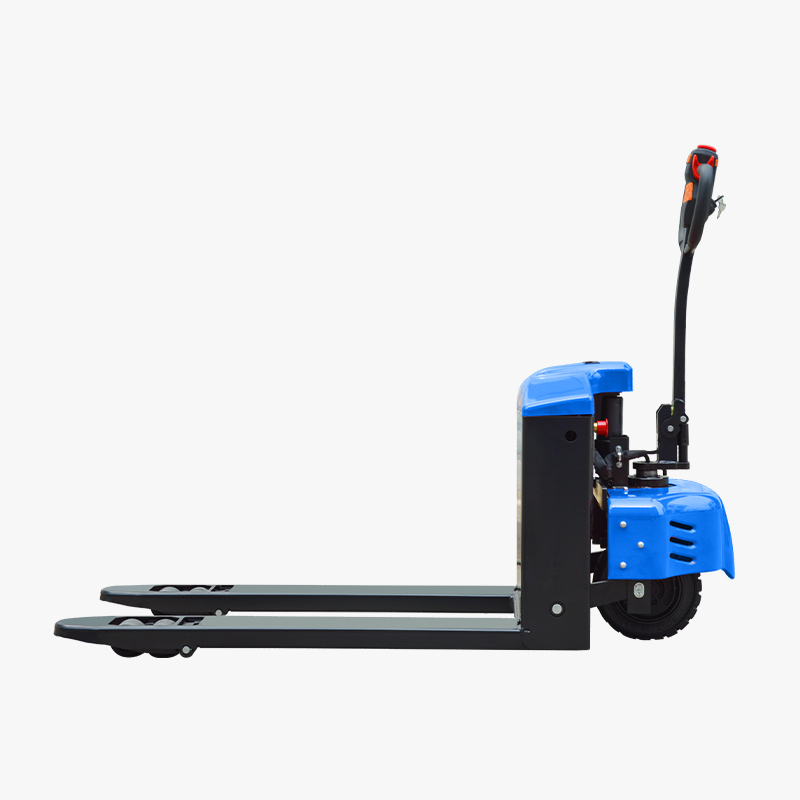

3000kg Electric Walkie Pallet Truck

Characteristics：

Model		CBD30Y
Operator type		Pedestrian
Rated load capacity	Q (kg)	3000
Lift height	h3 (mm)	205
Service weight	kg	245
Load center distance	c（mm)	600
Front overhang	x (mm)	942
Wheelbase	y (mm)	1300

You are here: Products / Electric Pallet Truck / 3000kg Electric Walkie Pallet Truck

Request a Quote

Advantages Detailed Specs

Full steel body, collision-resistant and sturdy.
It can climb a 12% slope with a 3-ton full load and a 15% slope with a 2-ton load.
Emergency reverse travel function, enabling operators to avoid potential injuries.
Detachable high-strength rear cover facilitates hassle-free maintenance and replacement of drive and auxiliary wheels.
The front body plate can be removed for hassle-free and rapid battery replacement.

Performance:

Travel speed, laden/unladen	(km/h)	4.0/4.5
Lifting speed, laden/unladen	(mm/s)	17/20
Lowering speed, laden/unladen	(mm/s)	35/30
Max. gradeability, laden/unladen	%	6/16
Service brake		Electromagnetic

Motor and Battery:

Drive motor rating S2 60 min	（kw)	1
Lift motor rating at S3 15%	（kw)	0.8
Battery type		Li-ion
Battery voltage/nominal capacity	（V/Ah)	48/20
Battery weight	（kg)	10

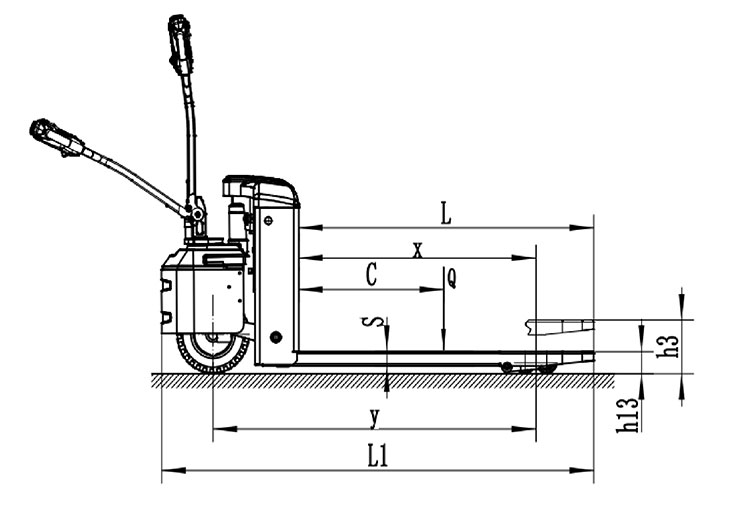

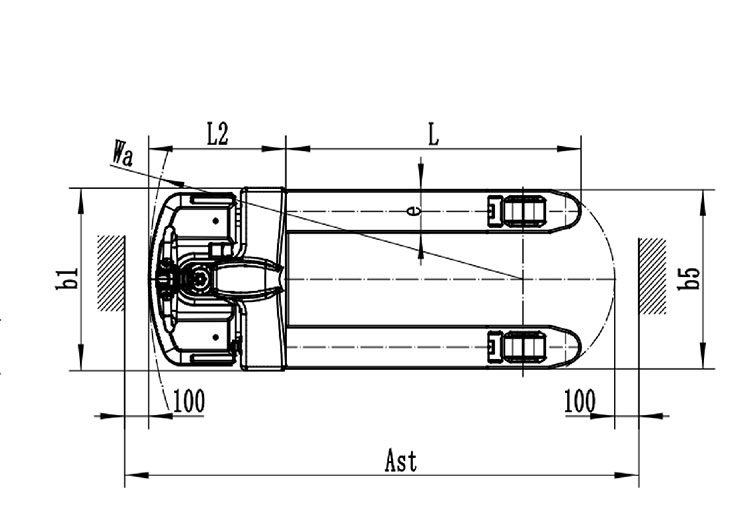

Dimensions:

Lowered height	h13 (mm)	87
Overall length	L1 (mm)	1735
Length to face of forks	L2 (mm)	585
Overall width	b1/b2 (mm)	700
Fork dimensions	s/e/l (mm)	50/160/1150
Fork spread	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	36
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2190
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2060
Turning radius	Wa (mm)	1535

Wheels:

Tyre size, front

⌀×w (mm)

⌀300×110 Rubber

Tyre size, rear

⌀×w (mm)

⌀80×60 Nylon

Wheels, number front/rear (x=drive wheels)

1x, 0/4

Others:

Sound pressure level at the driver's ear

dB (A)

69

Steering design

Mechanical

Option:

48V/30Ah Li-ion battery

Swivel auxiliary wheel

Tyre size, front	⌀×w (mm)	⌀300×110 Rubber
Tyre size, rear	⌀×w (mm)	⌀80×60 Nylon
Wheels, number front/rear (x=drive wheels)		1x, 0/4

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical
