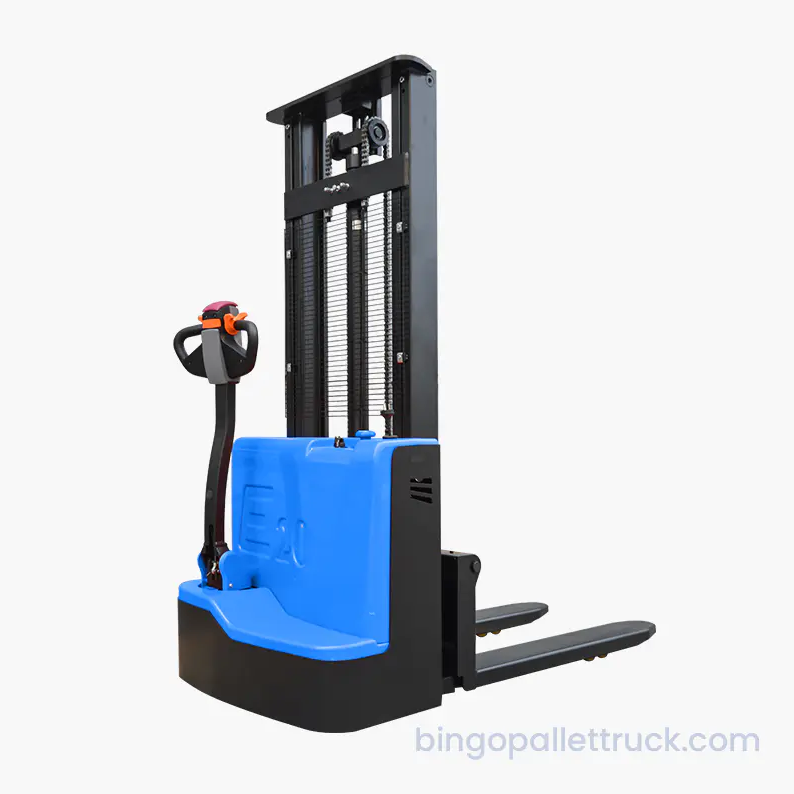

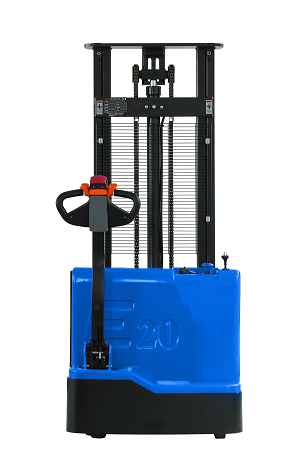

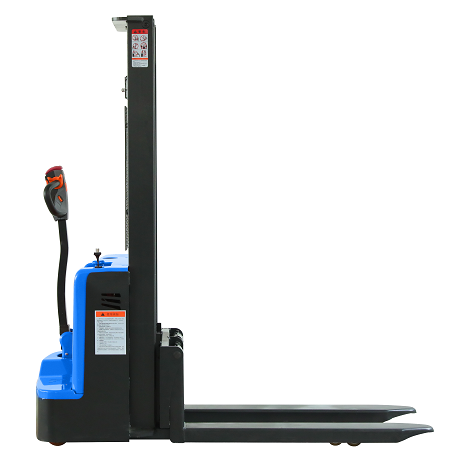

BINGO MACHINERY Launches CDDA20 2000kg Electric Walkie Stacker for Warehouse Material Handling

Bingo Machinery, a trusted global supplier of smart warehouse handling equipment, officially rolls out the brand-new CDDA20 2-ton pedestrian electric stacker. This walkie stacker is specially designed for medium-height stacking, confined-space warehouse operation and daily cargo stacking work, balancing operator safety, easy maneuverability and reliable load-bearing performance.

Content

1 Core Product Advantages
2 Full Technical Parameter Table
3 Wide Application Scenarios
4 Official Statement
5 Order & Custom Service Information
6 About Bingo Machinery

Core Product Advantages

1. Reliable Safety Protection System

Fixed mast wire mesh guard separates operators from loads to avoid collision risks; Explosion-proof hydraulic design prevents rapid mast drop when oil pipe ruptures; Emergency reverse travel function effectively protects operators from potential injuries.

2. User-Friendly Operation Configuration

Integrated built-in charger supports convenient anytime charging; Creep speed button ensures steady straight travel in narrow, confined working zones; Adjustable balance wheel bracket enables flexible adaptation to different ground conditions.

3. Stable Lifting Structure

Adopts dual-chain lifting structure, greatly improving lifting stability and long-term working reliability.

Full Technical Parameter Table

Category	Item	Specification
Basic Info	Model	CDDA20
	Operator Type	Pedestrian
	Rated Load Capacity	2000kg
Mast & Lifting	Mast Type	One-stage / Two-stage
	Lifting Height	1600 / 2000 / 2500 / 3000 / 3500mm
	Lowered Height	≤90mm
Body Dimensions	Overall Length	1854mm
	Overall Width	850mm
	Wheelbase	1231mm
	Turning Radius	1494mm
	Load Center Distance	500mm
Wheels	Wheel Material	PU
	Front Wheel Size	Φ210×75mm
	Rear Wheel Size	Φ80×60mm
	Balance Wheel Size	Φ115×55mm
Performance	Travel Speed (Loaded/Unloaded)	4.2 / 4.5 km/h
	Lifting Speed (Loaded/Unloaded)	75 / 100 mm/s
	Lowering Speed (Loaded/Unloaded)	85 / 95 mm/s
	Max Gradability (Loaded)	4.70%
Power System	Drive Motor Rating	0.9kW (S2 60 min)
	Lift Motor Rating	2.2kW (S3 15%)
	Battery Type	Lead-acid
	Battery Voltage/Capacity	48V / 65Ah
	Battery Weight	154kg
Control & Accessories	Controller	WTBL4800A/B-C4
	Service Brake	Electromagnetic
	Steering Design	Mechanical
	Sound Pressure Level	69 dB(A)
Optional Upgrades	1. 48V 100Ah Lithium-ion battery2. High-positioned lateral auxiliary wheel

Wide Application Scenarios

Small and medium-sized storage warehouses
Supermarket backstock stacking operations
Manufacturing workshop goods stacking
E-commerce small sorting stations
Logistics stores with limited working space

Official Statement

“The CDDA20 walkie electric stacker is built to satisfy daily stacking demands of compact warehouses,” said Kevin Meng, Export Manager of Bingo Machinery. “We equip this model with comprehensive safety functions and stable dual-chain lifting system. Its compact body and creep speed function make it ideal for operation in tight aisles. It serves as an economical, practical stacking solution for small-to-medium enterprises around the world.”

Order & Custom Service Information

The CDDA20 electric walkie stacker is open for global bulk orders now. Optional lithium battery and lateral auxiliary wheel can be configured according to customer site requirements. For detailed quotations, technical drawings and customized scheme consultation, please visit our official website:
www.bingopallettruck.com

About Bingo Machinery

Bingo Machinery focuses on the R&D, production and global export of full-series warehouse logistics equipment, covering electric pallet trucks, manual stackers, stand-on reach stackers, plastic pallets and turnover storage containers. We provide one-stop customized smart logistics solutions for cooperative clients across Europe, Southeast Asia, Latin America, the Middle East and Africa, with stable product quality, competitive bulk pricing and comprehensive after-sales service support.
