CDD20DS

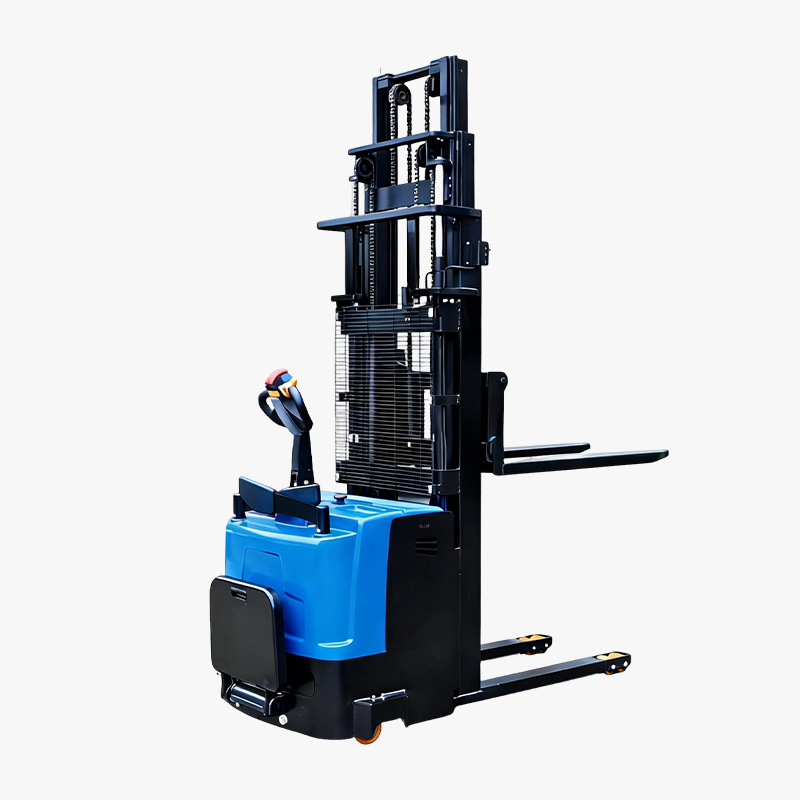

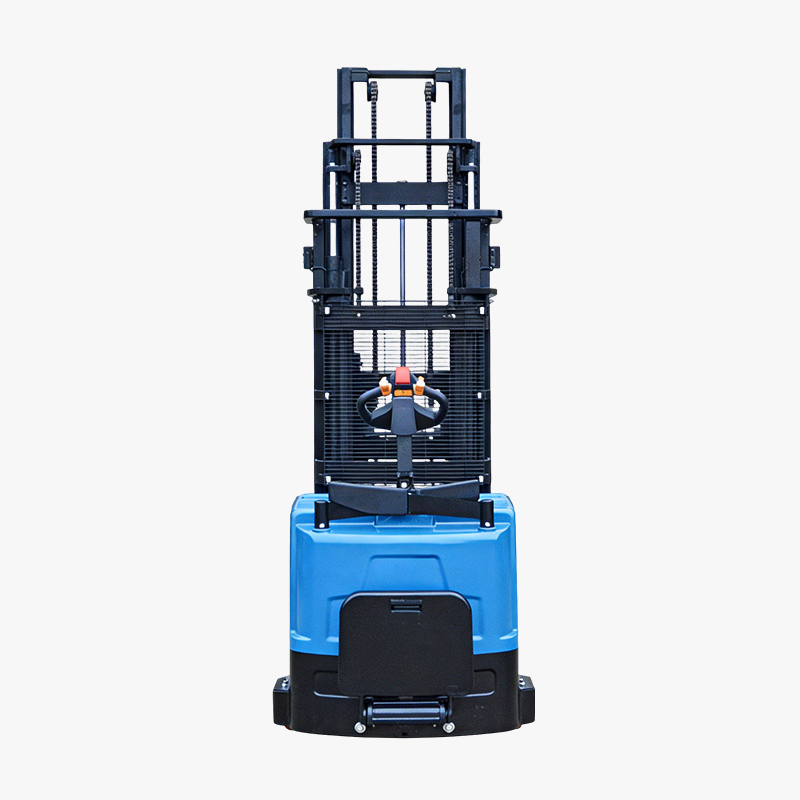

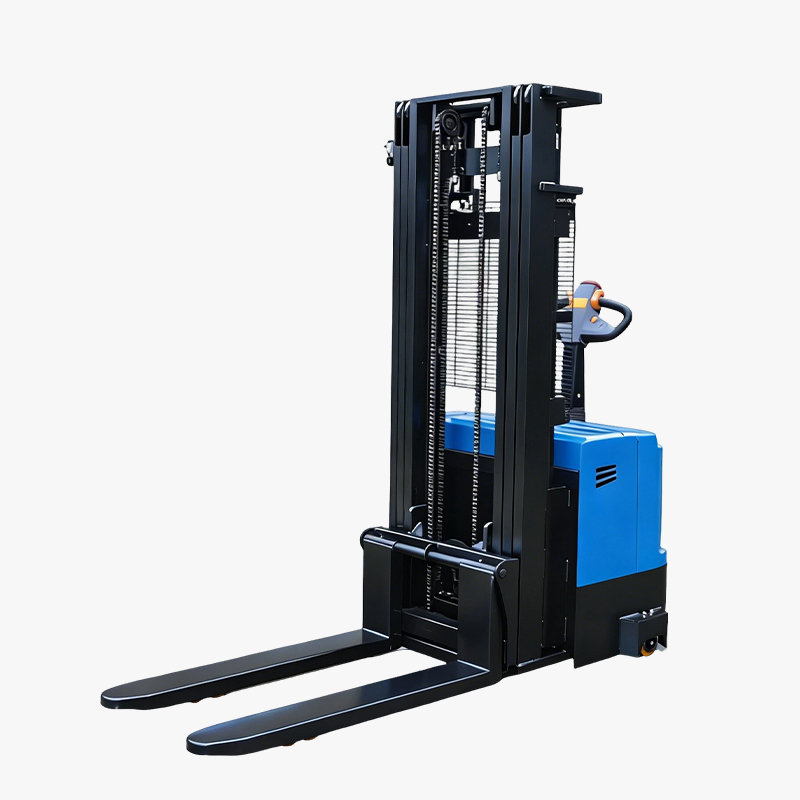

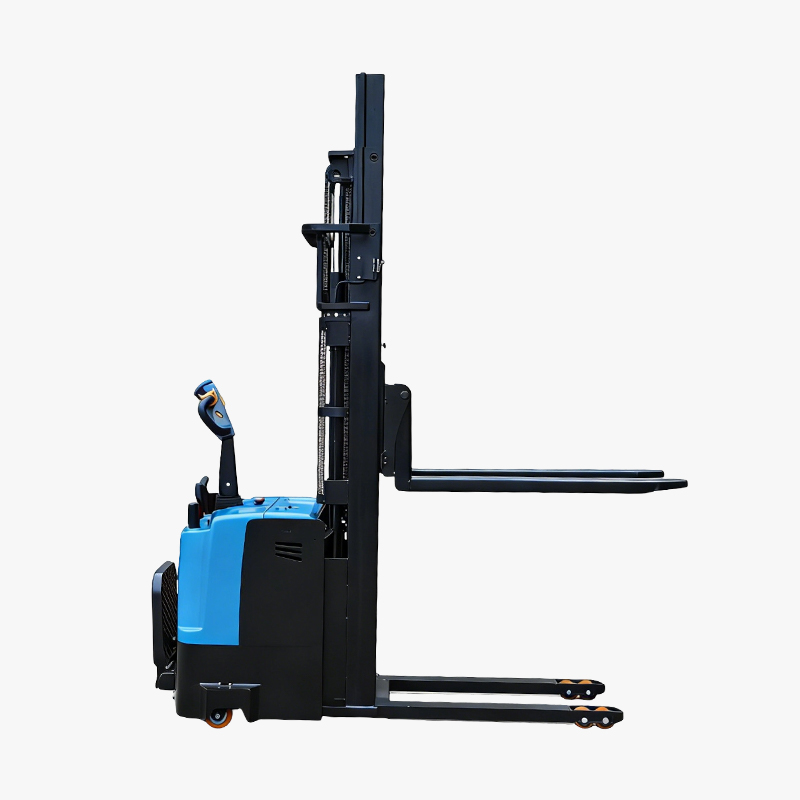

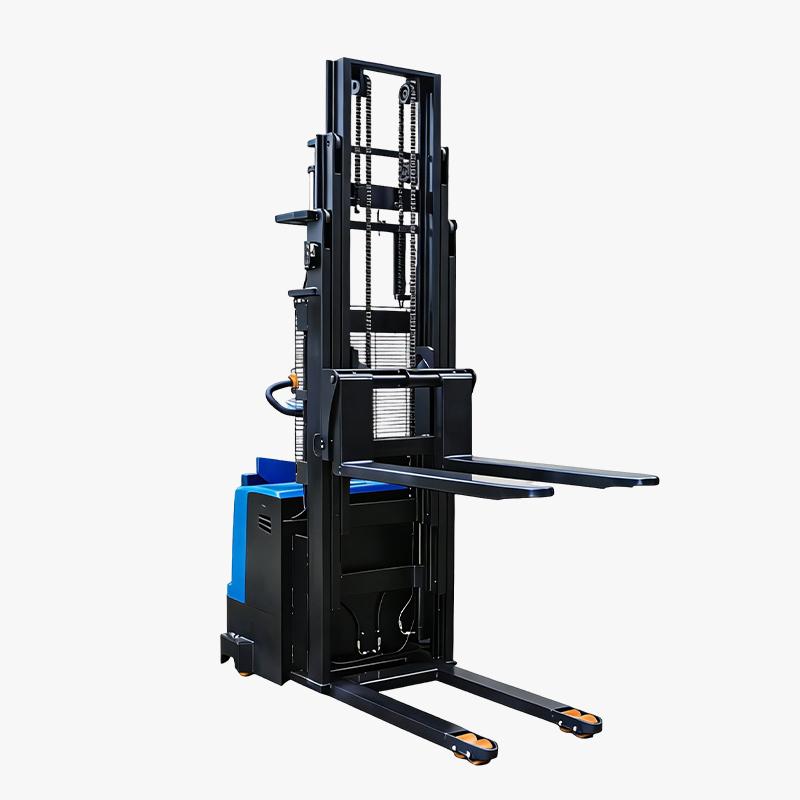

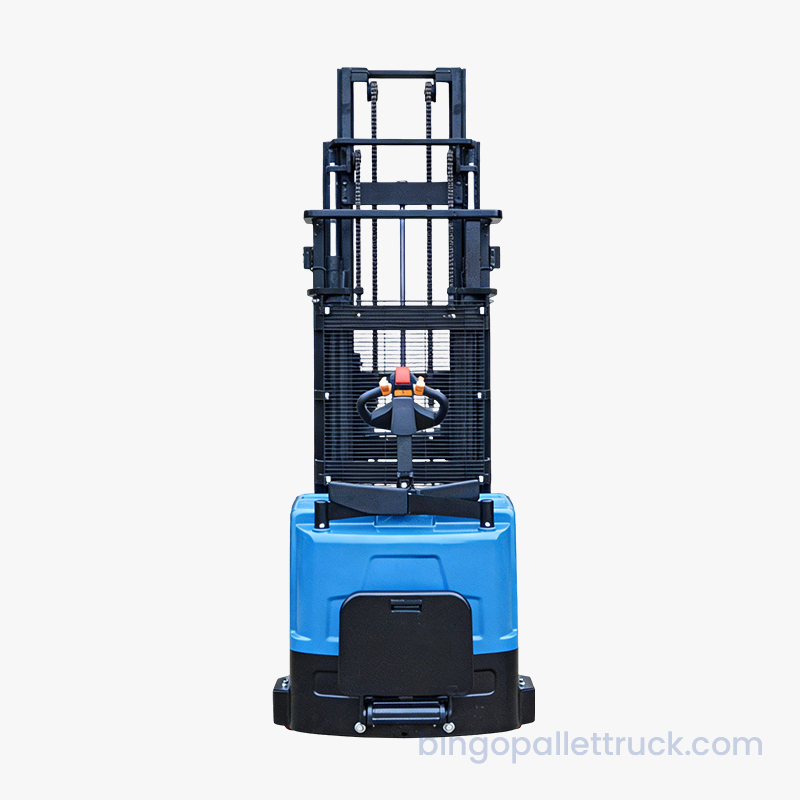

2000kg Three Mast Electric Stand-on Stacker for Logistics


Characteristics:

Model



CDD20DS

Operator type



Stand-on

Rated load capacity

Q (kg)

2000

Mast type



Three-stage

Lift height

h3 (mm)

4000/4500/5000/5500

Service weight

kg

1130/1160/1190/1230

Load center distance

c(mm)

500

Front overhang

x (mm)

764

Wheelbase

y (mm)

1457.5

Controller



LVM24S20

You are here: Products / Electric Stacker / 2000kg Three Mast Electric Stand-on Stacker for Logistics

Request a Quote

Its foldable pedal allows low-speed operation in smaller spaces when folded.
No load loss or accidental tipping at 2.5m lifting height.
Fixed mast wire mesh guard provides operator-load separation for safe operation.
Its explosion-proof hydraulic system ensures the mast will not drop rapidly, even if the oil pipe bursts unexpectedly.
Equipped with an emergency reverse travel function, it effectively prevents operators from sustaining injuries.
Adopting a dual-chain structure, it delivers consistent stability during lifting processes.

  • Wheels:

    Tyre type



    PU

    Tyre size, front

    ⌀×w (mm)

    ⌀250×80

    Tyre size, rear

    ⌀×w (mm)

    ⌀80×60

    Balance wheel

    ⌀×w (mm)

    ⌀115×55

    Wheels, number front/rear (x=drive wheels)



    1x, 2/4



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    5.5/5.8

    Lifting speed, laden/unladen

    (mm/s)

    75/125

    Lowering speed, laden/unladen

    (mm/s)

    95/110

    Max. gradeability, laden/unladen

    %

    5/8

    Service brake



    Electromagnetic

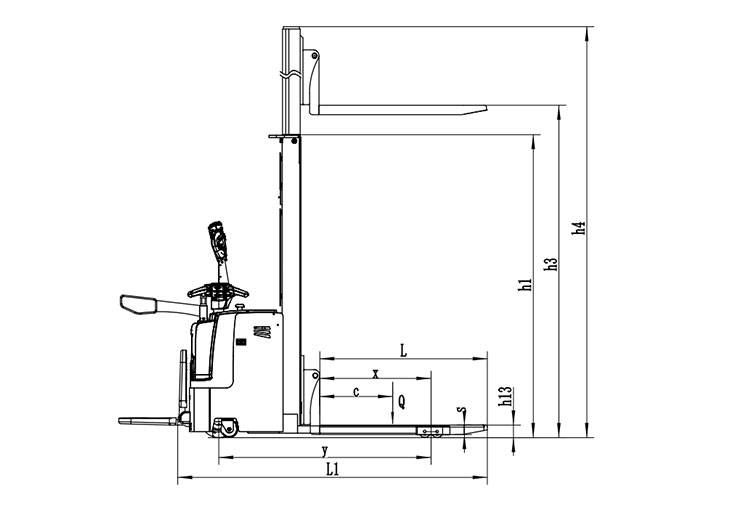

  • Dimensions:

    Lowered height

    h13 (mm)

    ≤90

    Height, mast lowered

    h1 (mm)

    1900/2070/2240/2410

    Height, mast extended

    h4 (mm)

    4506/5010/5514/6016

    Overall length

    L1 (mm)

    2245

    Length to face of forks

    L2 (mm)

    1085

    Overall width

    b1/b2 (mm)

    1150

    Fork dimensions

    s/e/l (mm)

    55/165/1150

    Fork spread

    b5 (mm)

    550/685

    Ground clearance, center of wheelbase

    m2 (mm)

    30

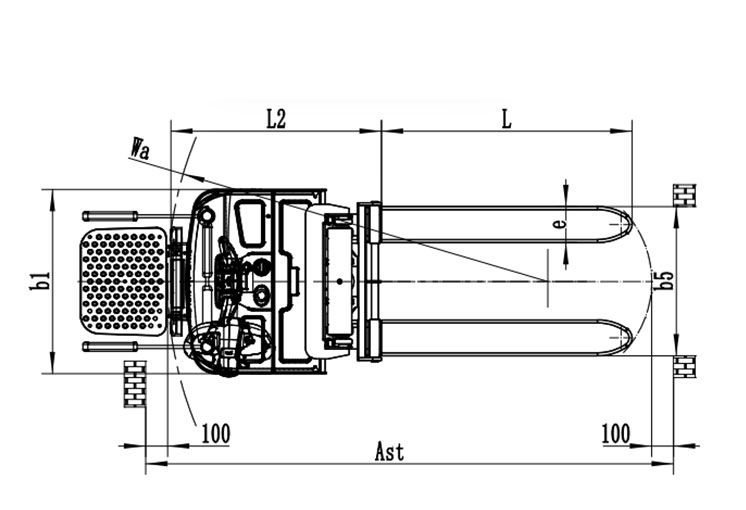

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    2608

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    2536

    Turning radius

    Wa (mm)

    1744



  • Motor and Battery:

    Drive motor rating S2 60 min

    (kw)

    1.5

    Lift motor rating at S3 15%

    (kw)

    2.2

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    24/210

    Battery weight

    (kg)

    180


    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Mechanical


    Option:

    Curtis controller

    100/150/200/280/330Ah Lithium battery
