Electric Stand-on Stacker

Integrated Solutions for Warehousing and Logistics

Yancheng Bingo Machinery Equipment Co., Ltd.
CDD20ES

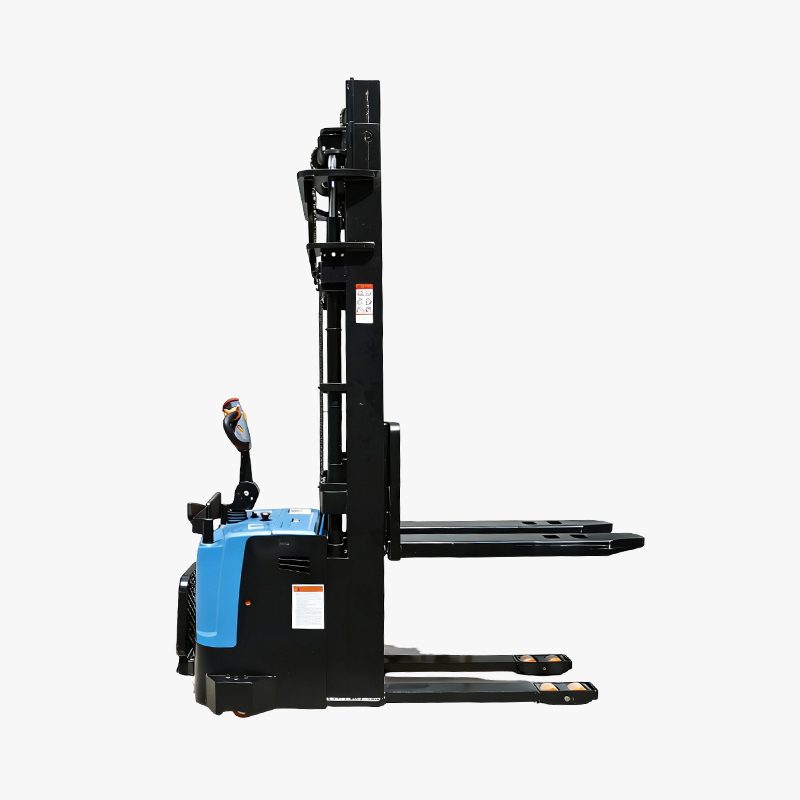

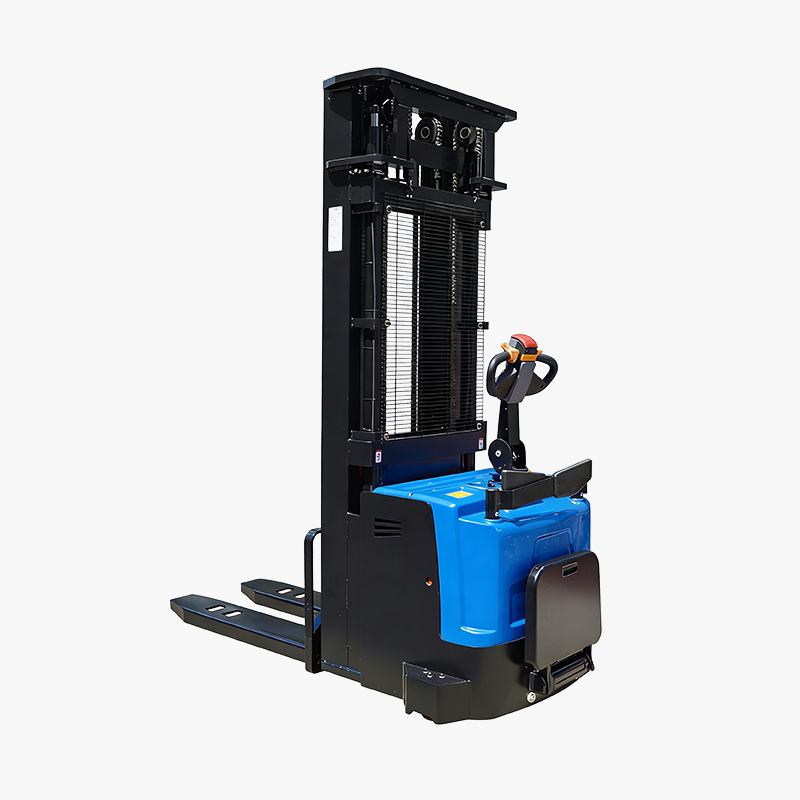

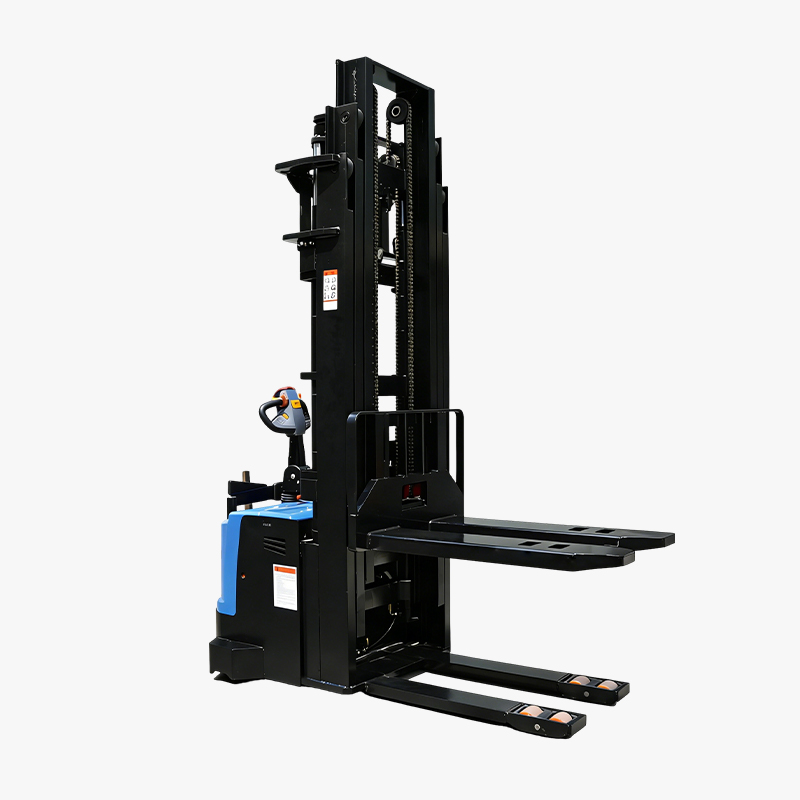

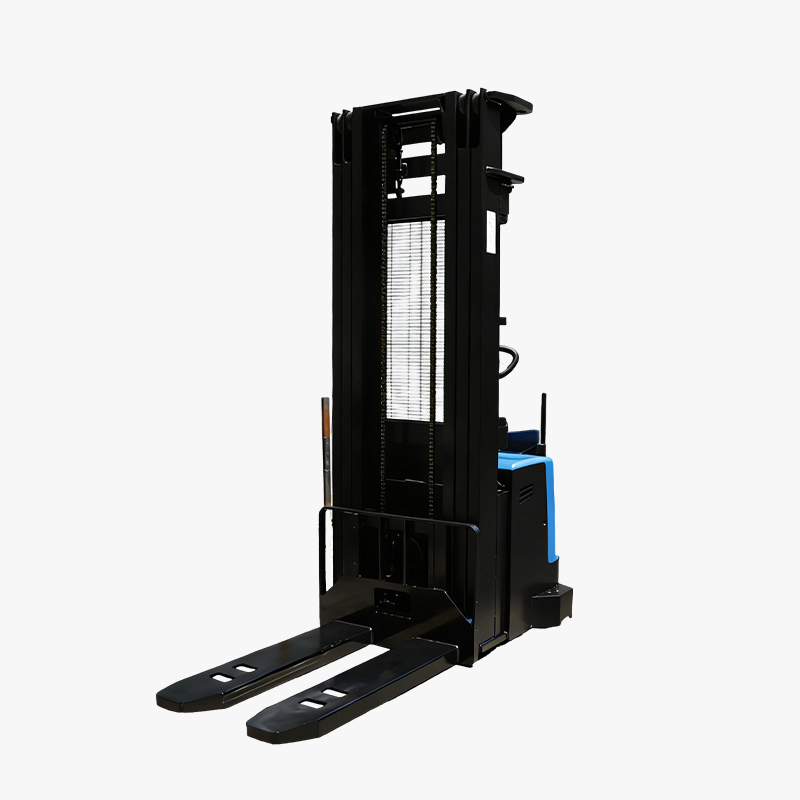

2000kg EPS Three Mast Electric Stand-on Stacker for High Reach


Characteristics:

Model



CDD20ES

Operator type



Stand-on

Rated load capacity

Q (kg)

2000

Mast type



Three-stage

Lift height

h3 (mm)

4000/4500/5000/5500

Service weight

kg

1130/1190/1230/1252

Load center distance

c(mm)

500

Front overhang

x (mm)

764

Wheelbase

y (mm)

1410

Controller



LVM24S20

You are here: Products / Electric Stacker / 2000kg EPS Three Mast Electric Stand-on Stacker for High Reach

Request a Quote

The integrated EPS electronic power steering system significantly reduces operational effort for operators.
Foldable pedal enables low-speed work in compact spaces.
It achieves no load loss and no tipping even at 2.5m lifting height.
Its fixed mast wire mesh guard isolates operators from loads, ensuring operational safety.
With a dedicated explosion-proof hydraulic design, the equipment prevents rapid mast descent in case of oil pipe rupture.
With emergency reverse travel capability, operators can easily avoid potential injuries during operation.
Featuring a dual-chain structure, the equipment achieves enhanced stability during lifting.
The equipment features automatic speed reduction during turning for enhanced operational safety.

  • Wheels:

    Tyre type



    PU

    Tyre size, front

    ⌀×w (mm)

    ⌀230×75

    Tyre size, rear

    ⌀×w (mm)

    ⌀80×60

    Balance wheel

    ⌀×w (mm)

    ⌀115×55

    Wheels, number front/rear (x=drive wheels)



    1x, 2/4



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    5.5/6.0

    Lifting speed, laden/unladen

    (mm/s)

    75/125

    Lowering speed, laden/unladen

    (mm/s)

    95/110

    Max. gradeability, laden/unladen

    %

    5/8

    Service brake



    Electromagnetic

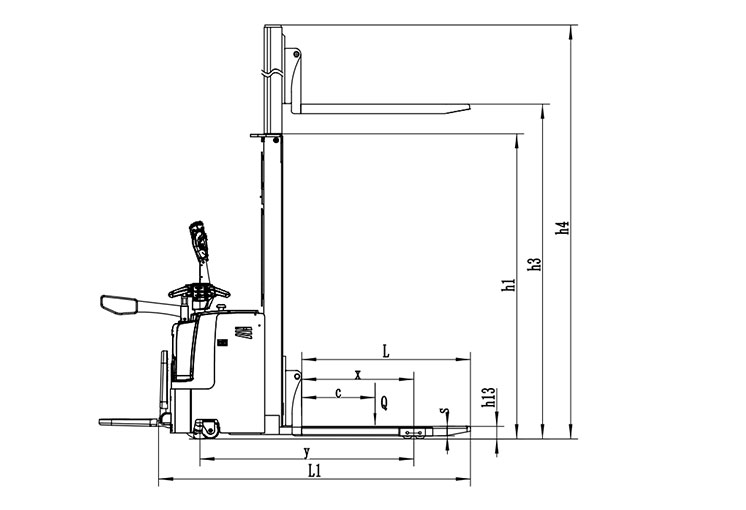

  • Dimensions:

    Lowered height

    h13 (mm)

    88

    Height, mast lowered

    h1 (mm)

    1900/2070/2240/2410

    Height, mast extended

    h4 (mm)

    4470/4980/5490/6000

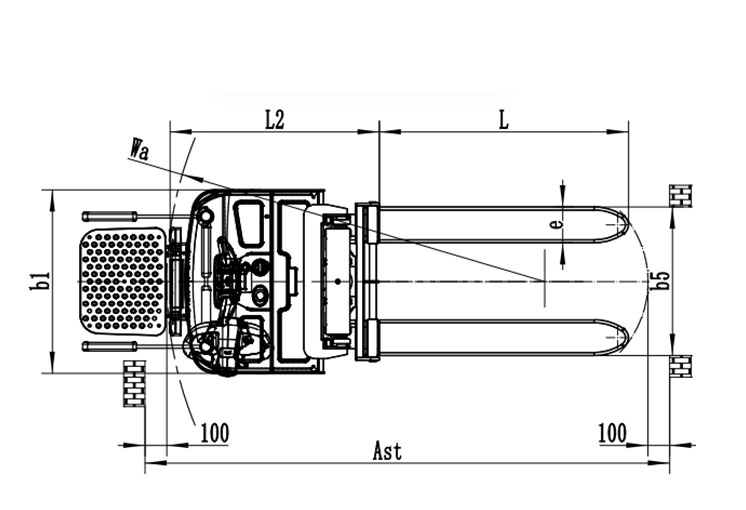

    Overall length

    L1 (mm)

    2245

    Length to face of forks

    L2 (mm)

    965

    Overall width

    b1/b2 (mm)

    1150

    Fork dimensions

    s/e/l (mm)

    55/165/1150

    Fork spread

    b5 (mm)

    550/685

    Ground clearance, center of wheelbase

    m2 (mm)

    30

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    2608

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    2536

    Turning radius

    Wa (mm)

    1744



  • Motor and Battery:

    Drive motor rating S2 60 min

    (kw)

    2.2

    Lift motor rating at S3 15%

    (kw)

    2.2

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    24/210

    Battery weight

    (kg)

    180

    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Electronic


    Option:

    Curtis controller

    150/200Ah Lithium battery
