Yancheng Bingo Machinery Equipment Co., Ltd.

CPD06J

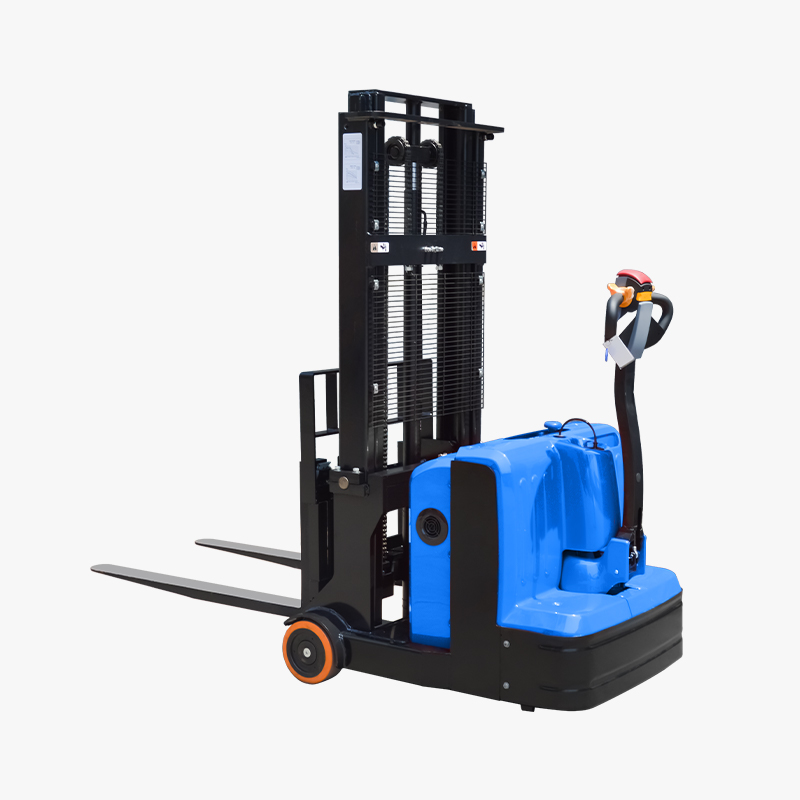

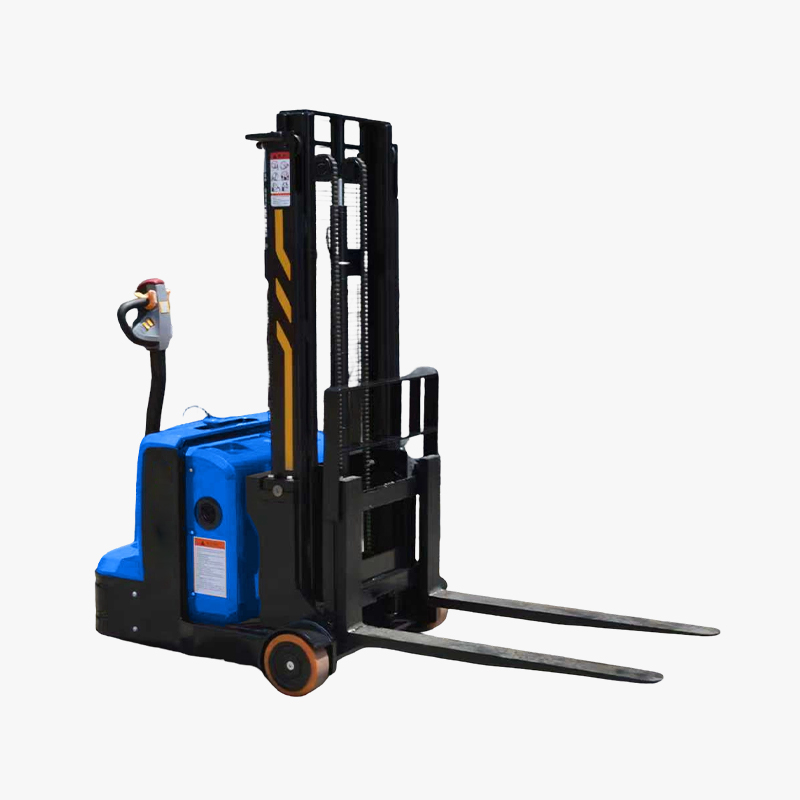

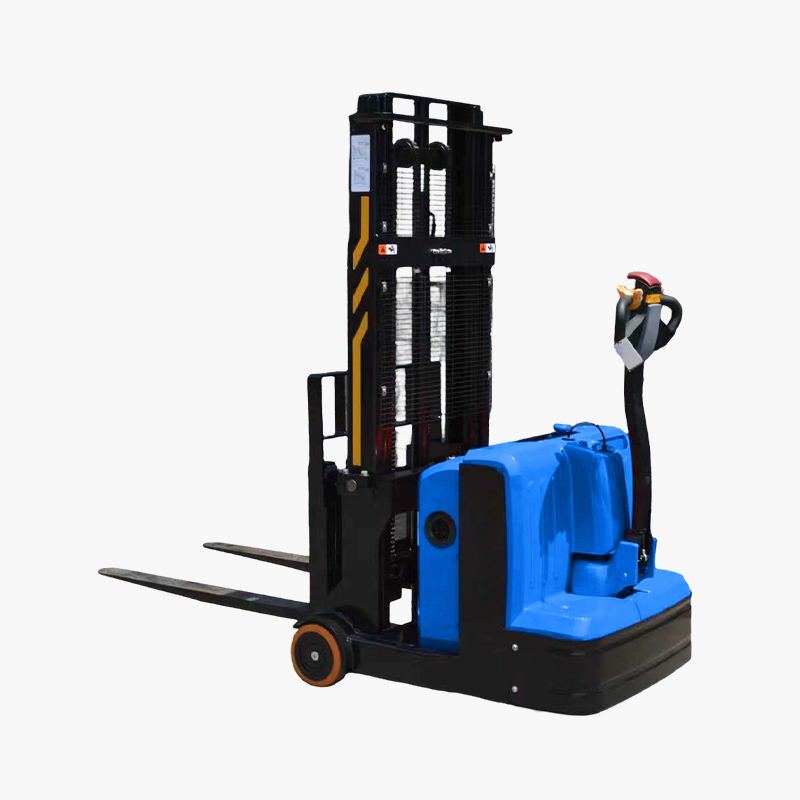

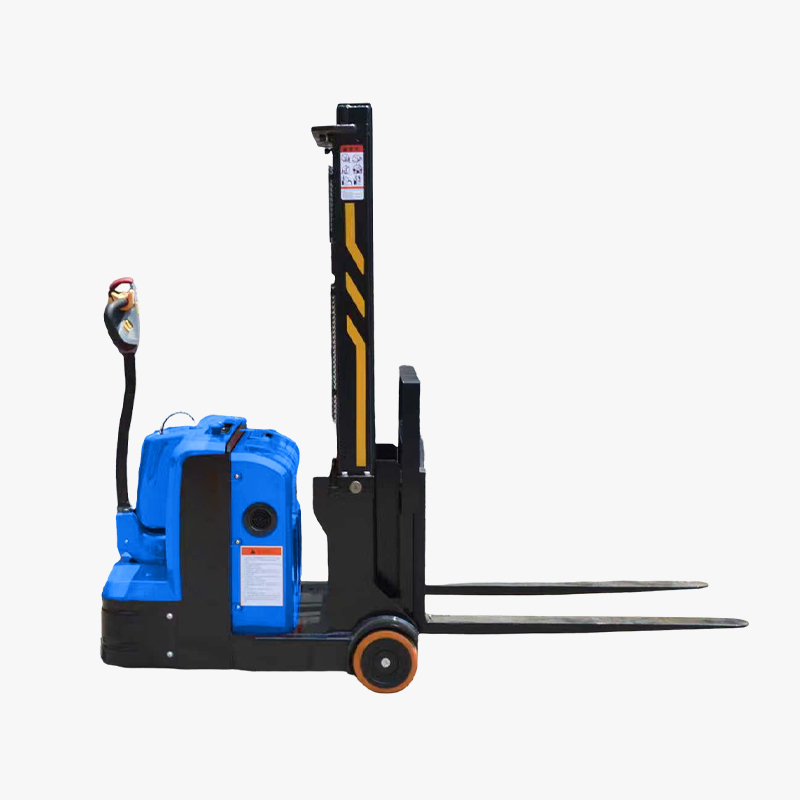

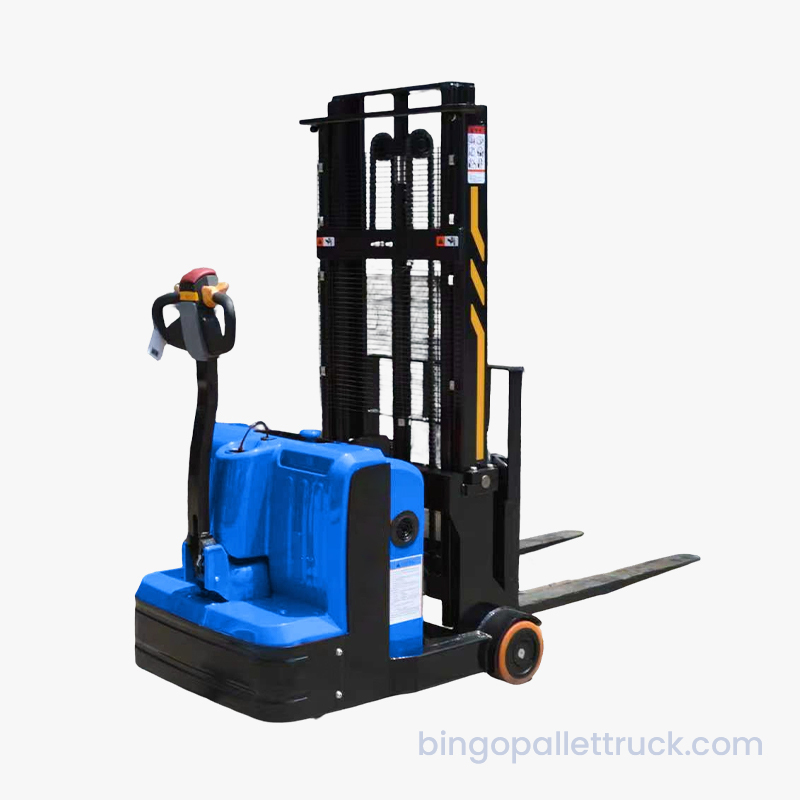

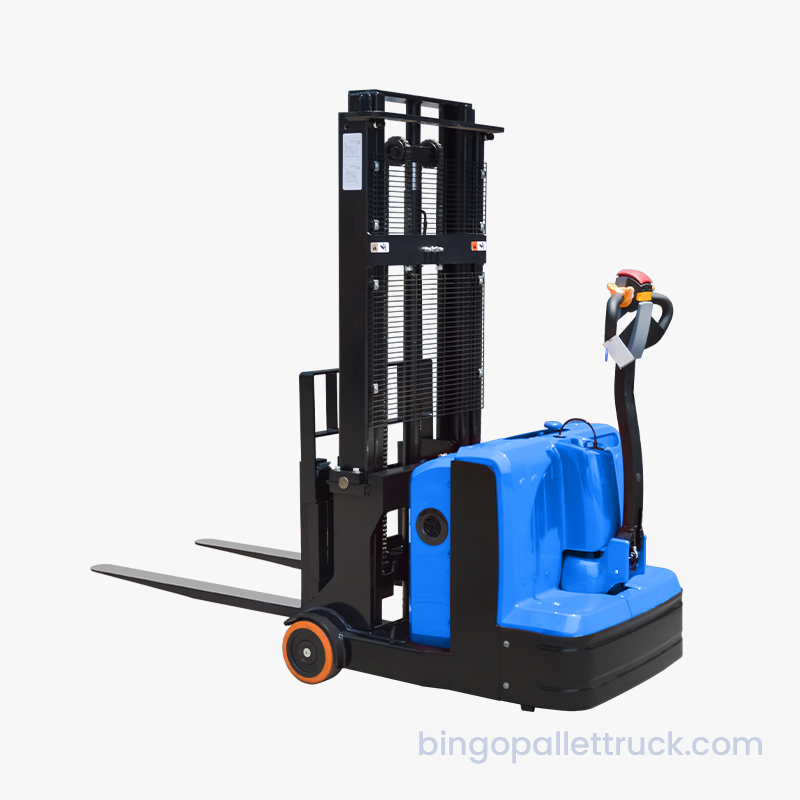

500kg Counterbalanced Electric Walkie Stacker

Characteristics：

Model		CPD06J
Operator type		Pedestrian
Rated load capacity	Q (kg)	500
Mast type		One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500
Rated capacity at maximum lift height	kg	500	500/500/400/350
Service weight	kg	1060	1210/1230/1250/1300
Load center distance	c（mm)	500
Front overhang	x (mm)	119
Wheelbase	y (mm)	790
Controller		D2P

You are here: Products / Electric Stacker / 500kg Counterbalanced Electric Walkie Stacker

Request a Quote

Advantages Detailed Specs

Ventilation holes in the electrical compartment ensure excellent heat dissipation, thus guaranteeing the stable operation of batteries and other components
Hi-Lo speed button for quick and easy speed switching, meeting diverse operational needs.
Detachable high-strength rear cover facilitates hassle-free maintenance and replacement of drive and auxiliary wheels.
Equipped with a ramp anti-slip function to ensure operational safety.

Wheels:

Tyre type

PU

Tyre size, front

⌀×w (mm)

⌀210×75

Tyre size, rear

⌀×w (mm)

⌀210×85

Wheels, number front/rear (x=drive wheels)

1x, 0/2

Performance:

Travel speed, laden/unladen	(km/h)	4.0/4.5
Lifting speed, laden/unladen	(mm/s)	110/155
Lowering speed, laden/unladen	(mm/s)	100/110
Max. gradeability, laden/unladen	%	5/8
Service brake		Electromagnetic

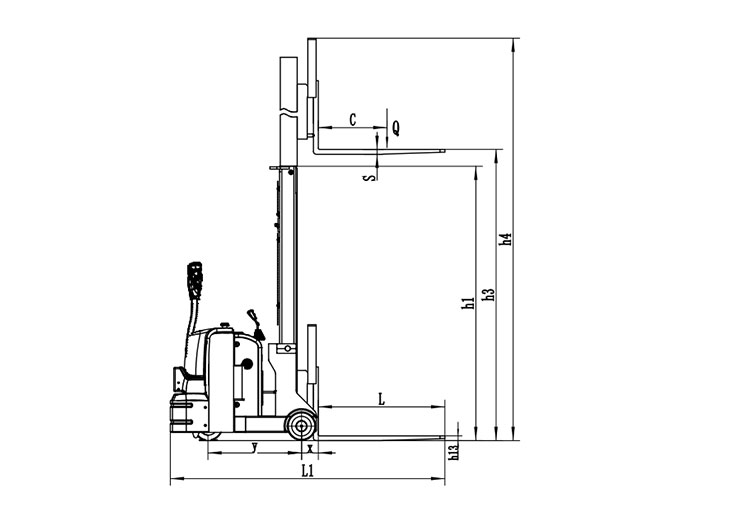

Dimensions:

Lowered height	h13 (mm)	≤65
Height, mast lowered	h1 (mm)	2095	1595/1845/1995/2345
Height, mast extended	h4 (mm)	2095	2695/3197/3700/4200
Overall length	L1 (mm)	2014
Length to face of forks	L2 (mm)	1054
Overall width	b1/b2 (mm)	950
Fork dimensions	s/e/l (mm)	30/100/920
Fork spread	b5 (mm)	210-685
Ground clearance, center of wheelbase	m2 (mm)	60

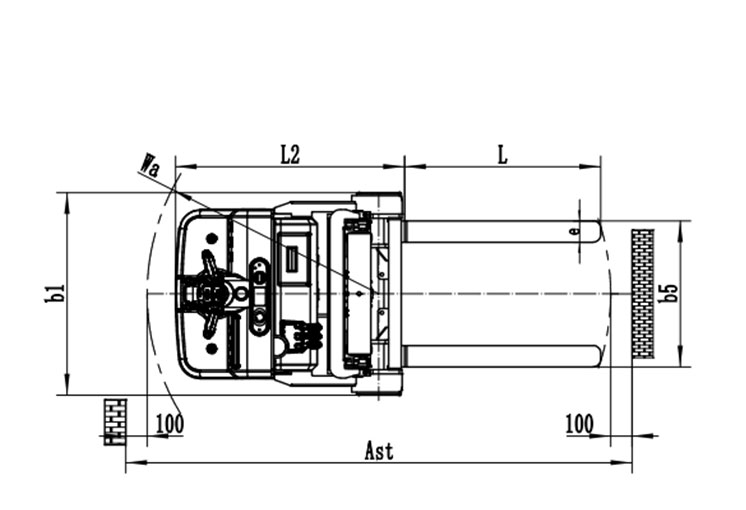

Aisle width for pallets 1000×1200 crossways	Ast (mm)	2630
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2598
Turning radius	Wa (mm)	1010

Motor and Battery:

Drive motor rating S2 60 min	（kw)	0.75
Lift motor rating at S3 15%	（kw)	2.2
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	24/100
Battery weight	（kg)	27.5×2

Others：

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Mechanical

Option：

Fork tilt

Fork side shift

Foldable fork design

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀210×75
Tyre size, rear	⌀×w (mm)	⌀210×85
Wheels, number front/rear (x=drive wheels)		1x, 0/2
