Counterbalanced Electric Walkie Stacker

Integrated Solutions for Warehousing and Logistics

Yancheng Bingo Machinery Equipment Co., Ltd.
CPD10JL

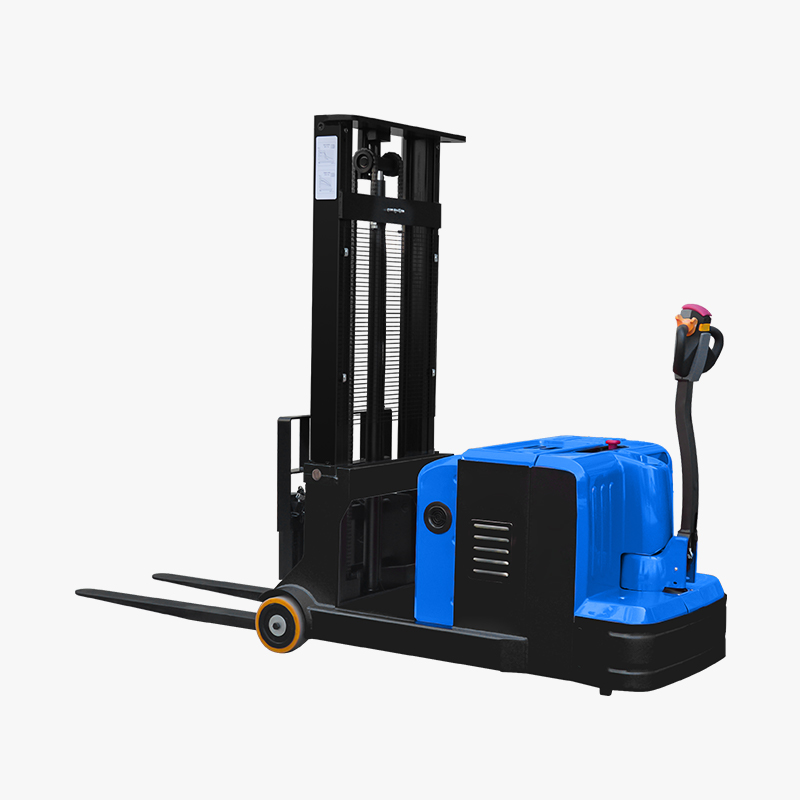

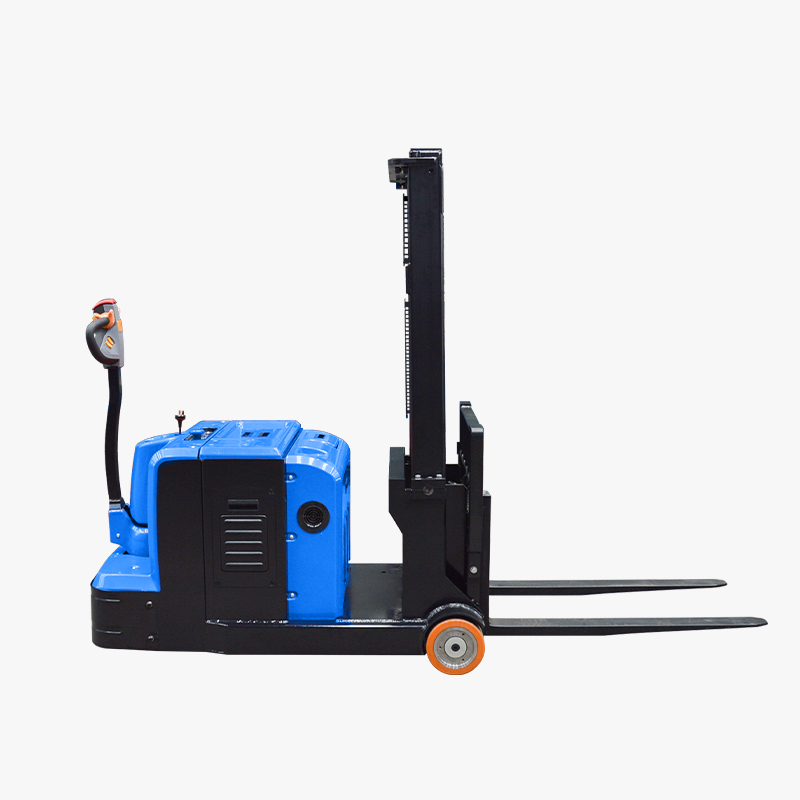

1000kg Counterbalanced Electric Walkie Stacker for Warehouse


Characteristics:

Model



CPD10JL

Operator type



Pedestrian

Rated load capacity

Q (kg)

1000

Mast type



One-stage

Two-stage

Lift height

h3 (mm)

1600

2000/2500/3000/3500

Rated capacity at maximum lift height

kg

1000

1000/1000/850/700

Service weight

kg

1440

1490/1510/1530/1580

Load center distance

c(mm)

500

Front overhang

x (mm)

119

Wheelbase

y (mm)

1190

Controller



D4P

You are here: Products / Electric Stacker / 1000kg Counterbalanced Electric Walkie Stacker for Warehouse

Request a Quote

Ventilation holes in the electrical compartment ensure efficient heat dissipation and stable battery & component operation.
The Hi-Lo speed button allows easy, quick speed switching to meet diverse operational needs.
The detachable high-strength rear cover simplifies maintenance and replacement of drive and auxiliary wheels.
Built-in ramp anti-slip function safeguards operational safety.

  • Wheels:

    Tyre type



    PU

    Tyre size, front

    ⌀×w (mm)

    ⌀210×75

    Tyre size, rear

    ⌀×w (mm)

    ⌀210×85

    Wheels, number front/rear (x=drive wheels)



    1x, 0/2



  • Performance:

    Travel speed, laden/unladen

    (km/h)

    4.0/4.5

    Lifting speed, laden/unladen

    (mm/s)

    110/155

    Lowering speed, laden/unladen

    (mm/s)

    100/110

    Max. gradeability, laden/unladen

    %

    5/8

    Service brake



    Electromagnetic

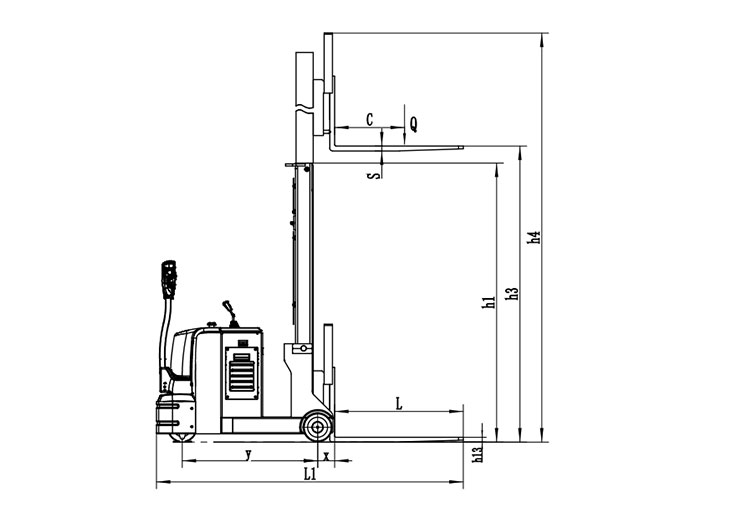

  • Dimensions:

    Lowered height

    h13 (mm)

    ≤65

    Height, mast lowered

    h1 (mm)

    2095

    1595/1845/1995/2345

    Height, mast extended

    h4 (mm)

    2095

    2695/3197/3700/4200

    Overall length

    L1 (mm)

    2566

    Length to face of forks

    L2 (mm)

    1456

    Overall width

    b1/b2 (mm)

    950

    Fork dimensions

    s/e/l (mm)

    40/100/1070

    Fork spread

    b5 (mm)

    210-685

    Ground clearance, center of wheelbase

    m2 (mm)

    60

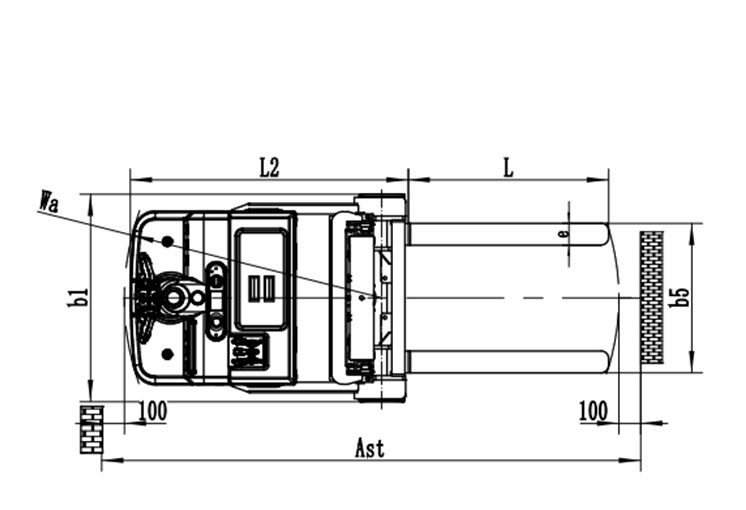

    Aisle width for pallets 1000×1200 crossways

    Ast (mm)

    3027

    Aisle width for pallets 800×1200 lengthways

    Ast (mm)

    2996

    Turning radius

    Wa (mm)

    1394



  • Motor and Battery:

    Drive motor rating S2 60 min

    (kw)

    0.75

    Lift motor rating at S3 15%

    (kw)

    2.2

    Battery type



    Lead-acid

    Battery voltage/nominal capacity

    (V/Ah)

    24/100

    Battery weight

    (kg)

    27.5×2

    Others:

    Sound pressure level at the driver's ear

    dB (A)

    69

    Steering design



    Mechanical

    Option:

    Fork tilt

    Fork side shift

    Foldable fork design
