CDD20E

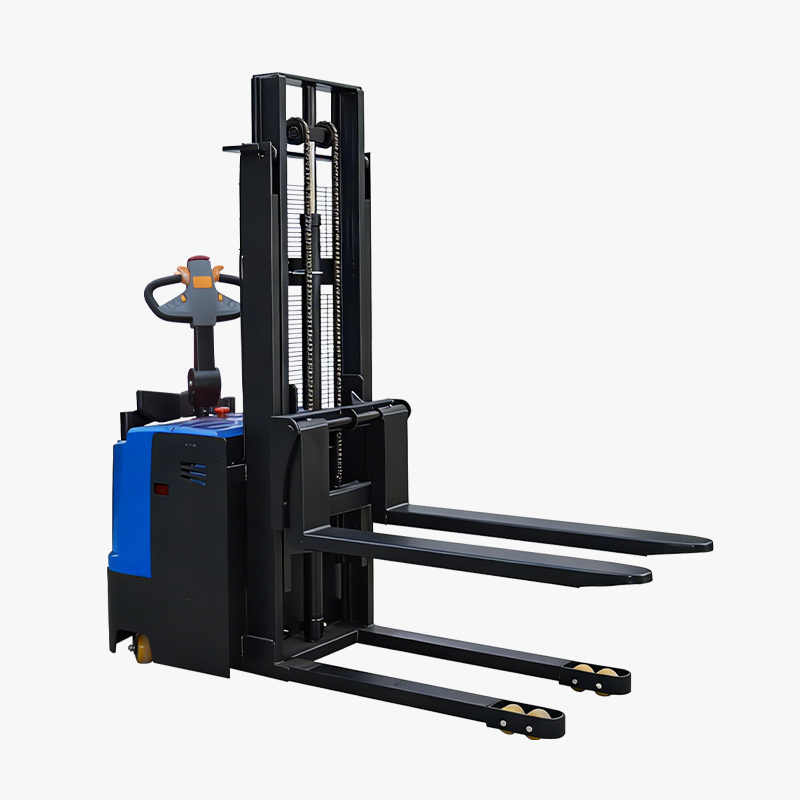

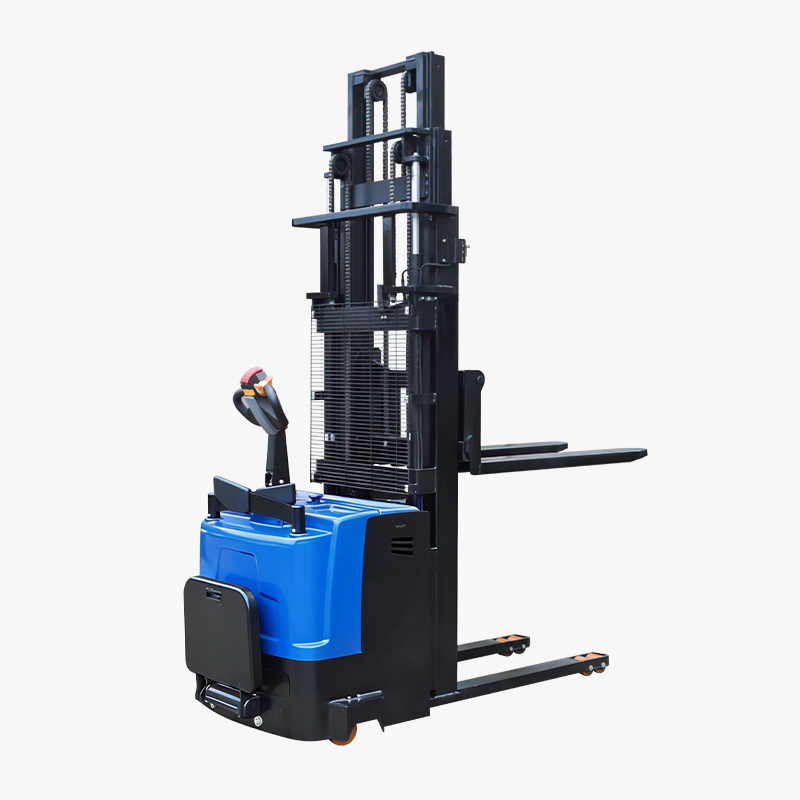

2000kg EPS Electric Stand-on Stacker

Characteristics：

Model		CDD20E
Operator type		Stand-on
Rated load capacity	Q (kg)	2000
Mast type		One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500/4000
Service weight	kg	833	923/937/976/988/1020
Load center distance	c（mm)	500
Front overhang	x (mm)	764
Wheelbase	y (mm)	1410
Controller		LVM24S20

You are here: Products / Electric Stacker / 2000kg EPS Electric Stand-on Stacker

Request a Quote

Advantages Detailed Specs

Equipped with EPS electronic power steering, ensuring low-effort operation.
After folding the pedal, the equipment allows low-speed operation in confined spaces.
No load loss and no tipping at 2.5m lifting height
Fixed mast wire mesh guard: separates operators from loads and ensures operator safety.
Explosion-proof design of hydraulic system: even if the oil pipe bursts, the mast will not drop rapidly.
Emergency reverse travel function, enabling operators to avoid potential injuries.
A dual-chain structure was adopted for more stable lifting.
Automatic speed reduction during turning

Wheels:

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀230×75
Tyre size, rear	⌀×w (mm)	⌀80×60
Balance wheel	⌀×w (mm)	⌀115×55
Wheels, number front/rear (x=drive wheels)		1x, 2/4

Performance:

Travel speed, laden/unladen	(km/h)	5.5/6
Lifting speed, laden/unladen	(mm/s)	75/125
Lowering speed, laden/unladen	(mm/s)	95/100
Max. gradeability, laden/unladen	%	5/8
Service brake		Electromagnetic

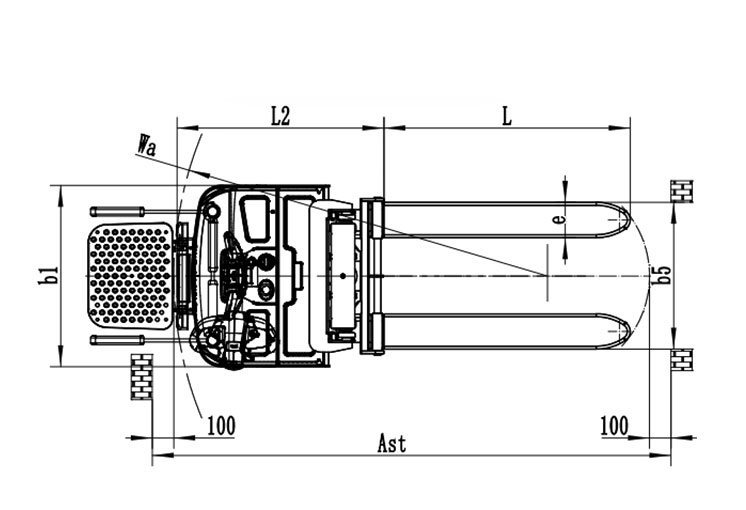

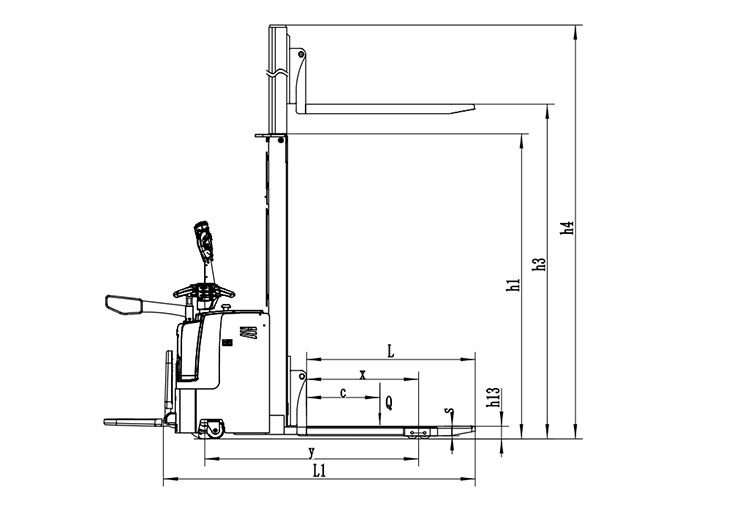

Dimensions:

Lowered height	h13 (mm)	88
Height, mast lowered	h1 (mm)	2080	1580/1830/1980/2330/2580
Height, mast extended	h4 (mm)	2080	2568/3068/3483/4068/4568
Overall length	L1 (mm)	2125
Length to face of forks	L2 (mm)	965
Overall width	b1/b2 (mm)	850
Fork dimensions	s/e/l (mm)	55/165/1150
Fork spread	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	30
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2608
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2536
Turning radius	Wa (mm)	1744

Motor and Battery:

Drive motor rating S2 60 min	（kw)	2.2
Lift motor rating at S3 15%	（kw)	2.2
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	24/210
Battery weight	（kg)	180

Others：

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Electronic

Option：

Curtis controller

150/200Ah Lithium battery
