CDD30E

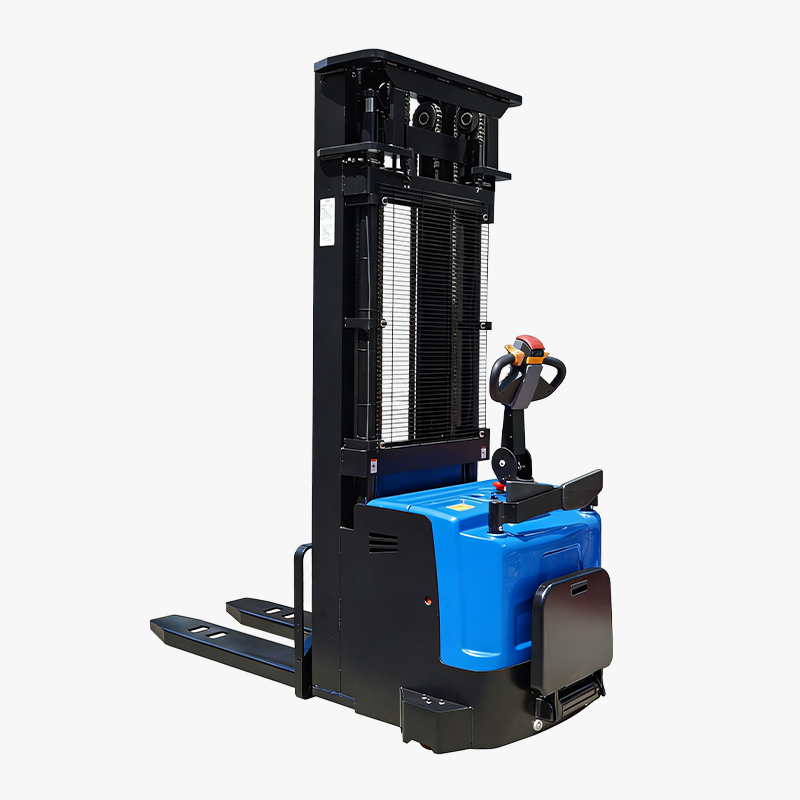

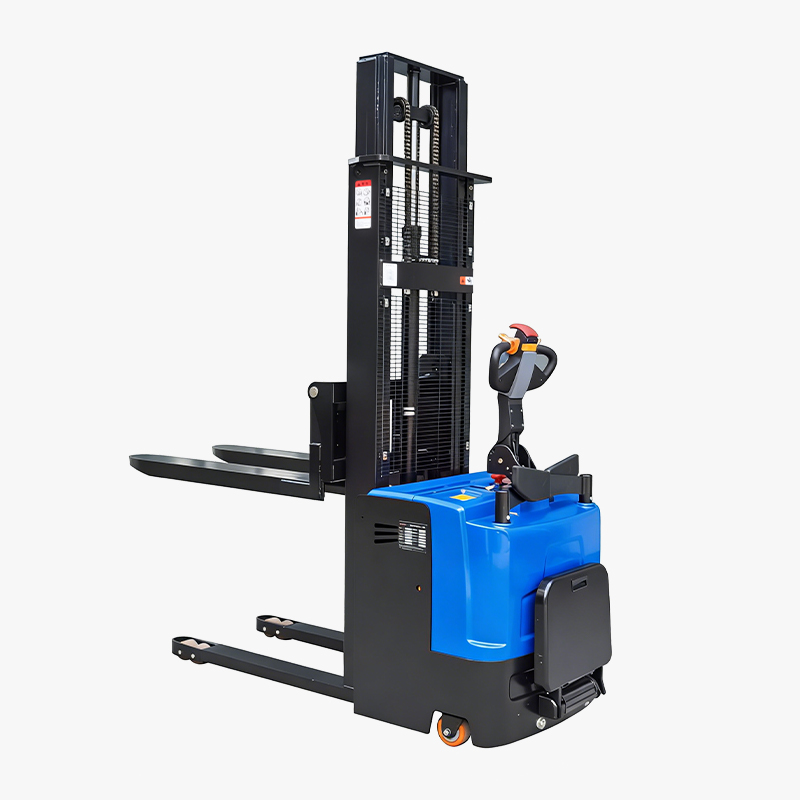

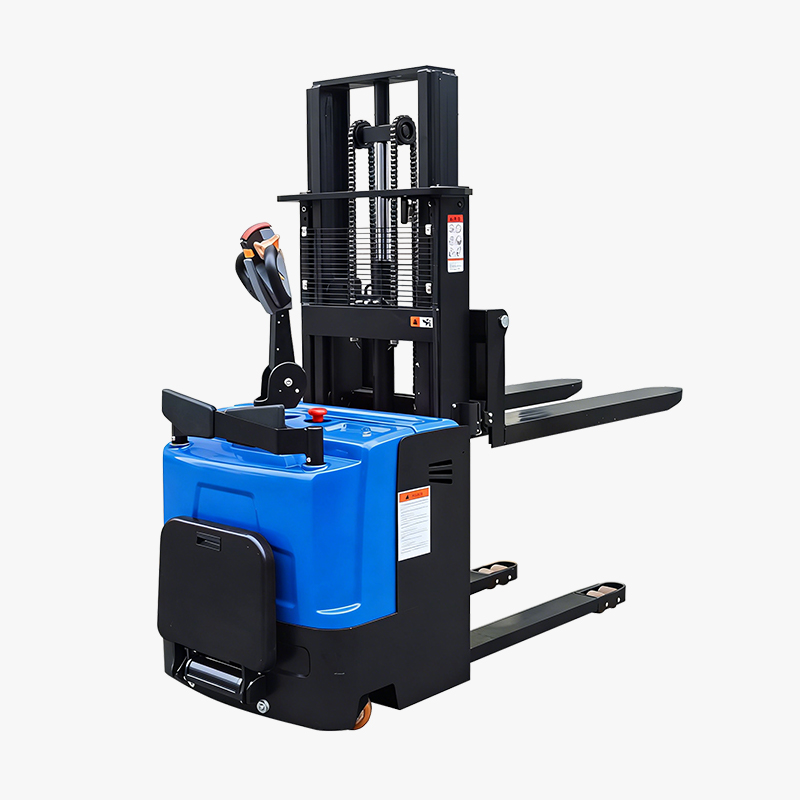

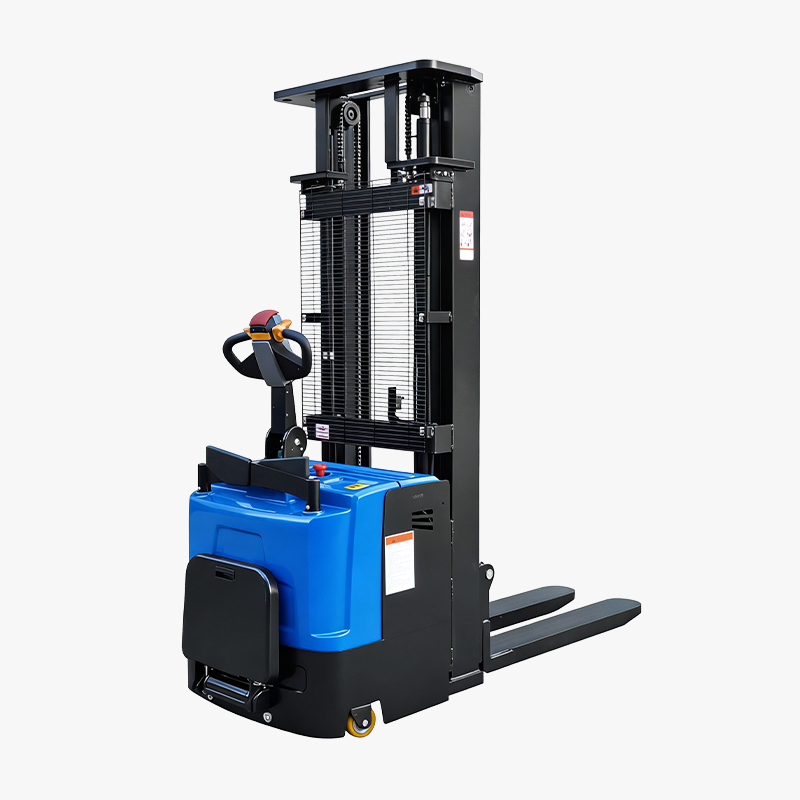

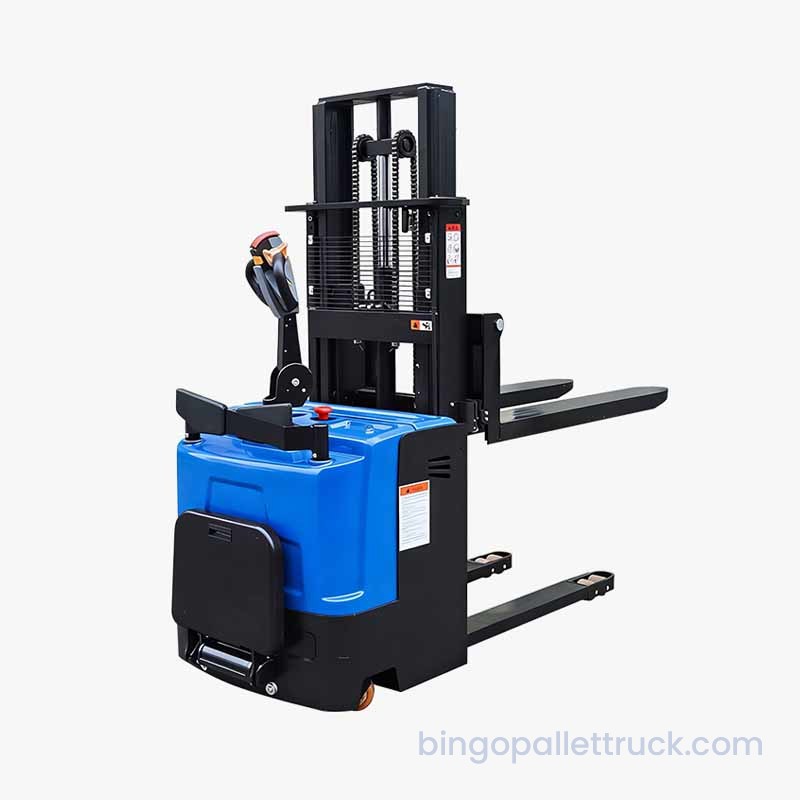

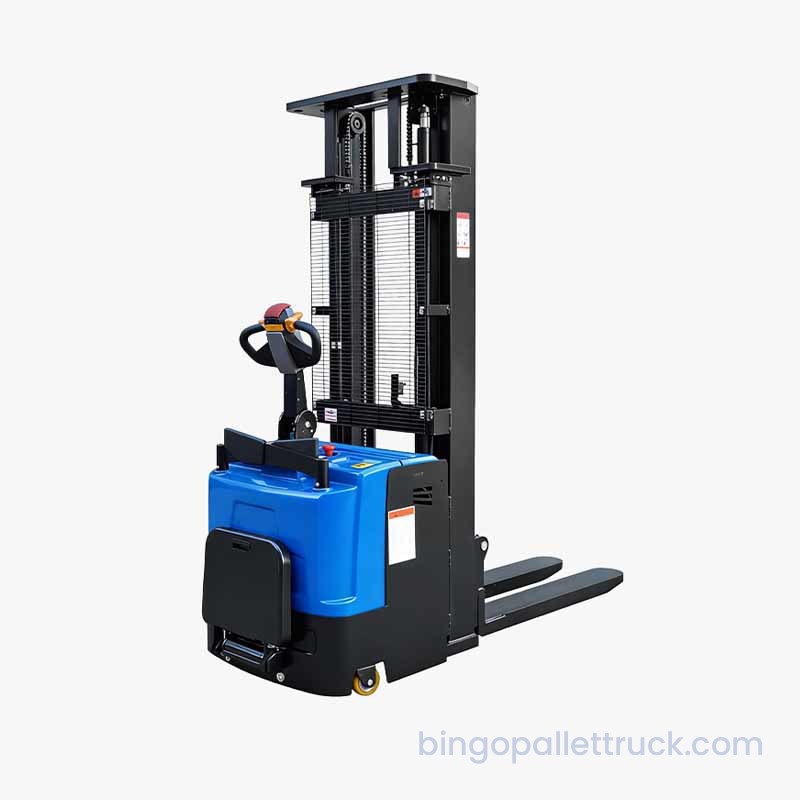

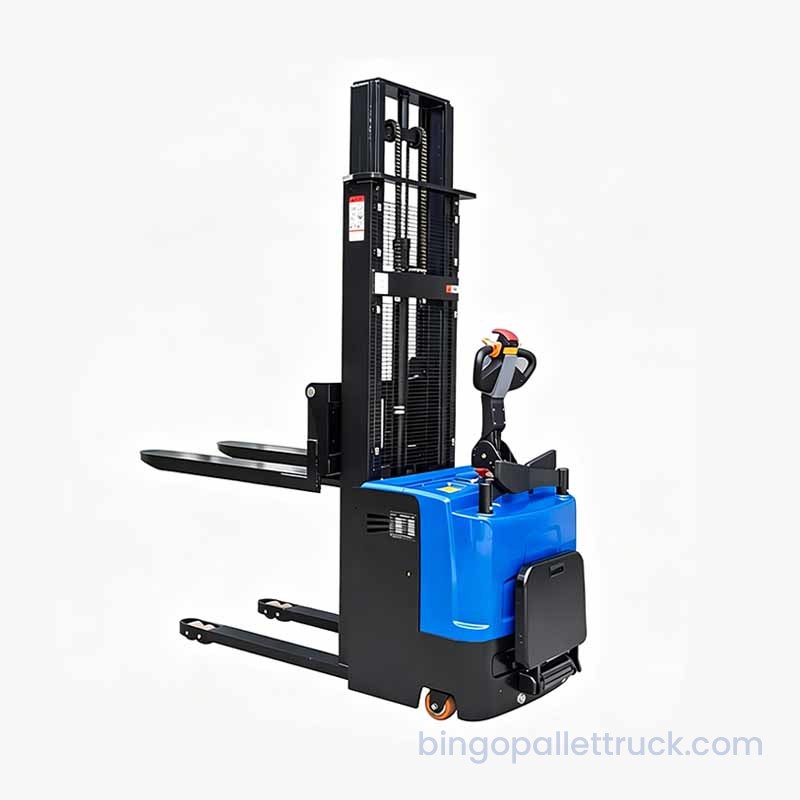

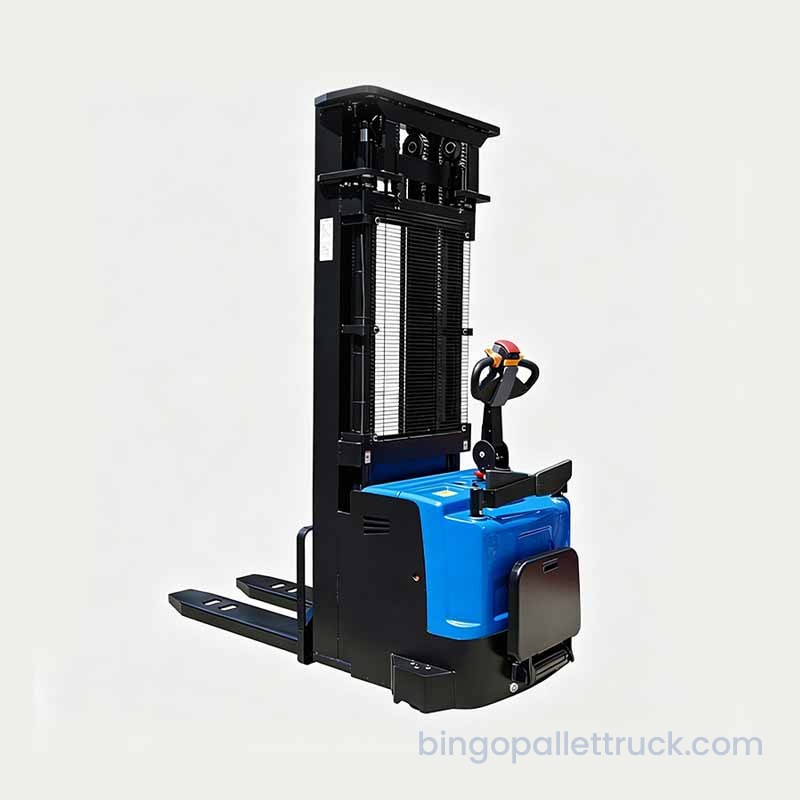

3000kg EPS Electric Stand-on Stacker

Characteristics：

Model		CDD30E
Operator type		Stand-on
Rated load capacity	Q (kg)	3000
Mast type		One-stage	Two-stage
Lift height	h3 (mm)	1600	2000/2500/3000/3500
Service weight	kg	1473	1517/1561/1605/1649
Load center distance	c（mm)	500
Front overhang	x (mm)	795
Wheelbase	y (mm)	1510
Controller		LVM24S35

You are here: Products / Electric Stacker / 3000kg EPS Electric Stand-on Stacker

Request a Quote

Advantages Detailed Specs

Equipped with EPS electronic power steering, ensuring low-effort operation.
After folding the pedal, the equipment allows low-speed operation in confined spaces.
No load loss and no tipping at 2.5m lifting height
Fixed mast wire mesh guard: separates operators from loads and ensures operator safety.
Explosion-proof design of hydraulic system: even if the oil pipe bursts, the mast will not drop rapidly.
Emergency reverse travel function, enabling operators to avoid potential injuries.
A dual-chain structure is adopted for more stable lifting.
Automatic speed reduction during turning

Wheels:

Tyre type		PU
Tyre size, front	⌀×w (mm)	⌀254×100
Tyre size, rear	⌀×w (mm)	⌀85×85
Balance wheel	⌀×w (mm)	⌀115×55
Wheels, number front/rear (x=drive wheels)		1x, 2/4

Performance:

Travel speed, laden/unladen	(km/h)	5.0/5.5
Lifting speed, laden/unladen	(mm/s)	80/85
Lowering speed, laden/unladen	(mm/s)	80/67
Max. gradeability, laden/unladen	%	5/7
Service brake		Electromagnetic

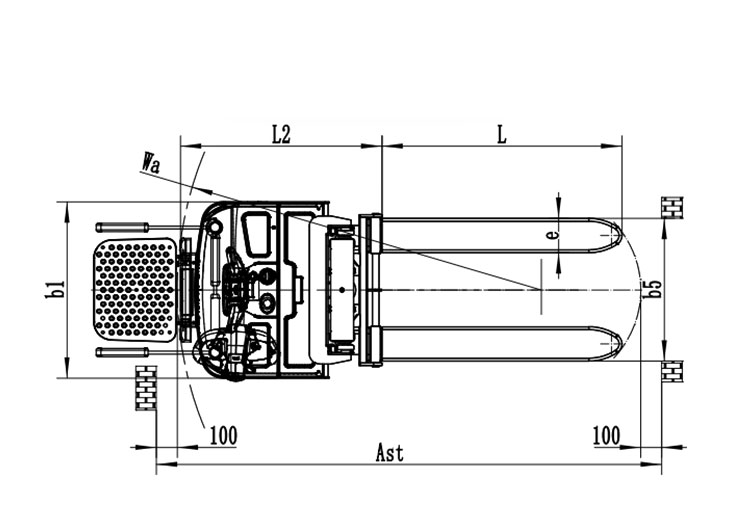

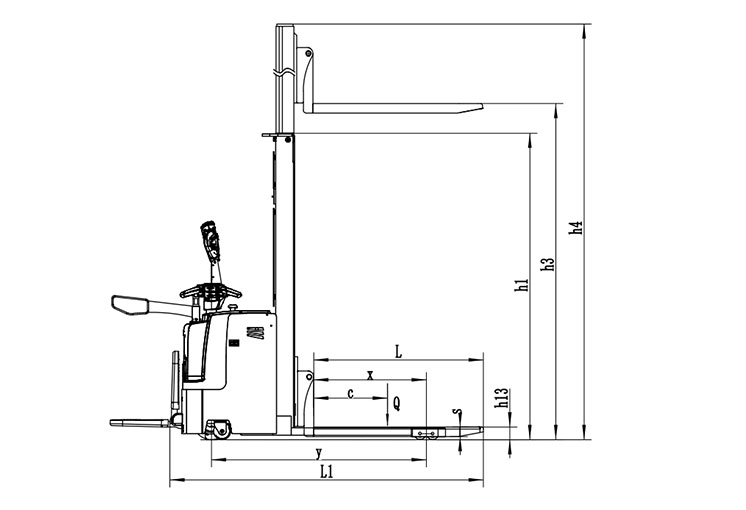

Dimensions:

Lowered height	h13 (mm)	≤95
Height, mast lowered	h1 (mm)	2220	1575/1825/2075/2325
Height, mast extended	h4 (mm)	2220	2520/3020/3520/4020
Overall length	L1 (mm)	2195
Length to face of forks	L2 (mm)	1030
Overall width	b1/b2 (mm)	955
Fork dimensions	s/e/l (mm)	65/180/1150
Fork spread	b5 (mm)	685
Ground clearance, center of wheelbase	m2 (mm)	28
Aisle width for pallets 1000×1200 crossways	Ast (mm)	2676
Aisle width for pallets 800×1200 lengthways	Ast (mm)	2609
Turning radius	Wa (mm)	2240

Motor and Battery:

Drive motor rating S2 60 min	（kw)	3
Lift motor rating at S3 15%	（kw)	3
Battery type		Lead-acid
Battery voltage/nominal capacity	（V/Ah)	24/280
Battery weight	（kg)	240

Others：

Sound pressure level at the driver's ear	dB (A)	69
Steering design		Electronic

Option：

150/200Ah Lithium battery
